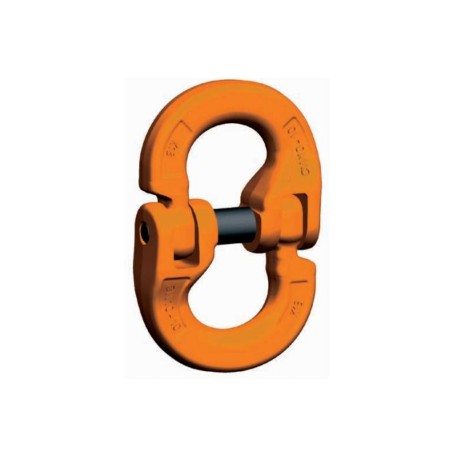

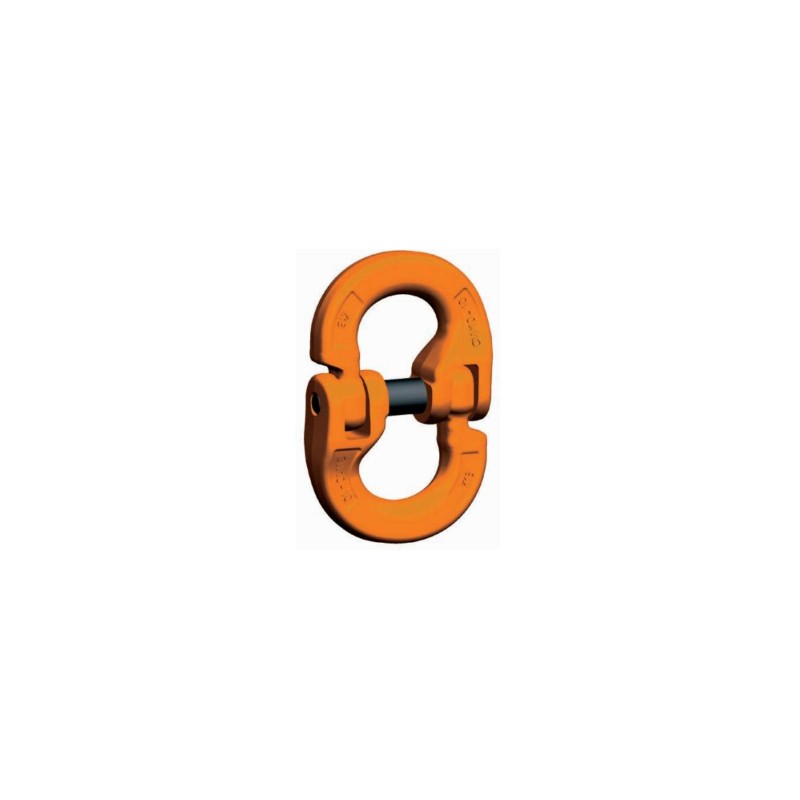

PEWAG CW Connex connecting link
The universal CW Connex connectiong link consists of two symmetrical, die-forged halves, one bolt and safety sleeve.
Price:
on demand
More info
The universal CW Connex connectiong link consists of two symmetrical, die-forged halves, one bolt and safety sleeve.
It links load:
- binder and hook
- master link and chain
- chain and chain
- chain and hook
- master link and hook
The connecting link can be assembled easily and guickly, without the need for special tools. It is manufactured according to EN 1677-1, with lashing capacity of G10 that exceeds that of G8 by no less than 25%.
Product combinations
| Model | Capacity WLL in kg |
|---|---|
| CW 5 | 1 000 |
| CW 6 | 1 400 |
| CW 7 | 1 900 |
| CW 8 | 2 500 |
| CW 10 | 4 000 |
| CW 13 | 6 700 |
| CW 16 | 10 000 |
| CW 19/20 | 16 000 |
| CW 22 | 19 000 |
| CW 26 | 26 500 |
| CW 32 | 40 000 |
