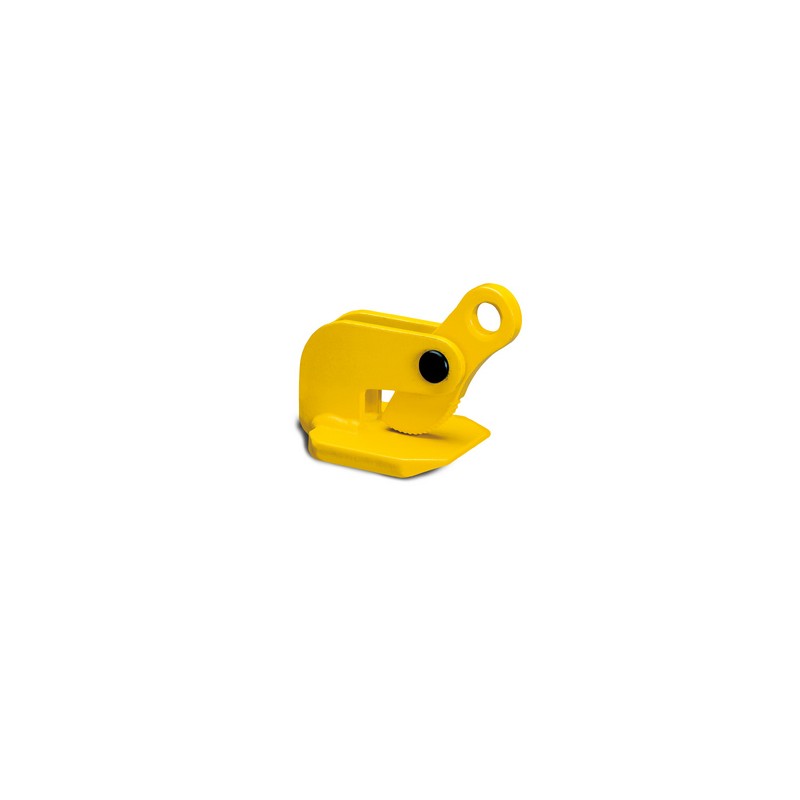

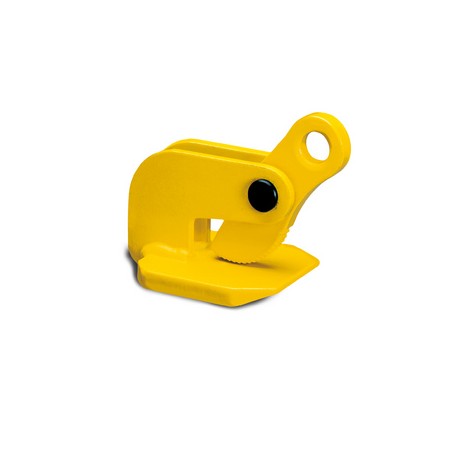

YALE THK Lifting clamp
Capacity 750 - 9000 kg
The THK lifting clamp, when used in pairs, is especially well-suited for horizontal transport of thin plates that have a tendency to sag.
Price:
on demand
More info
- The THK lifting clamp, when used in pairs, is especially well-suited for horizontal transport of thin plates that have a tendency to sag.
- It is normally used in combination with a two-legged chain sling.
- The capacity applies to a pair of lifting clamps.
Product combinations
| Model | Capacity WLL in kg | Jaw capacity, mm |
|---|---|---|
| THK 0,75 | 750 | 0 - 25 |
| THK 1,5 | 1 500 | 0 - 35 |
| THK 3,0 | 3 000 | 0 - 35 |
| THK 4,5 | 4 500 | 0 - 45 |
| THK 6,0 | 6 000 | 0 - 60 |
| THK 9,0 | 9 000 | 0 - 60 |
