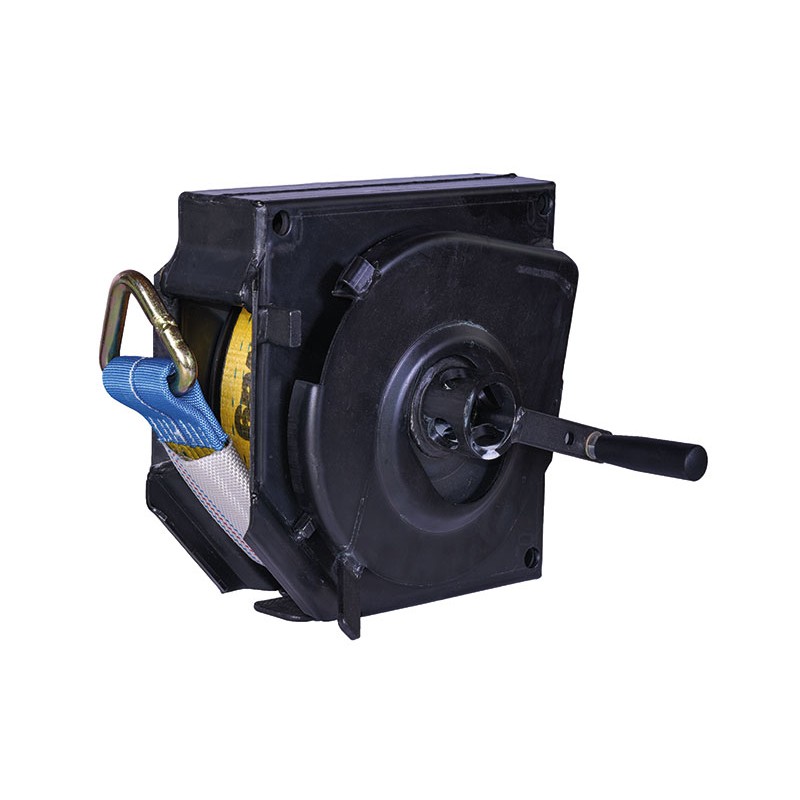

ZW / PEWAG ZW 50 x 10000 / 2500 Lashing winch View larger

PEWAG ZW 50 x 10000 / 2500 Lashing winch

Lashing winch ZW 50 x 10000 / 2500 incl. crank, for the securing of loads acc. to EN 12195.

More details

Price:

on demand

Data sheet

Webbing width, mm 50
Pulling force (LC) - direct lashing process 2 500 daN
Pulling force (LC) - strapping 5 000 daN

More info

Lashing winch ZW 50 x 10000 / 2500 incl. crank, for the securing of loads acc. to EN 12195.

  • Especially for the transport of long timber
  • Admissible lashing capacity (LC) for straight pull: 2,500 daN Version with tensioning rod or ratchet is available upon request
  • The standard version of the lashing winch comes with yellow, wear resistant webbing, protective sleeve for the labels and loop reinforcement

Direct lashing
Lashing strap is not designed for direct lashing.
For special applications, please contact our technical service department.

Order example:
ZW 50 x 10000 / 2500 D
lashing winch system 50 incl. crank and Delta link
Strap width 50 mm,
length lG = 10,000 mm

Product combinations

Model Length Standard tension force STF, daN
ZW 6 6 m 500
ZW 7 7 m 600
ZW 8 8 m 750
ZW 9 9 m 850
