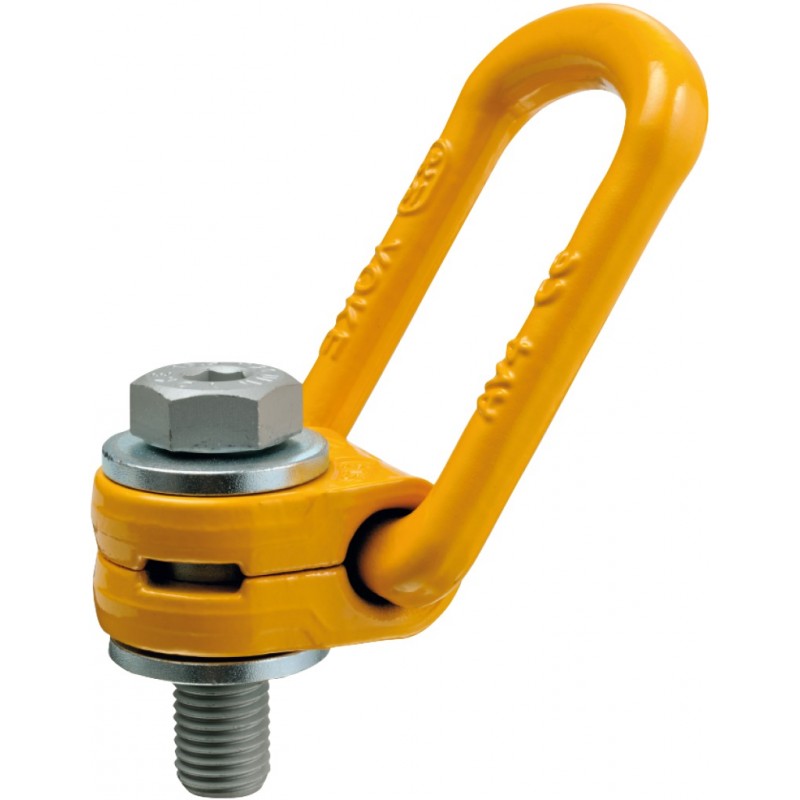

YOKE LBO Load ring

All YOKE Lifting points meet or exceed all the requirements of ASME B30.26. Quick and simple assembly, just a tapped hole is required.

More details

Price:

on demand

More info

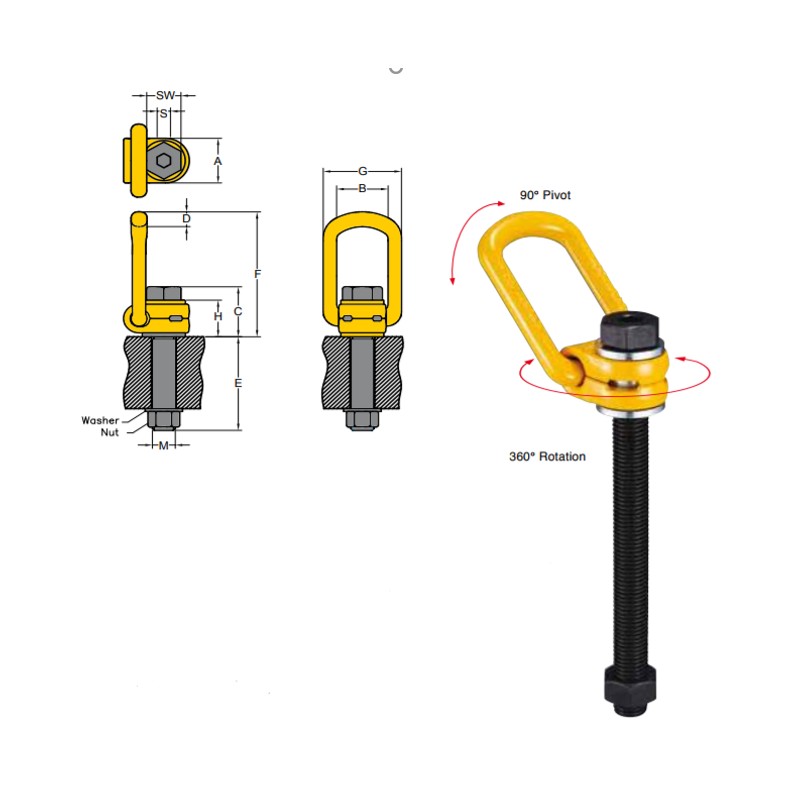

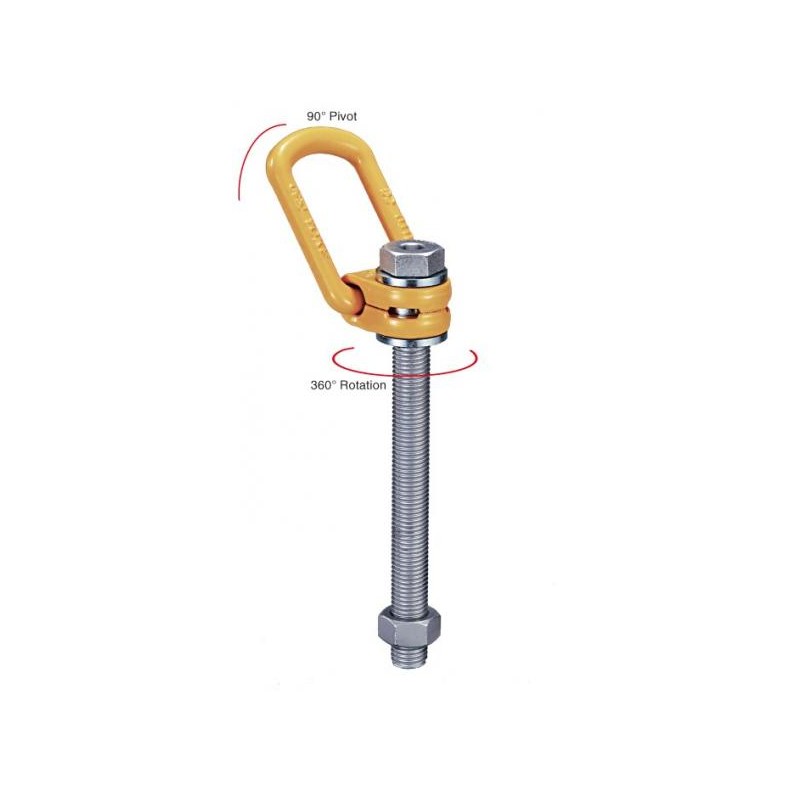

  • Rotates through 360° and pivot 180°.
  • Manufactured from alloy steel, quenched and tempered.
  • Manufactured and tested in accordance with EN1677-1.
  • Load rated parts are 100% magnaflux crack detected.
  • Individual forged parts and cap screw are traceable to Test Certification.
  • Bolts are Metric thread (ASME / ANSI B18.3.1M), specification is grade 12.9 alloy socket ead screw per DIN EN ISO 4762.
  • Individually proof tested to 2.5 times the WLL.
  • Fatigue rated to 1.5 times the WLL.
  • All YOKE Lifting points meet or exceed all the requirements of ASME B30.26.
  • Quick and simple assembly, just a tapped hole is required.

Product combinations

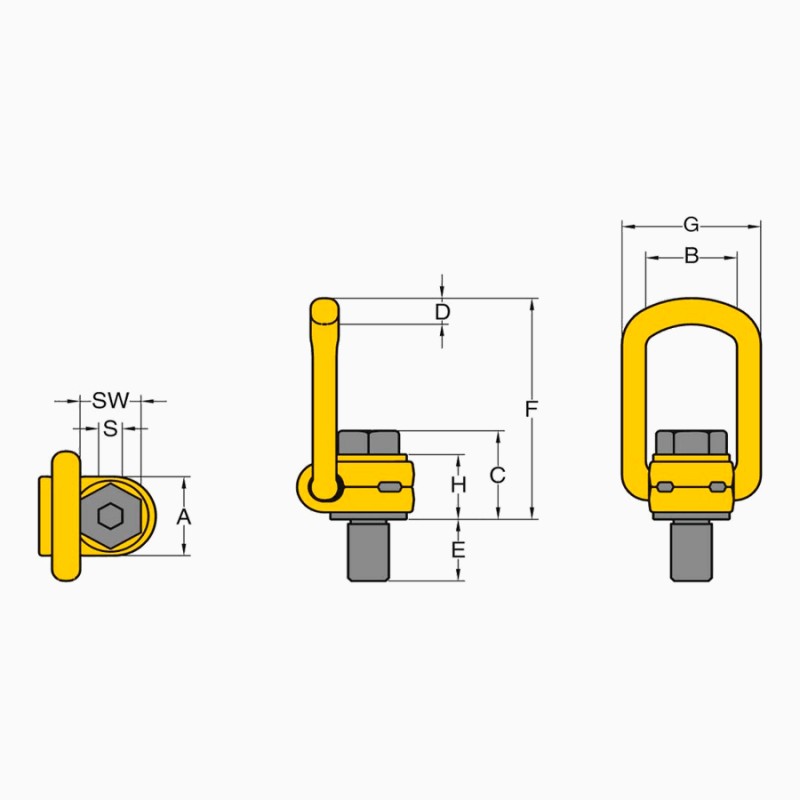

Model Diameter D&E Working load limit in t Thread length, mm Thread length maxi L, mm
LBO-M8 M8 0.3 11 76
LBO-M10 M10 0.63 16 96
LBO-M12 M12 1.0 18 114
LBO-M14 M14 1.2 24
LBO-M16 M16 1.5 24 149
LBO-M18 M18 2.0 26
LBO-M20 M20 2.5 30 186
LBO-M24 M24 4.0 36 221
LBO-M27 M27 4.0 38
LBO-M30 M30 5.0 48 278
LBO-M36 (x 62) M36 8.0 62 222
LBO-M42 (x 72) M36 10.0 72 272
LBO-M36 (x 54) M36 7.0 54
LBO-M42 (x 63) M42 15.0 63 264
LBO-M48 M48 20.0 72 295
