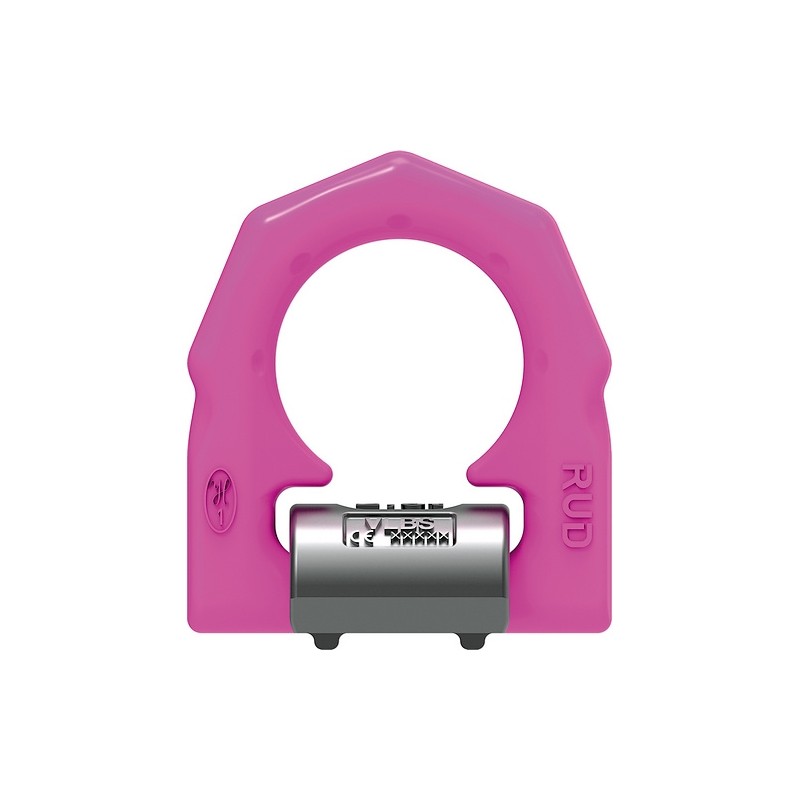

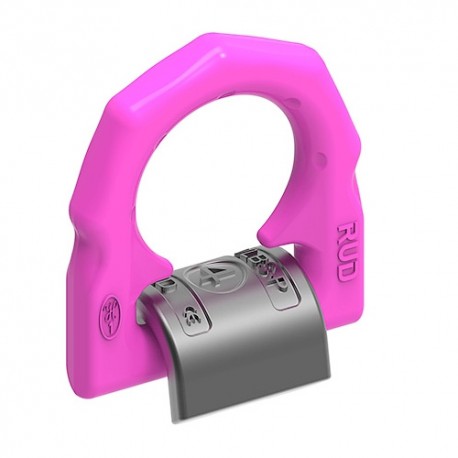

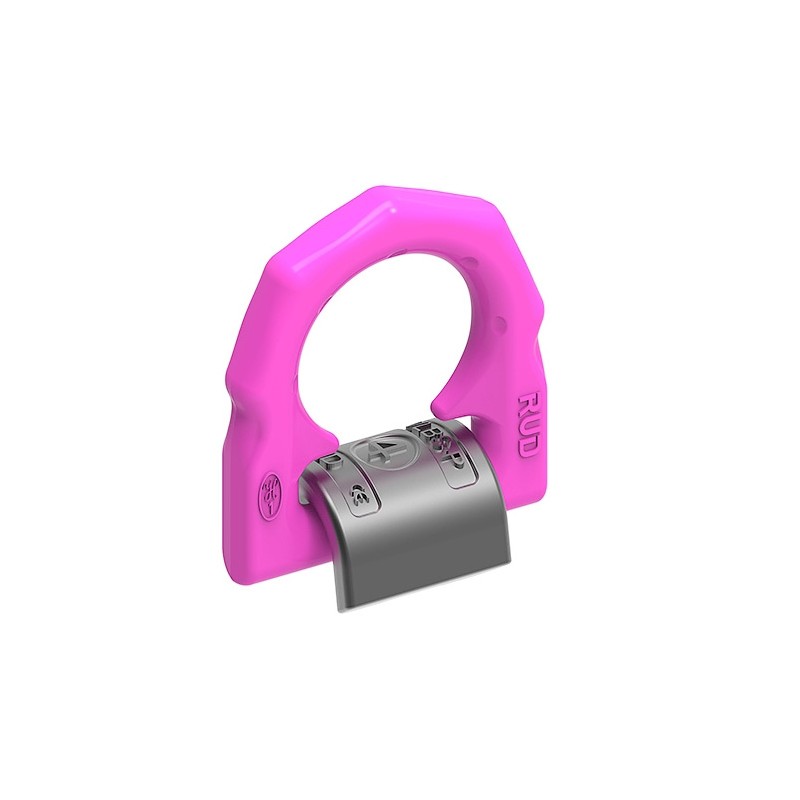

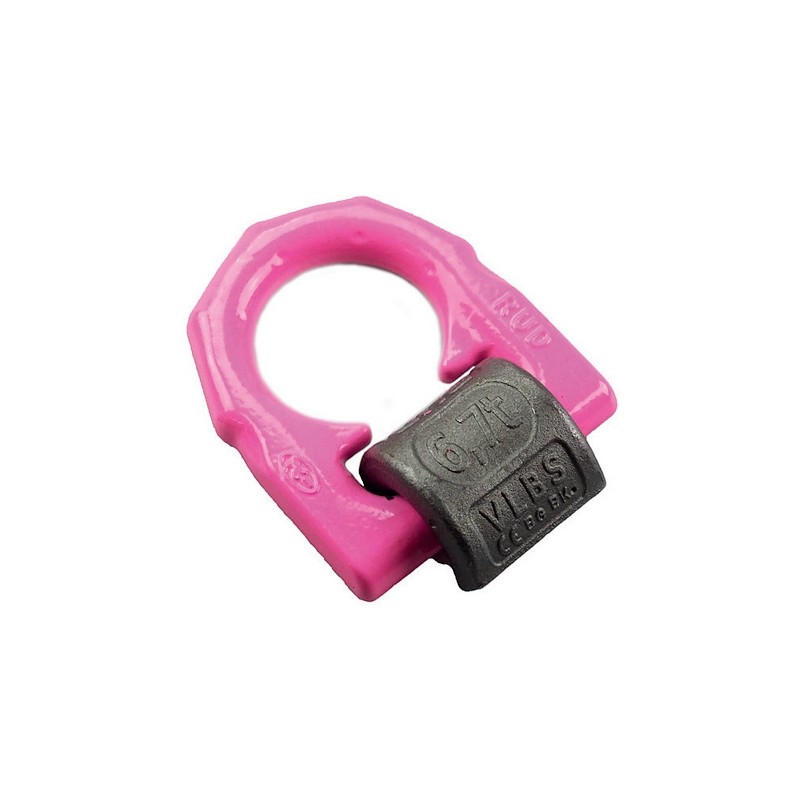

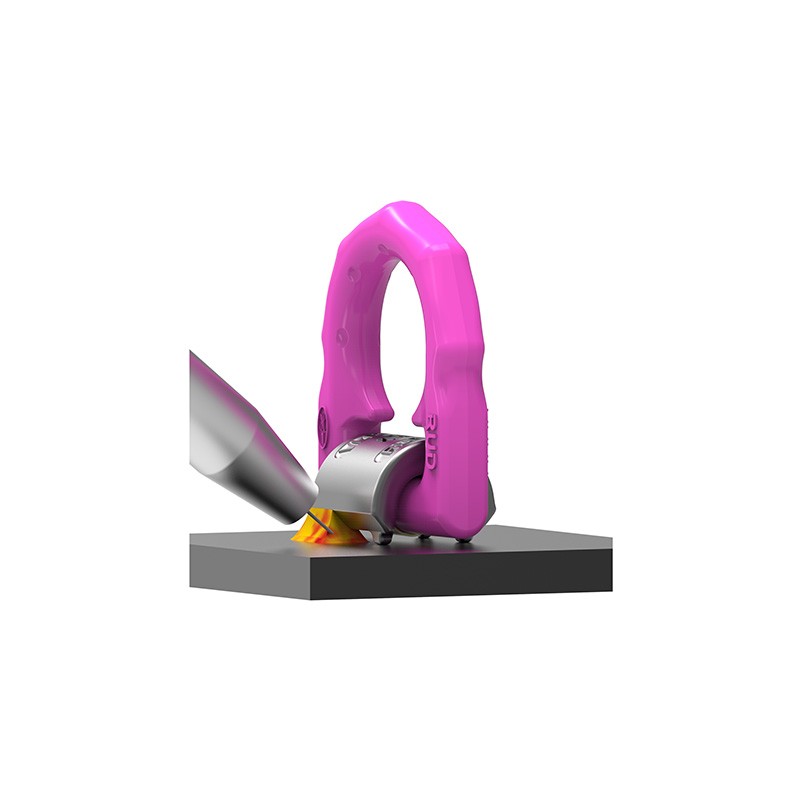

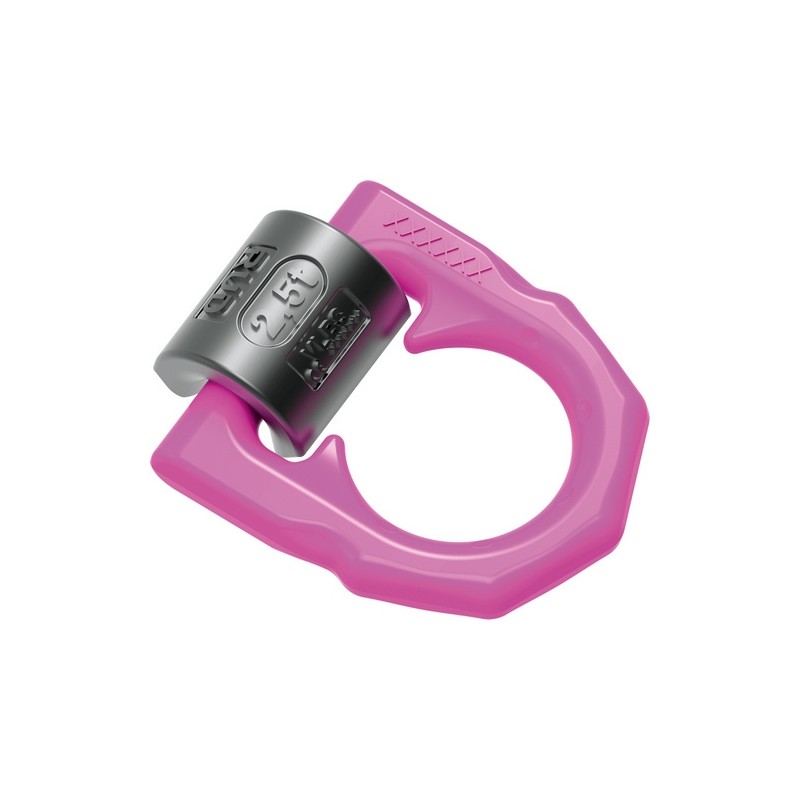

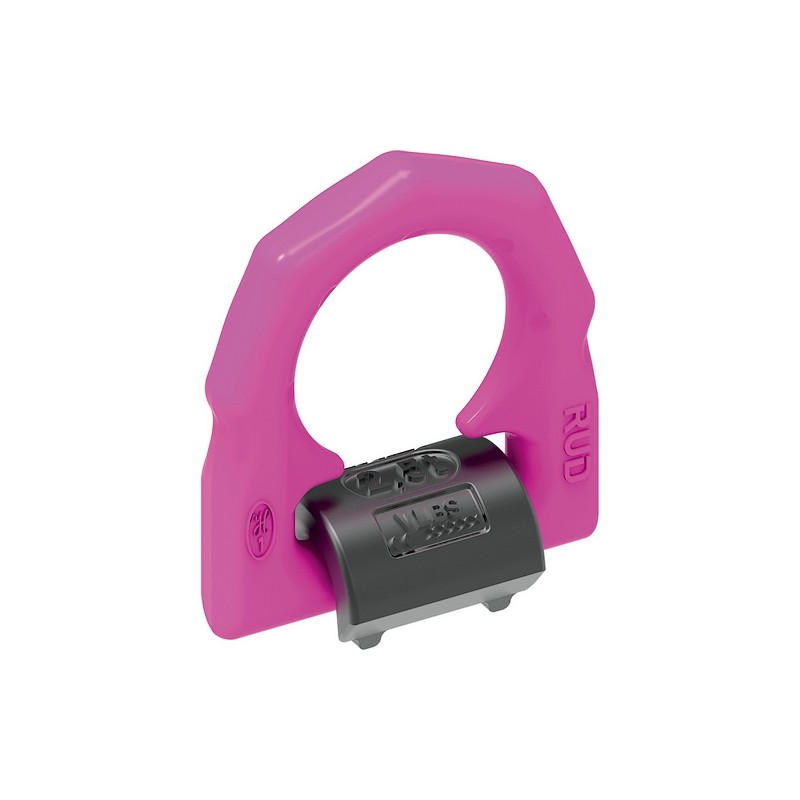

VLBS Load ring for welding - RUD

An enhancement of the well-established LBS with an up to 50% increment of the WLL! The new VLBS ring bracket is forged out of the high strength material CrNiMo with 2 patented inner supporting lugs. It provides an optimal sitting of the hook and offers better protection for the clamping springs.

WLBS-U with spring

More details

Price:

on demand

More info

  • An enhancement of the well-established LBS with an up to 50% increment of the WLL!
  • The new VLBS ring bracket is forged out of the high strength material CrNiMo with 2 patented inner supporting lugs. It provides an optimal sitting of the hook and offers better protection for the clamping springs. Given an inclined or a non - parallel welding surface, the support effect is extremely improved.
  • Pink powder coating both a VIP identification charachteristic and a heat indicator.The pink coated ring bracket is manufactured and tested according to EN 1677-1. The welding block is forged out of a good welding material 1.0577+N (St 52-3).

Product combinations

Model Capacity WLL in kg
VLBS-U 1,5 1 500
VLBS-U 2,5 2 500
VLBS-U 4 4 000
VLBS-U 6,7 6 700
VLBS-U 10 10 600
VLBS-U 16 16 000
