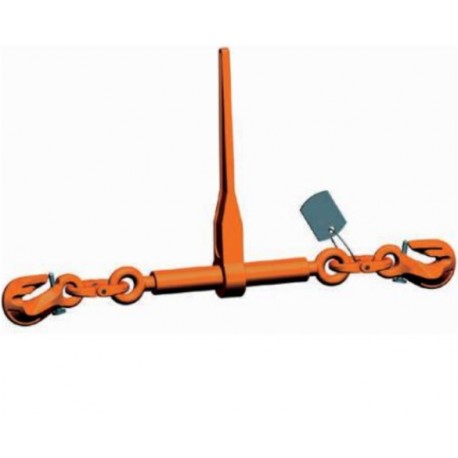

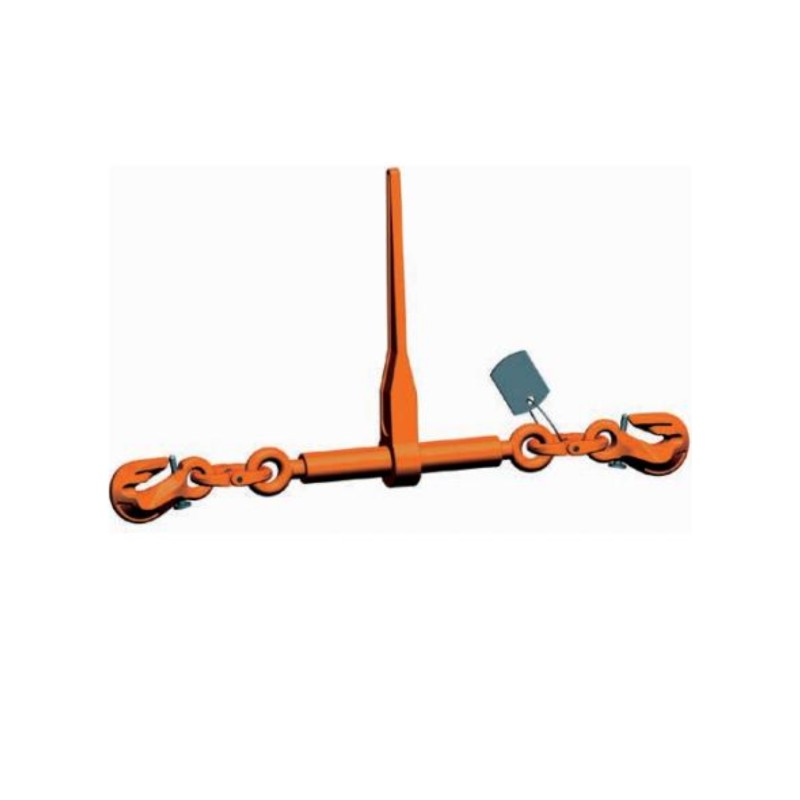

PEWAG RSPSW Load binder G10
This load binder for two-part lasching chain systems in accordance with EN 12195-3 is intended for the ZKW lashing chain-the two are alwazs used in conjunction. The shortening hook with the PSW safety catch is already assembled.
on demand
More info
This load binder for two-part lasching chain systems in accordance with EN 12195-3 is intended for the ZKW lashing chain-the two are alwazs used in conjunction. The shortening hook with the PSW safety catch is already assembled. Depending on the selected lever length. all sizes are also suitable for frictional lashing.
The lashing capacity is 25% higher than for grade 8. Thanks to the pre-mounted shortening hook, the RSPSW load binder may be positioned anywhere in the ZKW lashing chain.
As specified in the full operating manual, this load binder is not suitable for lifting or attaching loads.
Product combinations
| Model | Lashing capacity, kN | Standard tension force STF, daN |
|---|---|---|
| RSPSW 8 | 50 | 1 900 |
| RSPSW 10 | 80 | 3 000 |
| RSPSW 13 | 134 | 2 500 |
