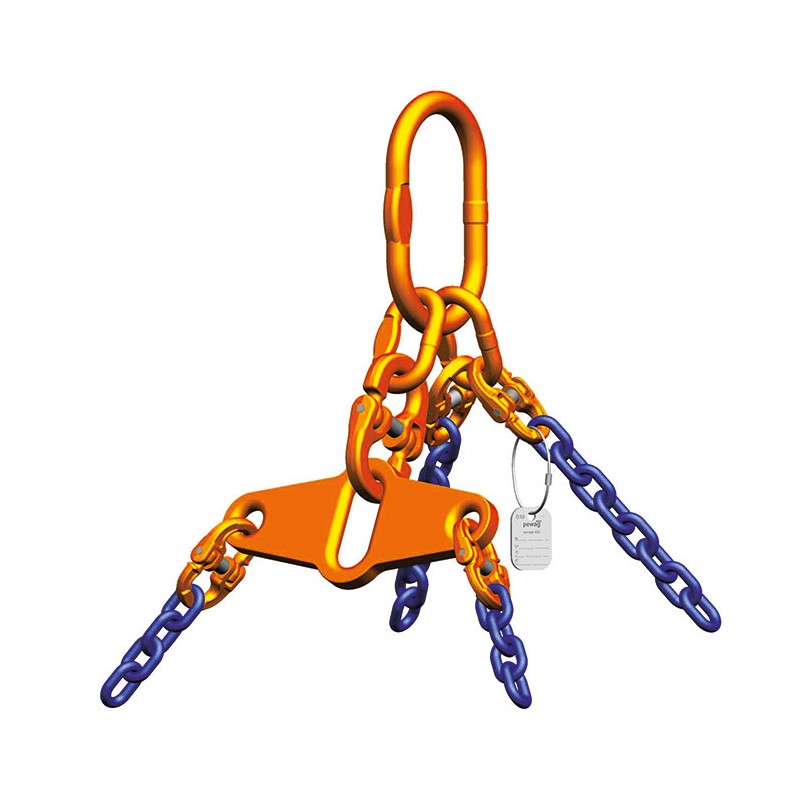

PEWAG AGWW load distributor
Load distributors for maximum load capacity for pewag winner connex system
Price:
on demand
More info
Load distributors for maximum load capacity for pewag winner connex system.
Application:
- For 4-leg chain slings to optimize the weight distribution
- For two 2-leg chain slings – minimum one is using the load distributor
Advantages:
- Increasing the load capacity of 4-leg chain slings
- Patent-pending load distributor
- In case of wear turning by 180° enables double life time
- Load capacity up to 75,000 kg (up to 26 mm)
- Cost effectiveness
- Chain slings in G10 using the load distributor always replace chain slings in G8 of the next bigger size without load distributor
- In some cases downsizing in chain diameter by one dimension within G10 is possible
Product combinations
| Model | Capacity WLL 0° - 45° (kg) | Capacity WLL 45° - 60° (kg) |
|---|---|---|
| AGWW 5/6 | 2 000 | 1 400 |
| AGWW 7/8 | 3 550 | 2 500 |
| AGWW 10 | 5 600 | 4 000 |
| AGWW 13 | 9 500 | 6 700 |
| AGWW 16 | 14 000 | 10 000 |
| AGWW 19/20 | 20 000 | 14 000 |
| AGWW 22 | 26 500 | 19 000 |
| AGWW 26 | 37 500 | 26 500 |
