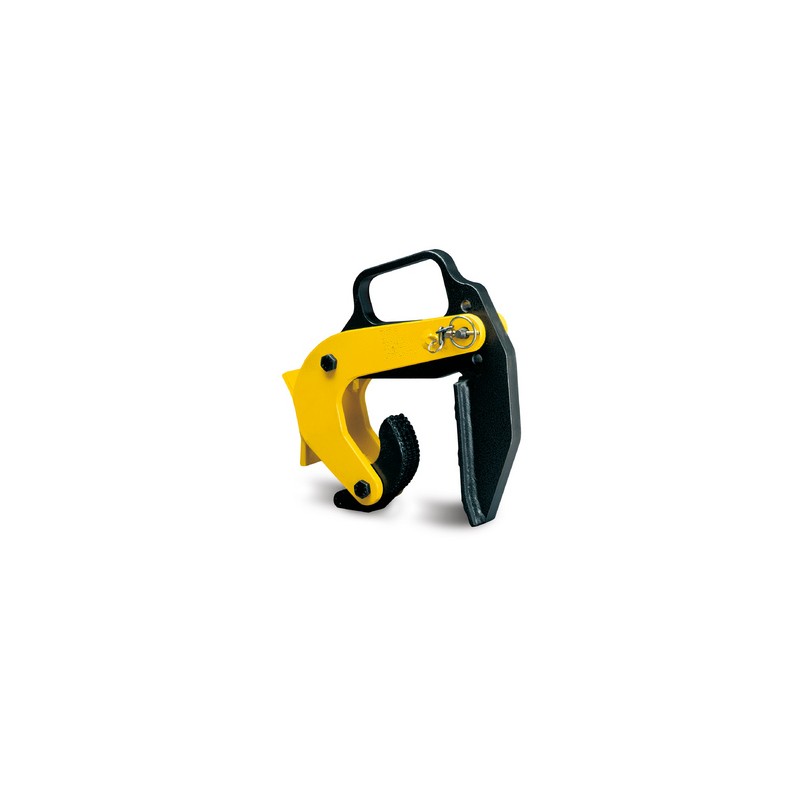

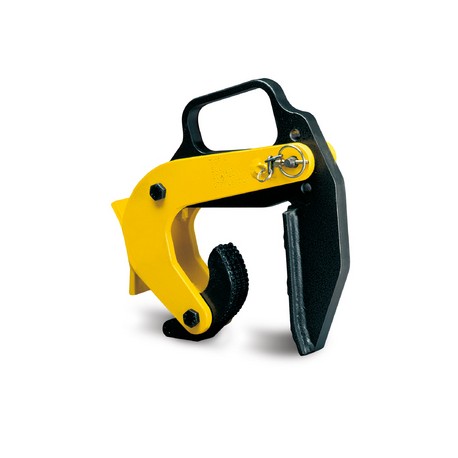

YALE BTG Concrete pipe lifting gear

• Lifting gear for the vertical transport of concrete pipe and culverts must be very versatile.
• Most important, it must be absolutely safe and easy to handle under even the harshest conditions.
• The Tigrip concrete pipe lifting gear meets all these requirements.
• It is a three legged lifting system for the safe and non-marring transport of concrete pipes up to a diameter of Ø 2000 mm and a load of up to 3 t.
• The jaw capacity is designed for concrete pipe thicknesses from 40 - 220 mm.
• Attachment and removal of the clamps can be done easily due to the handles that have been incorporated into each clamp.
• For concrete pipes according to DIN 4034.
• Lifting gear for concrete pipe up to a diameter of Ø 3000 mm available on request.

Features

•  Solid design
•  Safety factor 4:1
•  Simple and safe handling
•  Large jaw capacity
•  For the toughest operating conditions
•  Lightweight design
•  Service-friendly
