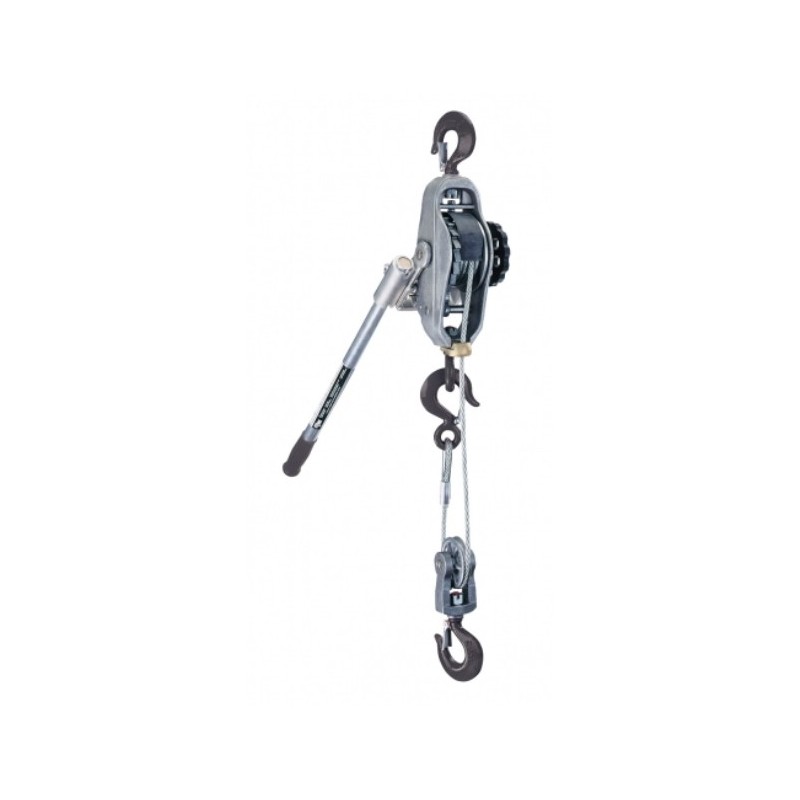

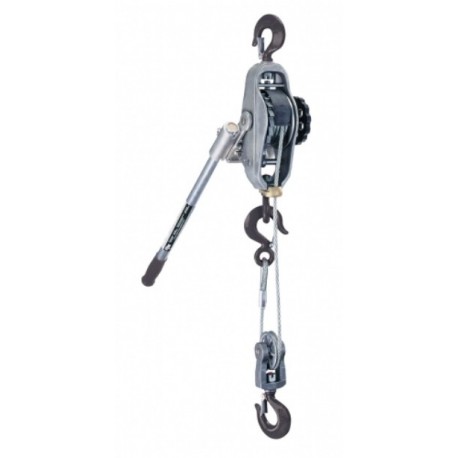

LM Cable puller  YALE View larger

YALE LM Cable puller

Pulling force 500 - 1 800 kg

The use of aluminium alloy castings provide a light-weight, corrosion resistant unit for pulling and tensioning applications. The double interlocking pawl system ensures safe function, all load bearing shaf ts are mounted on prelubricated bearings to reduce wear.

More details

Price:

on demand

More info

The use of aluminium alloy castings provide a light-weight, corrosion resistant unit for pulling and tensioning applications. The double interlocking pawl system ensures safe function, all load bearing shaf ts are mounted on prelubricated bearings to reduce wear.

Features

  • All springs and shafts are manufactured from stainless steel. The lifting medium is a non-twisting, galvanized, special steel wire rope.
  • The hooks are fitted with safety latches and are free to rotate 360°.
  • The cable puller LM can be used in single or double legged configuration. In double legged configuration the pulling force is doubled and the lifting height is halved.

Product combinations

Model 1 / 2 legged design pulling force (daN) 1 / 2 legged design hook path (m)
434 WN VB 500 / 1 000 9,0 / 4,5
115 D VB 500 / 1 000 4,6 / 2,3
202 WN VB 500 / 1 000 6,0 / 3,0
S 434 WN VB 700 / 1 400 6,0 / 3,0
S 404 WN VB 900 / 1 800 5,2 / 2,6
