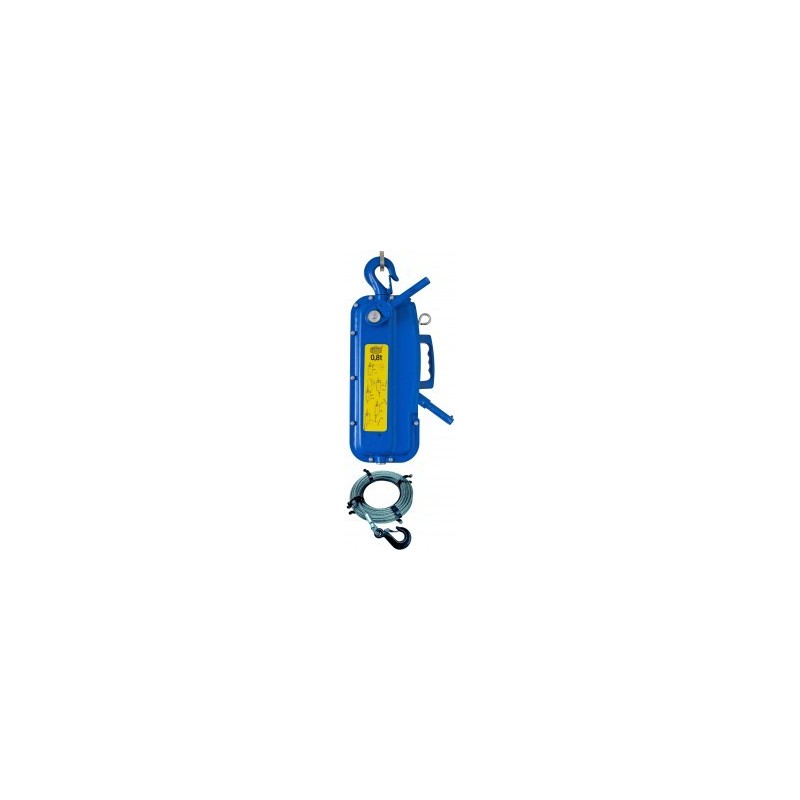

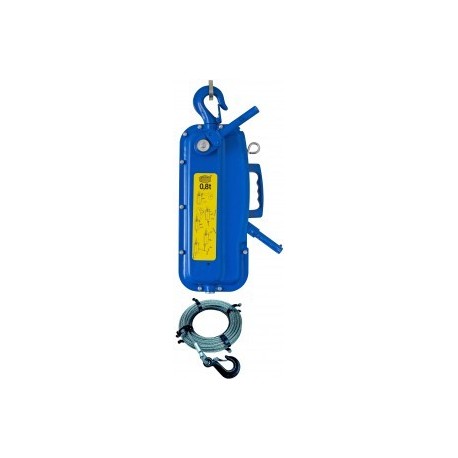

BRANO Rope hoist
Three loading capacities and the option of selecting a rope length
Price:
on demand
More info
Use:
Wide range of use particularly in construction, agriculture, forestry, transport, etc., for example:
- for lifting and towing loads in all directions
- for extricating items, demolishing buildings
- for putting up posts, installing electrical wiring, tensioning returnable rope car pulleys
- in logging
- for installation and manipulation work of all types
Properties:
- simple construction, portable
- the option of manipulating loads at various distances
- easy transport
- easy and safe use
- safety device against overloading
- long service life
- telescopic control lever
- fulfils the requirements of standard EN 13157
Hoists are supplied without a rope.
Ropes are supplied separately, coiled onto a rope drum. Choice of 10, 20, 30 and 40m rope lengths.
Longer ropes to order.
| Type | Type Lifting capacity (t) | Lifting 1) speed (m/min) | Operating force on lever (N) | Main dimensions (mm) | Hmotnost (kg) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| a | b max | c | d | d1 | e | e1 | |||||
| 30-10 | 0,8 | 2 | 250 | 535 | 300 | 125 | 36 | 32 | 23,5 | 23,5 | 11,1 |
| 30-00 | 1,6 | 2 | 450 | 630 | 360 | 155 | 43 | 46 | 32,5 | 32,5 | 19,2 |
| 30-11 | 3,2 | 0,45 0,84 |
380 (B) 750 (A) |
680 | 410 | 140 | 28 | 64 | 47 | 45,5 | 33,5 |
| 1) Calculated on presumption 35 swings by lever per minute 2) A – higher lifting speed B – lower lifting speed Hoist of lifting capacity 3,2t has hinge pin instead of hook |
|||||||||||
Product combinations
| Model | Capacity WLL in kg |
|---|---|
| 30-10 | 800 |
| 30-00 | 1 600 |
| 30-11 | 3 200 |
