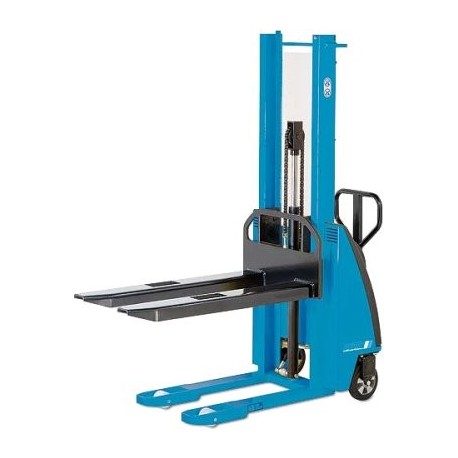

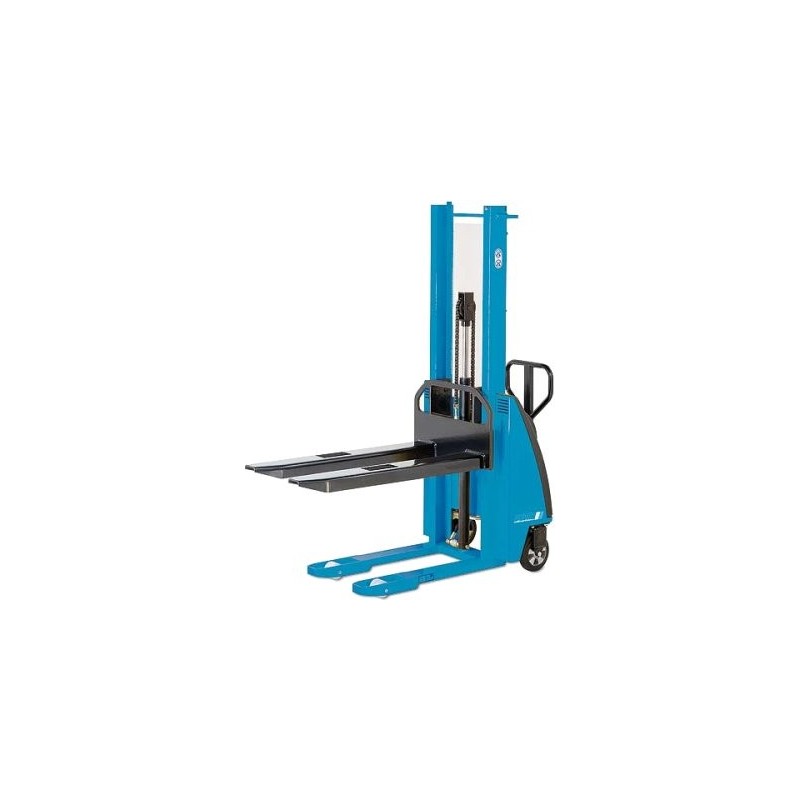

EHH PSE Manual drive stacker with electric-hydraulic lift PFAFF silberblau
Capacity 1 000kg, fork height max. 3 000mm
Suitable for occasional to medium applications of stacking and transporting palletized loads, also for use in confined areas and for short distances.
Price:
on demand
More info
Suitable for occasional to medium applications of stacking and transporting palletized loads, also for use in confined areas and for short distances.
Features
- Good maneuverability and easy handling due to positive steering of the unit.
- Compact electric-hydraulic lifting device and overload protection.
- Finely metered lowering of load through pressure relief valve and adjustable lowering valve.
- Retention by parking brake.
- Robust frame with two load and two steer rollers.
- The maintenance free battery can be charged at any 230V plug socket.
Scope of delivery
- Battery and battery charger included.
Product combinations
| Model | Capacity WLL in kg | Scroll wheel, mm | Supporting wheels, mm | Fork width, mm | Fork length, mm | Overall width Fork, mm | Lifting height max. mm |
|---|---|---|---|---|---|---|---|
| EHH PSE 1025 | 1 000 | 180x50 | 74x70 | 180 | 1 100 | 570 | 2 500 |
| EHH PSE 1016 | 1 000 | 180x50 | 74x70 | 180 | 1 100 | 570 | 1 600 |
| EHH PSE 1030 | 1 000 | 180x50 | 74x70 | 180 | 1 100 | 570 | 3 000 |
