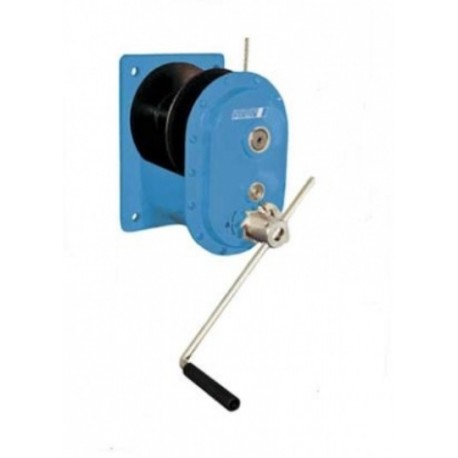

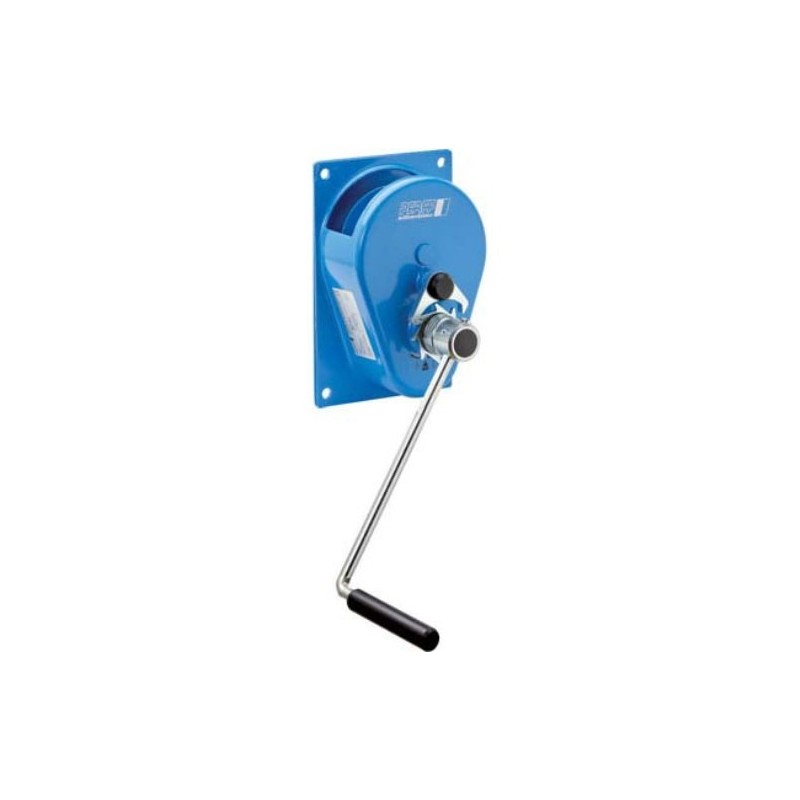

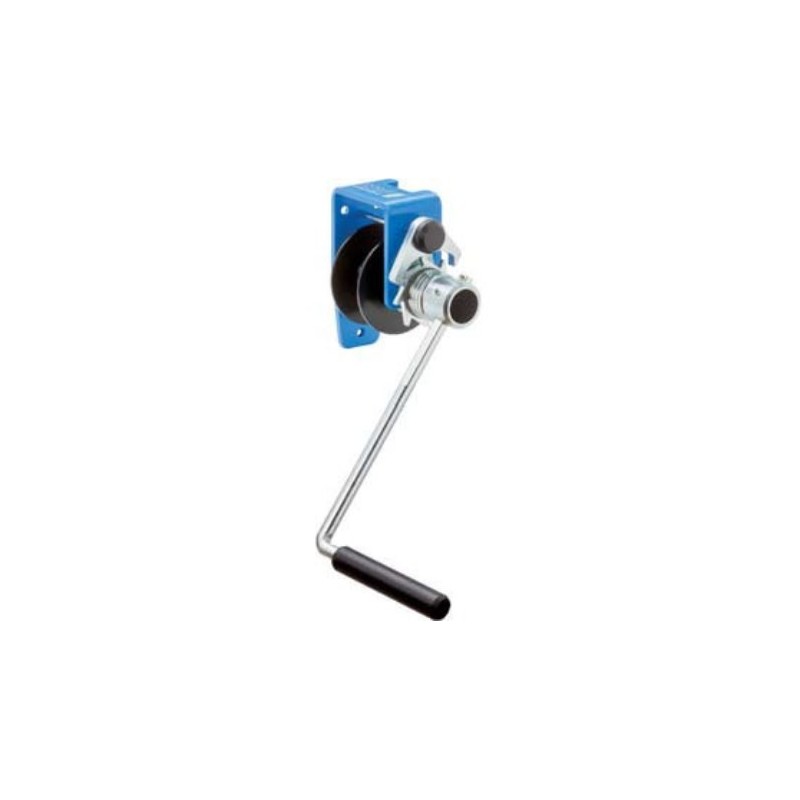

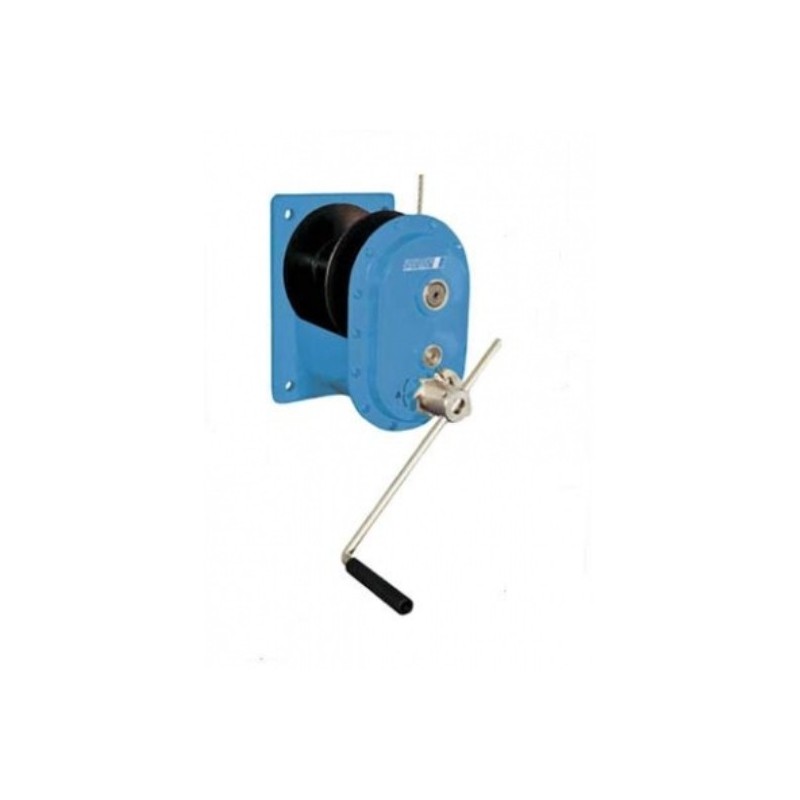

PFAFF MWS Manual winch with worm gear drive

Capacity 150 - 1 500 kg

For the operation where no electricity is available or in a dirty environment. Recommended rope diameter according to DIN 3060 FE-znk 1770 sZ-spa. The rope is not part of the delivery package.

More details

Price:

on demand

More info

For the operation where no electricity is available or in a dirty environment. Recommended rope diameter according to DIN 3060 FE-znk 1770 sZ-spa. The rope is not part of the delivery package.

  • Enclosed gear drive for protection of internal parts, even under tough working conditions.
  • Spur gears on roller bearings, rope drum on plain bearings.
  • Compact design.
  • Easy and quick mounting onto walls, poles etc.
  • They have a self-locking, anti-kickback and adjustable crank handle for fast lifting of smaller loads, resulting in lowest possible handle effort and rapid winding of the rope.
  • Automatic load pressure brake for safe holding and extremely sensitive lowering of the load. Unintentional brake release is prevented even with swinging loads.
  • They are suitable for operation in ambient temperatures of -20° up to +40° C.

 Option

  •  Corrosion resistant version

Product combinations

Model Capacity 1. layer in kg Capacity top layer in kg
MWS 150 150 68
MWS 300 300 166
MWS 600 600 308
MWS 1000 1 000 587
MWS 1500 1 500 844
