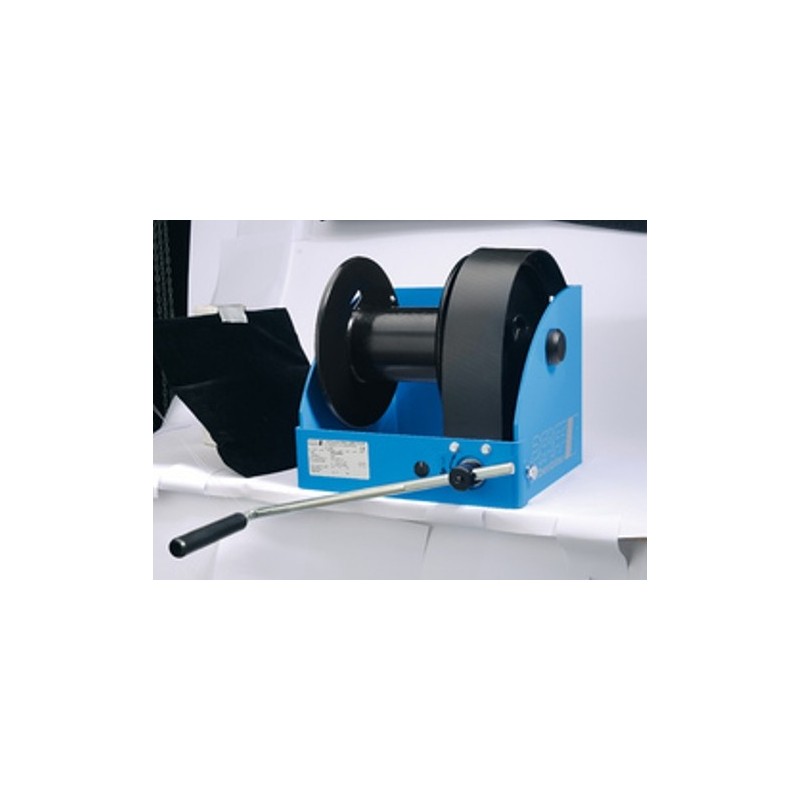

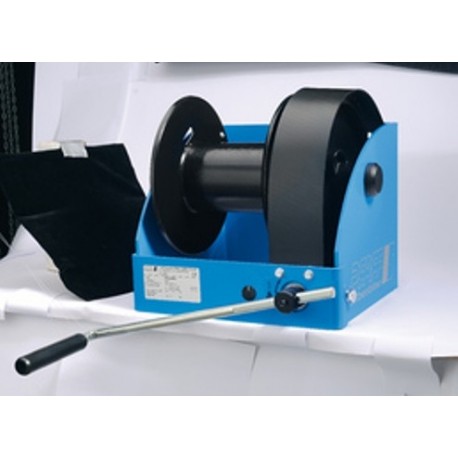

PFAFF SW-E-SGO Wall-mounted winch
Capacity 250 - 5 000 kg
Wall-mounted winch with worm gear drive and load pressure brake for efficient lifting of heavy loads.
Price:
on demand
More info
Wall-mounted winch with worm gear drive and load pressure brake for efficient lifting of heavy loads.
Features
- Housing and rope drums made out of robust steel plate.
- Worm gear drive with additional load pressure brake for safe holding of the load.
- Roller bearings ensure smooth running of the rope and increased lifetime of the winch.
- Second speed for fast lifting of smaller loads, resulting in lowes t possible handle effort and rapid winding of the rope (for capacitites of 2000 kg and above).
- Large drum capacity with two rope outlets.
- Variable crank with adjustable crank handle for capacities up to 1500 kg.
- Easy and quick mounting.
Options
- Corrosion resistant version
- Drum with separation web for operation with several ropes.
- Grooved rope drum for improved guidance of the rope.
Product combinations
| Model | Capacity 1. layer in kg | Capacity top layer in kg |
|---|---|---|
| SGO 250 | 250 | 100 |
| SGO 500 | 500 | 238 |
| SGO 1000 | 1 000 | 500 |
| SGO 1500 | 1 500 | 850 |
| SGO 2000 | 2 000 | 1 100 |
| SGO 3000 | 3 000 | 2 000 |
| SGO 5000 | 5 000 | 3 300 |
