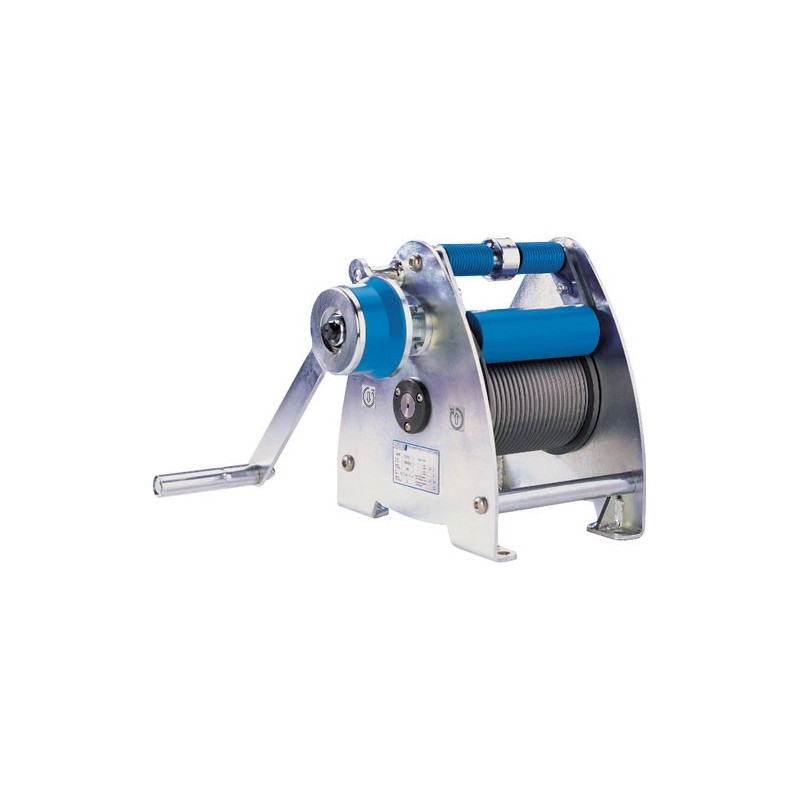

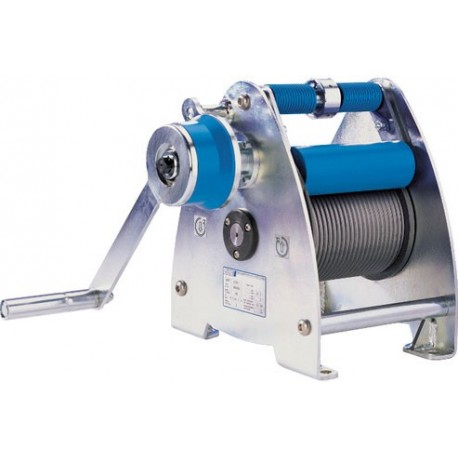

PFAFF SW-K LAMBDA Console-mounted rope winch
Capacity 300 kg
The compact rope winch for applications on stages, in studios, theatres, etc.
Price:
on demand
More info
The compact rope winch for applications on stages, in studios, theatres, etc.
Features
- State-of-the-art design with galvanized side sections for easy handling.
- Grooved drum for single-layer winding of the steel rope. An 18:1 ratio between drum and rope diameter increases the service life of the rope substantially.
- With spring-loaded rope pressure roller to prevent the unloaded rope from jumping off the drum.
- Gear rated for twice the nominal load.
- Spur gear drive for optimal efficiency and comfortable handling.
- The fitted safety crank with two spring brakes acting independently of each other for safe holding of the load in any position.
- Complies with the latest accident prevention regulations BGV C1 (DIN 56925) as well as the prototype and safety test (GS-test – tested safety) of the German committee for lifting equipment.
Options
- Drum extension for a larger rope capacity.
- Special g rooves (several ropes)
Product combinations
| Model | Capacity WLL in kg | Rope diameter in mm |
|---|---|---|
| LAMBDA 300 | 300 | 6 |
