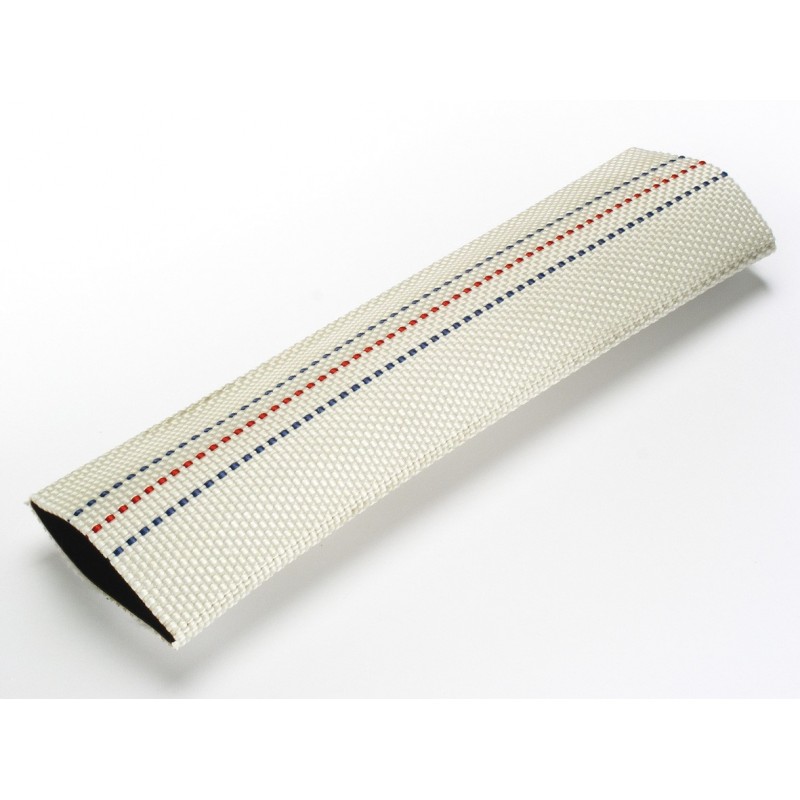

PEWAG AS Protective sleeves

Gummed

For loads with rough surfaces we recommend to use only the gummed protective sleeve.

For sharp edges we recommend to use an edge protector or an edge wear pad GS.

Gummed

For loads with rough surfaces we recommend to use only the gummed protective sleeve.

For sharp edges we recommend to use an edge protector or an edge wear pad GS.

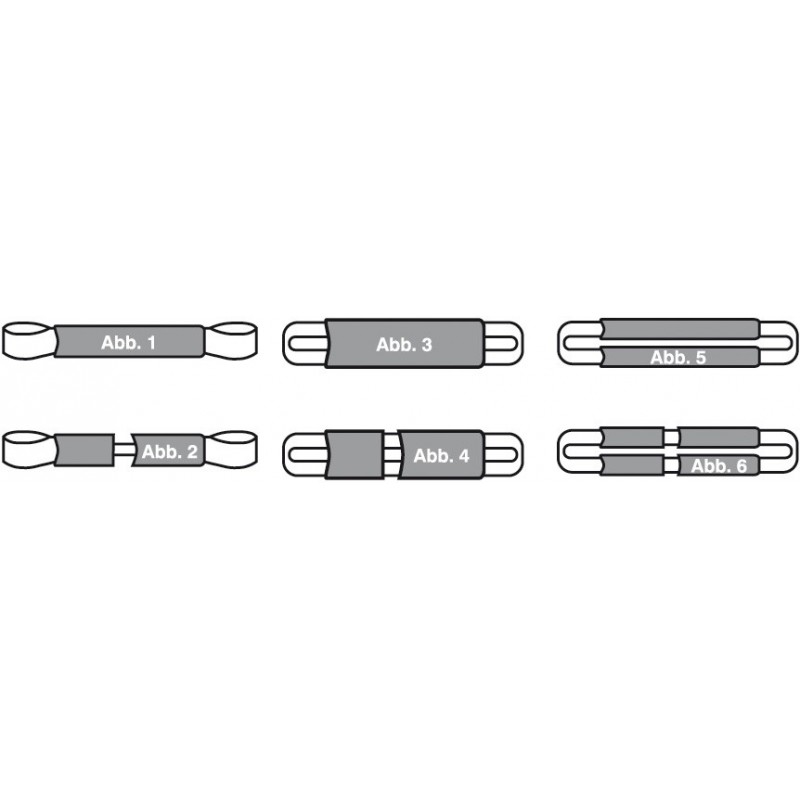

Possible types:

slideable/adjustable or fixed sewn with the textile sling one or two-parts.

one-part double or two-part double: for round slings and webbing sling tpye A2 all legs are protected on its own.

Model	Webbing width, mm	Round Sling fig. 5+6	Round Sling fig. 3 + 4
AS 38	30	1 t / 2 t	1 t
AS 52	60	3 t / 4 t	2 t / 3 t
AS 75	90		8 t
AS 102	120	10 t / 12 t	10 t / 12 t
AS 110	150	12 t / 20 t	15 t / 20 t
AS 125	180	25 t	25 t
AS 65		6 t / 8 t	4 t / 6 t
