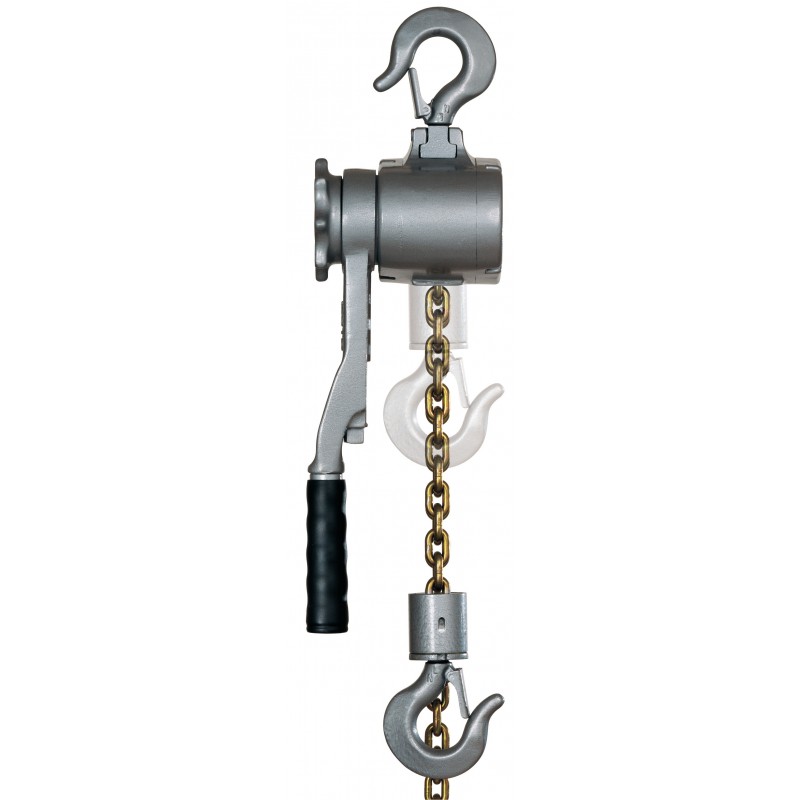

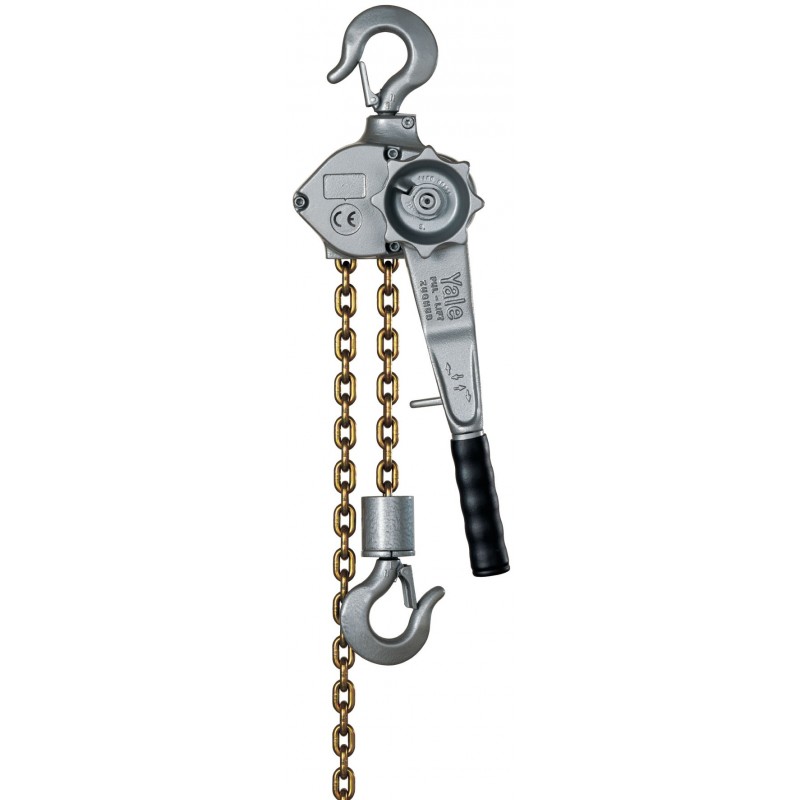

YALE D95 Ratchet lever hoist with link chain

Capacity 1 500 - 3 000 kg

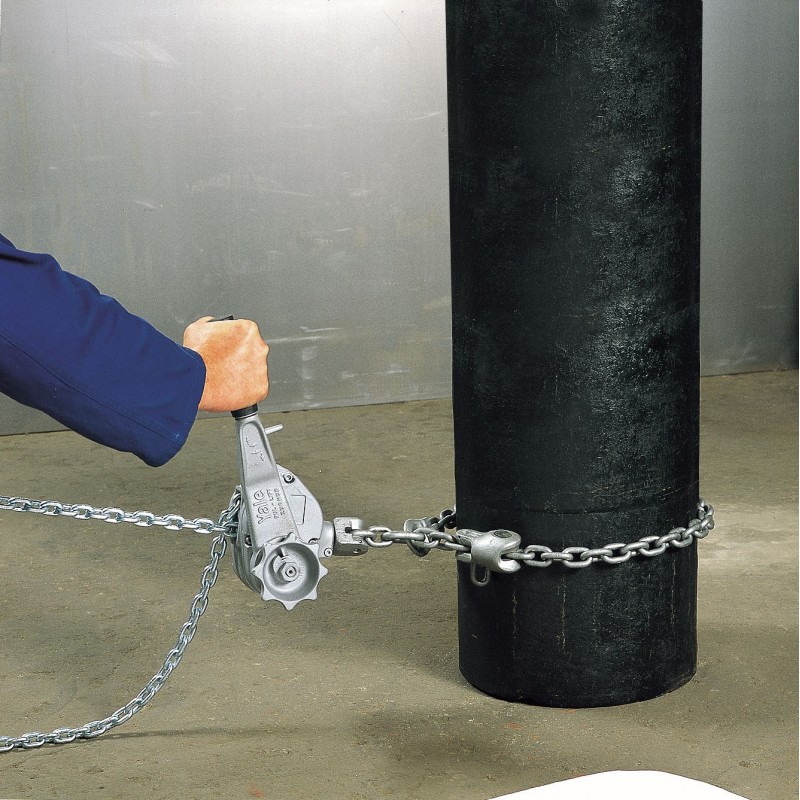

The D 95 in its cast malleable iron design has taken key technical features from the proven D 85 but excels due to low tare weight and an extremely small measurement between suspension and load hooks. A versatile unit for moving, positioning and securing loads.

More details

Price:

on demand

More info

The D 95 in its cast malleable iron design has taken key technical features from the proven D 85 but excels due to low tare weight and an extremely small measurement between suspension and load hooks. A versatile unit for moving, positioning and securing loads.

Features

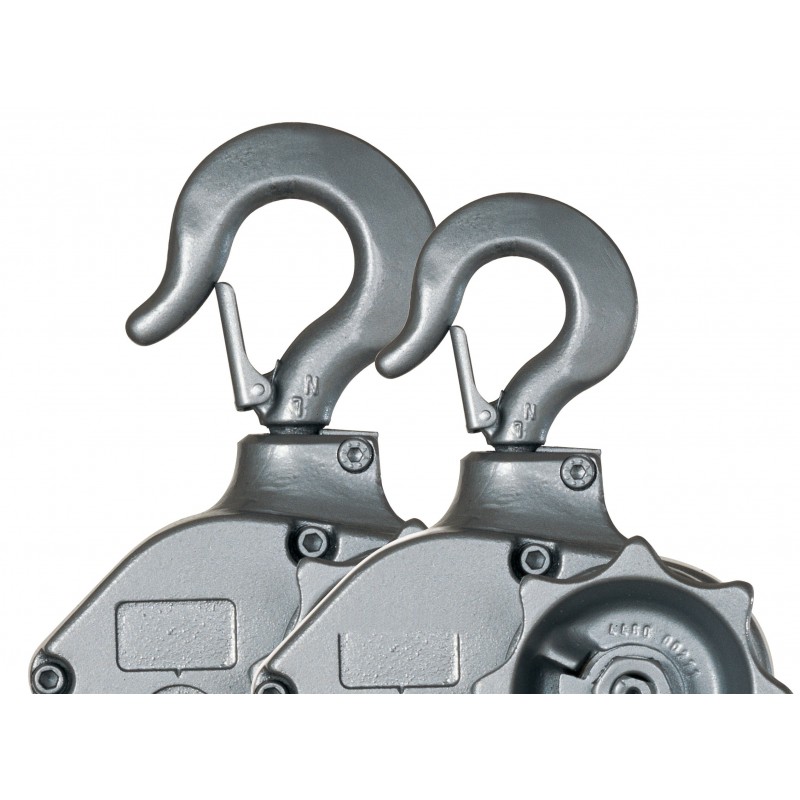

  • Enclosed housing with housing cover, handlever and bottom block made from high tensile malleable cast iron for overall rugged construction.
  • The short handlever is fitted with an ergonomic rubber grip.
  • It has an automatically acting load pressure brake which works on the self-locking principal.  For example, when used to secure loads an unintentional loosening of the brake is prevented when the load vibrates.
  • Standard free chaining device to quickly attach the load or to pull the chain through the hoist in both directions.
  • Alloyed steel link chain with zinc-plated resp. yellow chromated finish, in accordance with national and international standards and regulations.


Options

  • All models can be equipped with an overload  prevention device in the form of a slip clutch which is factory preset to approx. 25 % ± 15 % overload.
  • Hoist with sling chain.

Product combinations

Model Capacity WLL in kg Number of chain falls
D95 1500 1 500 1
D95 3000 3 000 1
