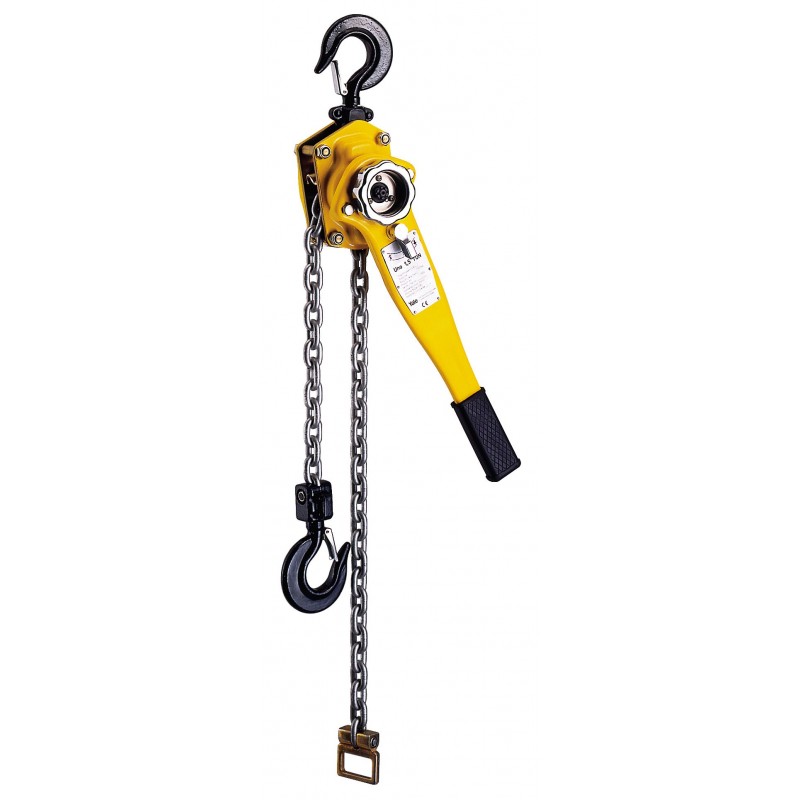

UNOplus  Ratchet lever hoist View larger

YALE UNOplus Ratchet lever hoist

Capacity 750 - 6 000 kg

Further technical development turns the ratchet lever hoist into the successor of our proven UNO model. The versatile tool for lifting, pulling and securing of loads is characterised by its compact design and robust stamped steel cons truction. Due to optimized gearing and improved bearings in the housing cover a minimum effor t is required to operate the short hand lever.

More details

Price:

on demand

More info

Further technical development turns the ratchet lever hoist into the successor of our proven UNO model. The versatile tool for lifting, pulling and securing of loads is characterised by its compact design and robust stamped steel cons truction.

 Features

  • Due to optimized gearing and improved bearings in the housing cover a minimum effor t is required to operate the short hand lever.
  • Steel hand wheel as standard.
  • Automatic screw-and-disc type load brake with corrosion protected components.
  • Standard free chaining device to quickly attach the load or to pull the chain through the hoist in both directions.
  • Robust chain guide rollers eliminate fouling and jamming of chain on the load sheave.
  • Sturdy bottom block with encapsulated bolt connections
  • Alloyed steel link chain with zinc-plated resp. yellow chromated finish, in accordance with national and international standards and regulations.
  • Drop forged suspension and load hooks are made from non-aging, high tensile steel and fitted with robust safety latches.

 Option

• Stainless steel load chains.

Lanové kladkostroje do výbušného prostředí Available in explosion proof version.

Uložiť

Product combinations

Model Capacity WLL in kg Number of chain falls
UNOplus 750 750 1
UNOplus1500 1 500 1
UNOplus 3000 3 000 1
UNOplus 6000 6 000 2
