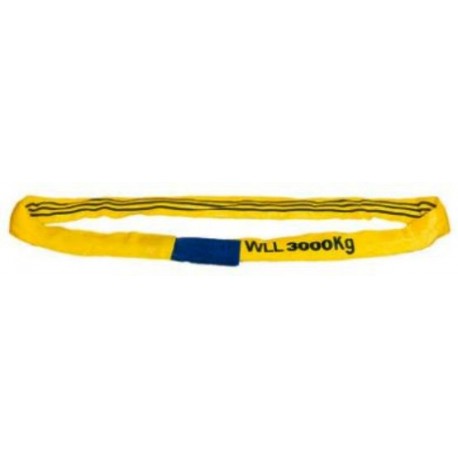

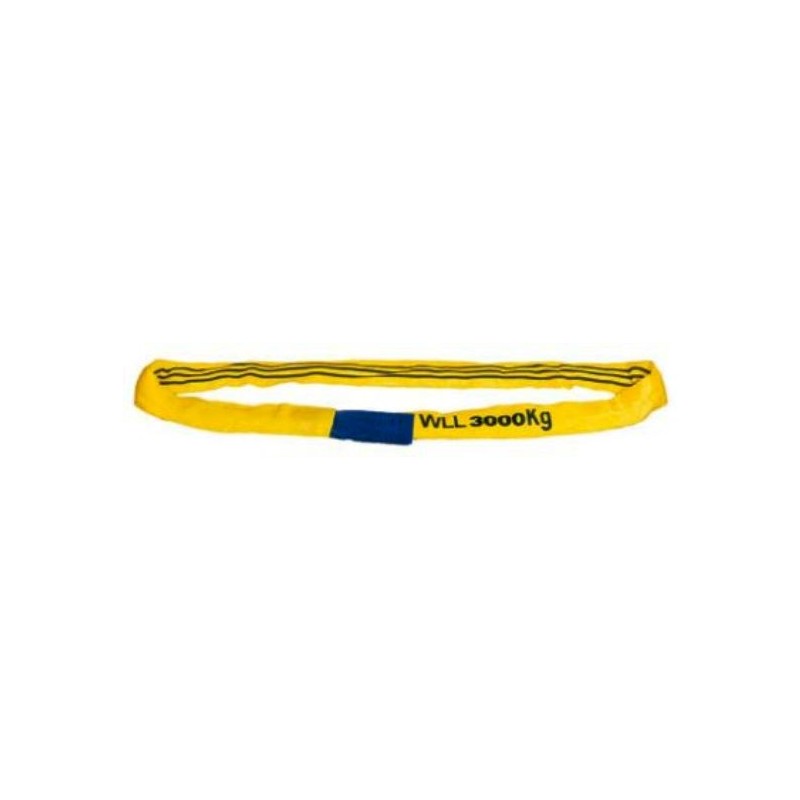

YALE RSD Round sling with duplex sleeve
Made from polyester (PES), EN 1492-2 with double stichless protection sleeve, with capacity label.
Price:
on demand
More info
Made from polyester (PES), EN 1492-2 with double stichless protection sleeve, with capacity label.
Features
- With double protection sleeve, PU-starched, thermally fixed.
- Colour coding of the protective sleeve.
- Printed-on capacities.
- Woven tonnage stripes, per ton capacity 1 stripe (applies only to round slings up to 10 t).
- Low weight allows easy handling.
- Protection against hand injuries.
- Protection against cargo surface damage.
- Highly flexible and adaptable to given shapes.
- UV-resistant, eliminating material ageing or embrittlement.
- Heat resistant up to +100° C.
- Moisture-resistant fabric, thus preventing frost damage (up to approx. -40° C).
- Standard length 1 - 10 m. Optional delivery of special lengths at the customer's request.
Product combinations
| Model | Capacity WLL in kg | Length | Color | Width |
|---|---|---|---|---|
| RSD-01000-3,0 | 1 000 | 3 m |
|
49 mm |
| RSD-01000-6,0 | 1 000 | 6 m |
|
49 mm |
| RSD-01000-4,0 | 1 000 | 4 m |
|
49 mm |
| RSD-01000-2,0 | 1 000 | 2 m |
|
49 mm |
| RSD-01000-5,0 | 1 000 | 5 m |
|
49 mm |
| RSD-01000-1,0 | 1 000 | 1 m |
|
49 mm |
| RSD-02000-3,0 | 2 000 | 3 m |
|
49 mm |
| RSD-02000-6,0 | 2 000 | 6 m |
|
49 mm |
| RSD-02000-1,0 | 2 000 | 1 m |
|
49 mm |
| RSD-02000-4,0 | 2 000 | 4 m |
|
49 mm |
| RSD-02000-2,0 | 2 000 | 2 m |
|
49 mm |
| RSD-02000-5,0 | 2 000 | 5 m |
|
49 mm |
| RSD-03000-3,0 | 3 000 | 3 m |
|
60 mm |
| RSD-03000-6,0 | 3 000 | 6 m |
|
60 mm |
| RSD-03000-1,0 | 3 000 | 1 m |
|
60 mm |
| RSD-03000-4,0 | 3 000 | 4 m |
|
60 mm |
| RSD-03000-2,0 | 3 000 | 2 m |
|
60 mm |
| RSD-04000-2,0 | 4 000 | 2 m |
|
69 mm |
| RSD-04000-5,0 | 4 000 | 5 m |
|
69 mm |
| RSD-04000-3,0 | 4 000 | 3 m |
|
69 mm |
| RSD-04000-6,0 | 4 000 | 6 m |
|
69 mm |
| RSD-04000-1,0 | 4 000 | 1 m |
|
69 mm |
| RSD-04000-4,0 | 4 000 | 4 m |
|
69 mm |
| RSD-03000-5,0 | 5 000 | 5 m |
|
60 mm |
| RSD-05000-1,0 | 5 000 | 1 m |
|
80 mm |
| RSD-05000-5,0 | 5 000 | 5 m |
|
80 mm |
| RSD-05000-2,0 | 5 000 | 2 m |
|
80 mm |
| RSD-05000-6,0 | 5 000 | 6 m |
|
80 mm |
| RSD-05000-4,0 | 5 000 | 4 m |
|
80 mm |
| RSD-05000-3,0 | 5 000 | 3 m |
|
80 mm |
| RSD-06000-4,0 | 6 000 | 4 m |
|
85 mm |
| RSD-06000-2,0 | 6 000 | 2 m |
|
85 mm |
| RSD-06000-5,0 | 6 000 | 5 m |
|
85 mm |
| RSD-06000-3,0 | 6 000 | 3 m |
|
85 mm |
| RSD-06000-6,0 | 6 000 | 6 m |
|
85 mm |
| RSD-06000-1,0 | 6 000 | 1 m |
|
85 mm |
| RSD-08000-6,0 | 8 000 | 6 m |
|
95 mm |
| RSD-08000-1,0 | 8 000 | 1 m |
|
95 mm |
| RSD-08000-4,0 | 8 000 | 4 m |
|
95 mm |
| RSD-08000-2,0 | 8 000 | 2 m |
|
95 mm |
| RSD-08000-5,0 | 8 000 | 5 m |
|
95 mm |
| RSD-08000-3,0 | 8 000 | 3 m |
|
95 mm |
| RSD-10000-3,0 | 10 000 | 3 m |
|
108 mm |
| RSD-10000-6,0 | 10 000 | 6 m |
|
108 mm |
| RSD-10000-1,0 | 10 000 | 1 m |
|
108 mm |
| RSD-10000-4,0 | 10 000 | 4 m |
|
108 mm |
| RSD-10000-2,0 | 10 000 | 2 m |
|
108 mm |
| RSD-10000-5,0 | 10 000 | 5 m |
|
108 mm |
