PETZL OXAN Oval steel carabiner
Rugged and compact, the OXAN carabiner is particularly suited for use in difficult conditions where weight is not an issue: setting fixed anchors, connecting to metal structures... The OXAN carabiner is available in two locking systems: manual SCREW-LOCK system or automatic TRIACT-LOCK system. OXAN TRIACT-LOCK is available in European or international versions.
Price:
on demand
Data sheet
| Material | steel |
More info
- Steel suitable for harsh conditions
- Keylock system helps prevent the carabiner snagging during maneuvers
- Red indicator provides a visual warning when the carabiner is unlocked (on SCREW-LOCK version)
- Two locking systems available:

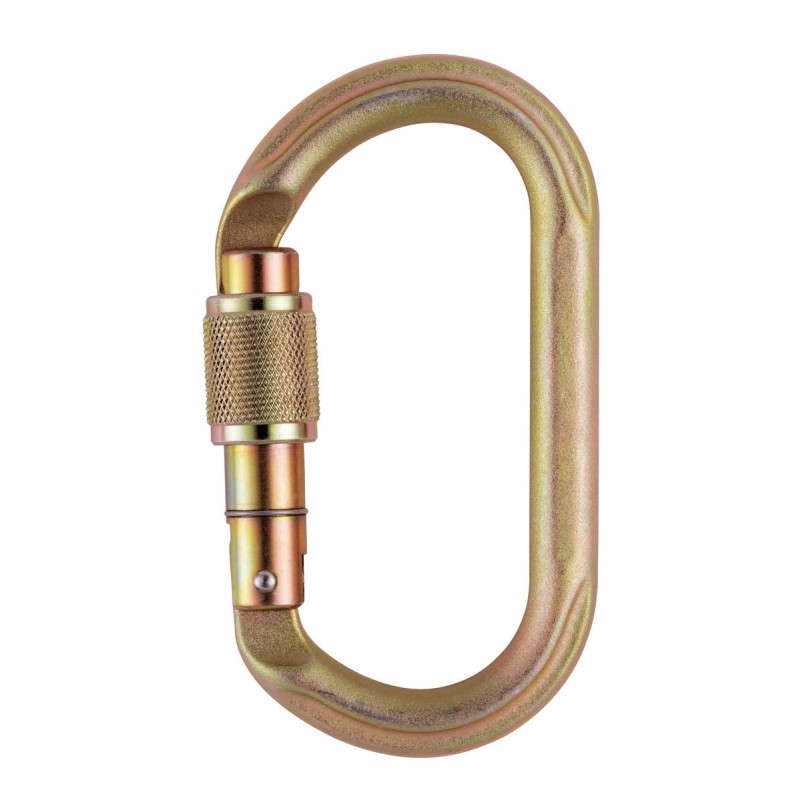

- SCREW-LOCK: the manual screw-lock with red band provides a visual warning when the carabiner is unlocked

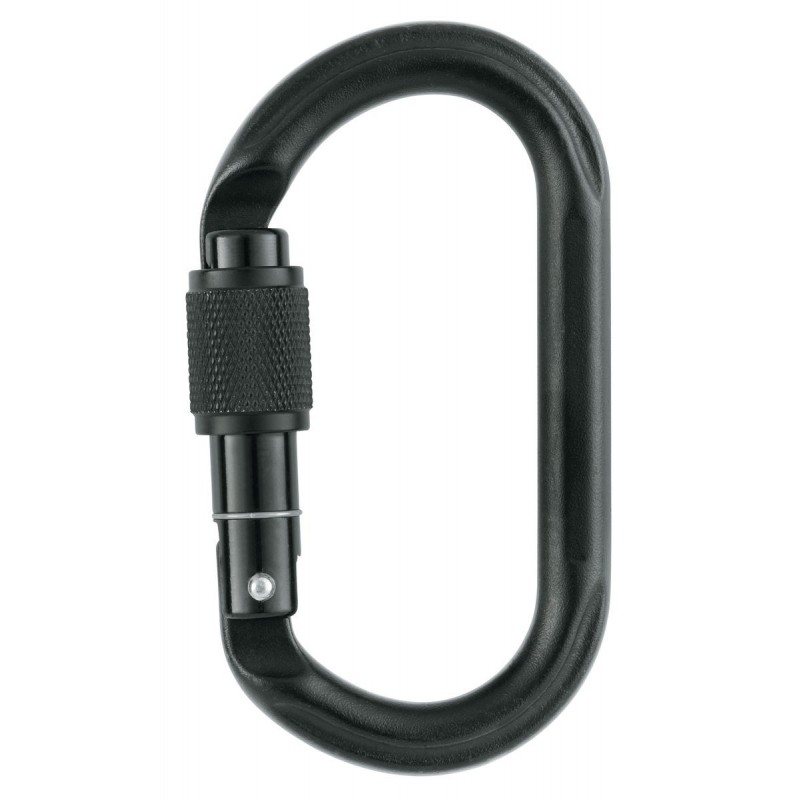

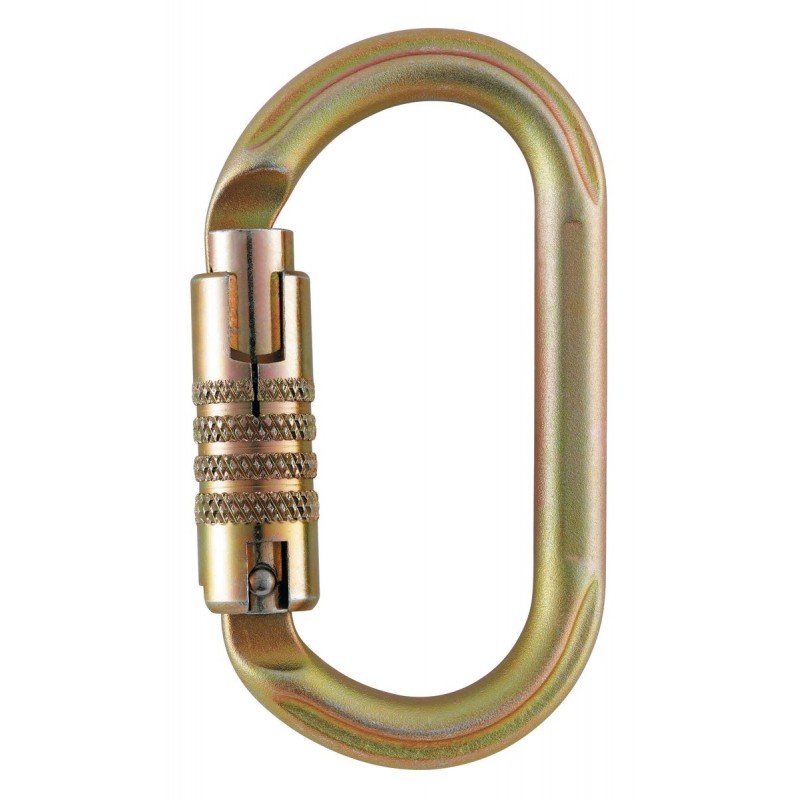

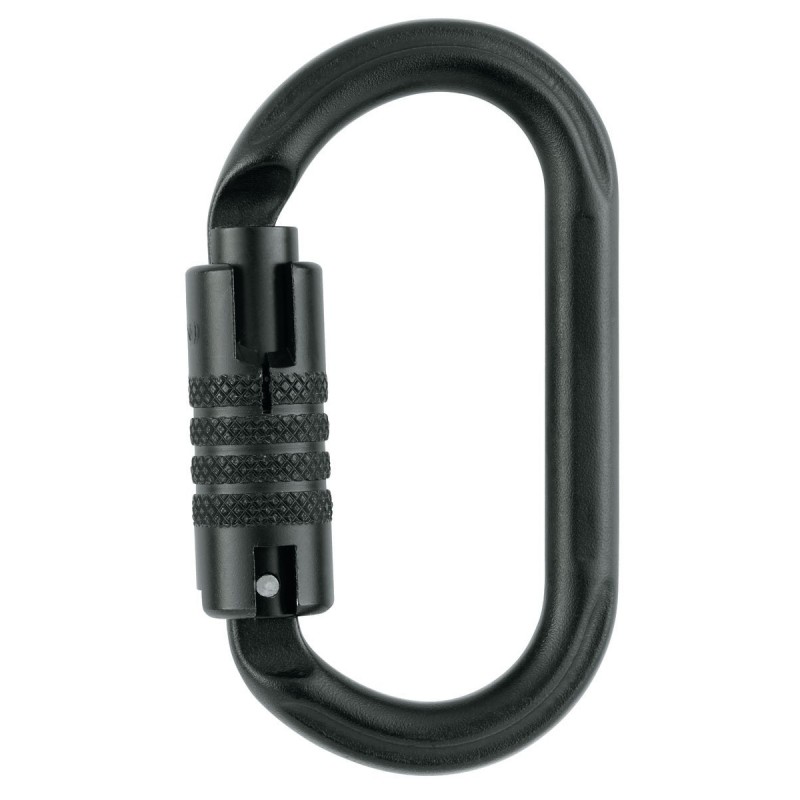

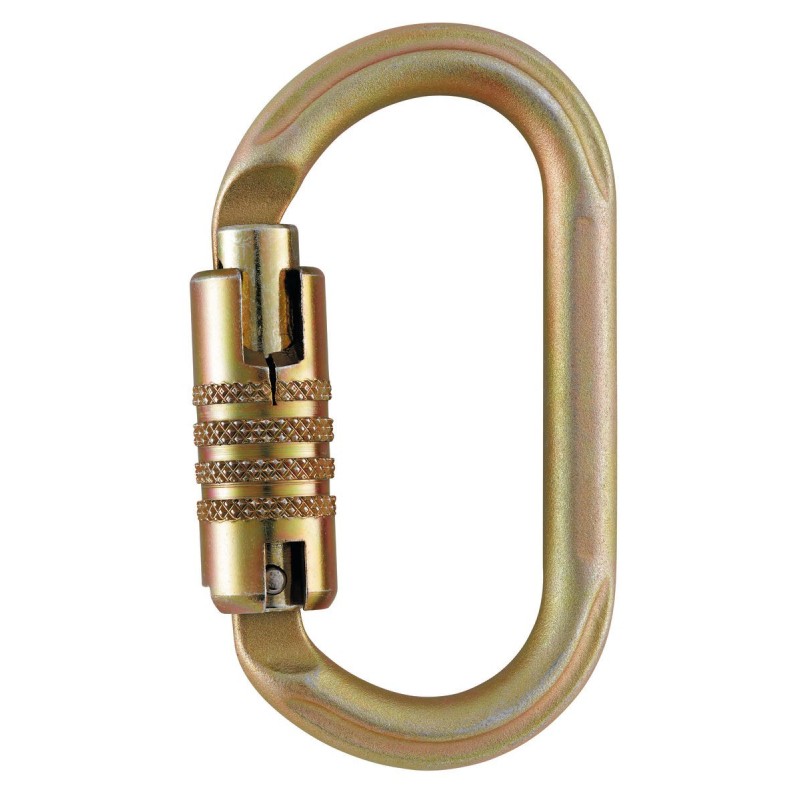

- TRIACT-LOCK: automatic locking with triple-action gate opening - Also available in black
Product combinations
| Model | Weight | Color | Gate opening (g) | Locking system | Major axis strength | Minor axis strength | Certification | Open gate strength |
|---|---|---|---|---|---|---|---|---|
| M72 SL | 195 g |
|
20 mm | SCREW-LOCK | 27 kN | 16 kN | CE EN 362, NFPA 1983 Technical Use, EAC | 7 kN |
| M72 SLN | 195 g |
|
20 mm | SCREW-LOCK | 27 kN | 16 kN | CE EN 362, NFPA 1983 Technical Use, EAC | 7 kN |
| M72 TL | 215 g |
|
19 mm | TRIACT-LOCK | 27 kN | 16 kN | CE EN 362, NFPA 1983 Technical Use, EAC | 7 kN |
| M72 TLA | 235 g |
|
18 mm | TRIACT-LOCK | 27 kN | 16 kN | CE EN 362, ANSI Z359.1, NFPA 1983 Technical Use, CSA Z259.12, EAC | 7 kN |
| M72 TLN | 235 g |
|
18 mm | TRIACT-LOCK | 27 kN | 16 kN | CE EN 362, ANSI Z359.1, NFPA 1983 Technical Use, CSA Z259.12, EAC | 7 kN |
