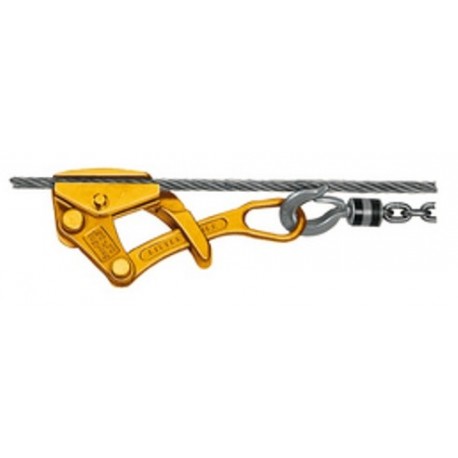

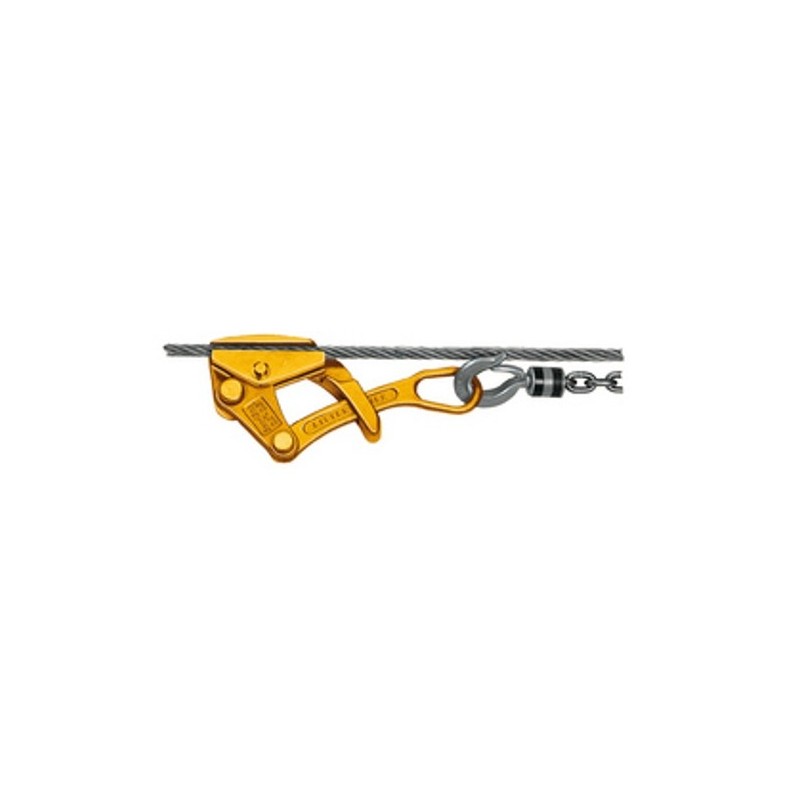

LMG Cable grip YALE View larger

YALE LMG Cable grip

Pulling force 2 000 - 5 000 daN

The LITTLE MULE cable grip is a device for gripping, pulling and tensioning uncoated wire ropes, cables and metal rods in all forms up to a tensile strength of 1770 N/mm² but is dependant on the diameter and surface condition.



More details

Price:

on demand

More info

The LITTLE MULE cable grip is a device for gripping, pulling and tensioning uncoated wire ropes, cables and metal rods in all forms up to a tensile strength of 1770 N/mm² but is dependant on the diameter and surface condition.

  • The parallel jaws provide a firm, non-slip grip without causing damage to the wire rope.
  • A special spring-loaded guide prevents the grip from dropping off the wire rope and allows instant release without jamming.
  • The model LMG II-X is supplied with grooved jaws and is suitable for wire ropes with a tensile strength of up to 1960 N/mm², but is dependant on the rope diameter and surface condition.

Product combinations

Model Pulling force, daN
LMG I 2 000
LMG II-X 3 000
LMG II 3 000
LMG III 5 000
