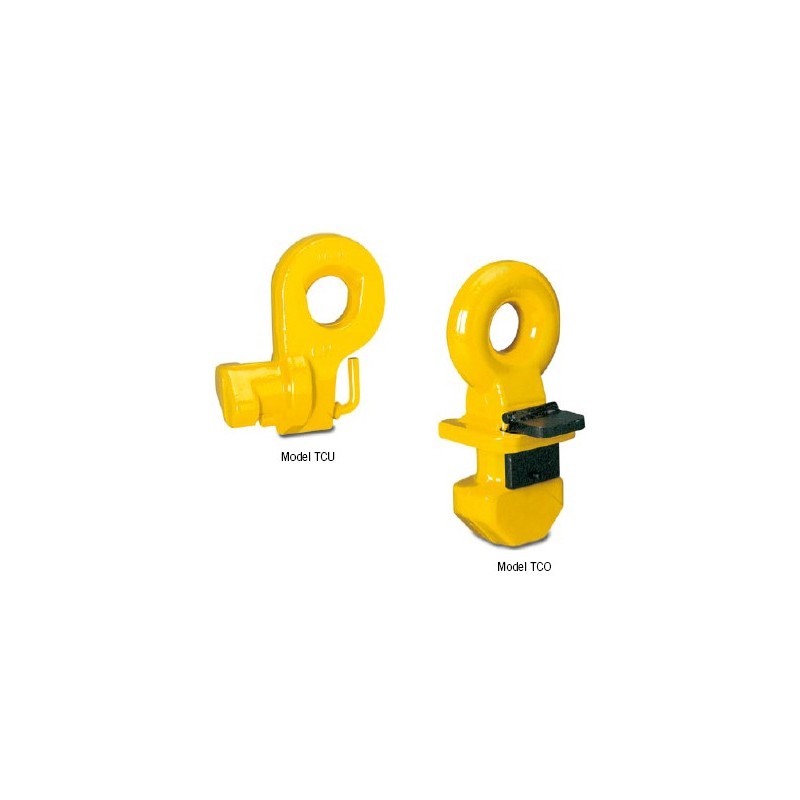

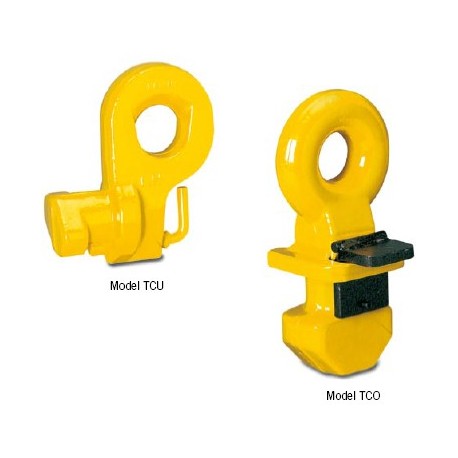

YALE TCO / TCU Container lifting lug
Capacity 32 000 - 56 000 kg
These container lifting lugs are offered in a set of 4 pieces with a total weight capacity of 56 t. The lugs serve as flexible attachment points for the transport of containers. Two types are available which can be fastened to either the “top“ of the container or laterally. Model TCO is vertically mounted in the hole at the top of the container.
Price:
on demand
More info
- These container lifting lugs are offered in a set of 4 pieces with a total weight capacity of 56 t.
- The lugs serve as flexible attachment points for the transport of containers.
- Two types are available which can be fastened to either the “top“ of the container or laterally.
- Model TCO is vertically mounted in the hole at the top of the container.
- Turning the TCO 90°, locks it securely in place.
- Transport is done with the use of a spreader beam in conjunction with wire rope, chain or textile slings making sure the load is suspended vertically.
- Model TCU is mounted laterally on the container (in the upper or the lower part) and has a spring-loaded bolt to prevent an accidental release.
- Transport is done with the use of a spreader beam in conjunction with wire rope, chain or textile slings up to the below mentioned angles from the vertical.
Product combinations
| Model | Capacity WLL in kg |
|---|---|
| TCU 32 | 32 000 |
| TCU 40 | 40 000 |
| TCO 56 | 56 000 |
