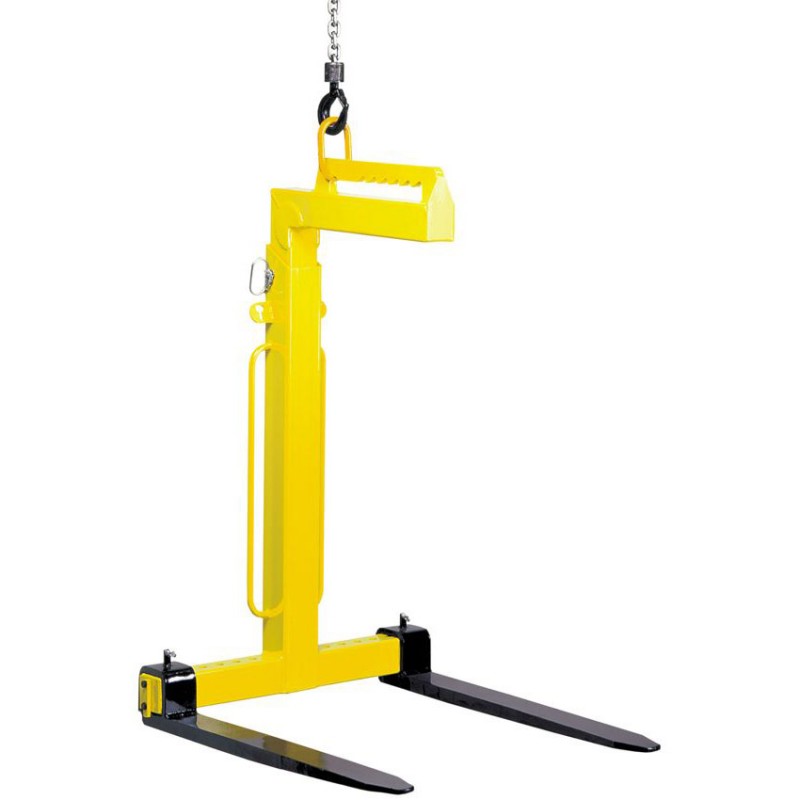

YALE TKG-VH Crane fork
Capacity 1000 - 5000 kg
These crane forks are equipped with adjustable tines and height adjust ability. The balancing system engages when the shackle is manually hooked into the appropriate notch.
Price:
on demand
More info
Capacity 1000 - 5000 kg
These crane forks are equipped with adjustable tines and height adjust ability. The balancing system engages when the shackle is manually hooked into the appropriate notch.
Features:
- All crane forks comply with the latest st andards and CE-directives.
- Safety factor 4:1
- Maintenance-free
- Highly visible safety colour
- For the transport of rings or coils, the fork tines are simply pushed together.
- Easily adjustable tines for all pallet sizes.
- Scope of delivery - Chain for load securing
Product combinations
| Model | Capacity WLL in kg | Usable height, mm |
|---|---|---|
| TKG 1,0 vh | 1 000 | 1 100 - 1 600 |
| TKG 1,5 vh | 1 500 | 1 300 - 2 000 |
| TKG 2,0 vh | 2 000 | 1 300 - 2 000 |
| TKG 3,0 vh | 3 000 | 1 300 - 2 000 |
| TKG 5,0 vh | 5 000 | 1 300 - 2 000 |
