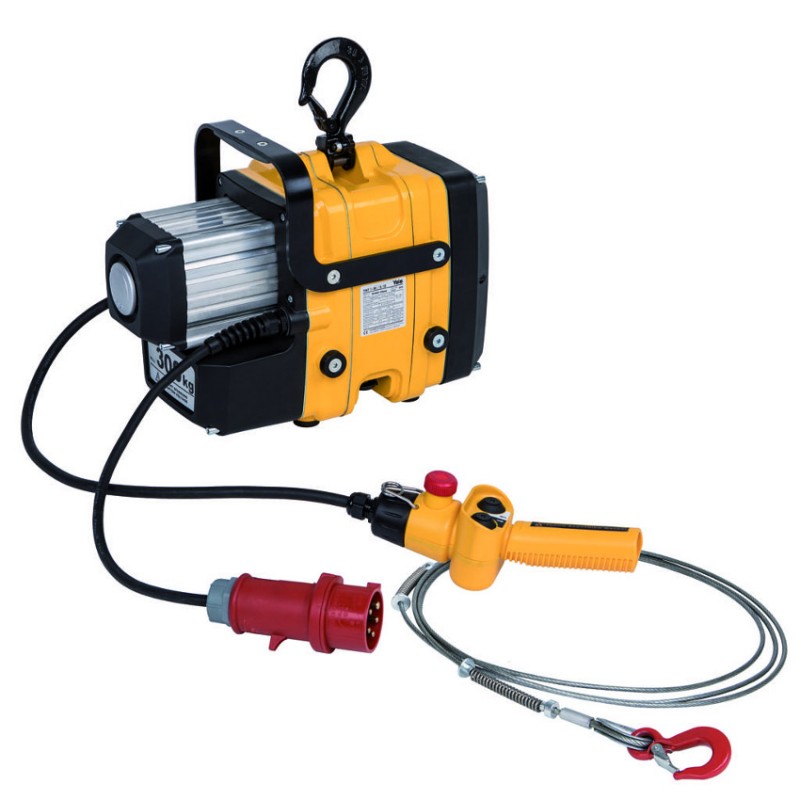

YMT / YALE YaleMtrac Endless winch View larger

YALE YaleMtrac Endless winch

Capacity 66 - 300 kg

The Yale Mtrac endless winch combines state-of-the-art industrial design with technical innovation to solve a specific customer need – the need for a safe and simple handling solution for mobile applications.

More details

Price:

on demand

More info

The Yale Mtrac endless winch combines state-of-the-art industrial design with technical innovation to solve a specific customer need – the need for a safe and simple handling solution for mobile applications.
We did just that. Because the rope of the endless winch is not collected during operation, there is no limit to the lifting height and traction length when using this product. And, with a full offering of wire ropes and accessories, this winch can be used in virtually any application requiring a hoist.

Features

  • Patented* bi-directional actuator
    The Yale Mtrac endless winch features a unique bi-directional paddle actuator that allows the winch to move the rated load on both ends of the rope. A hook can be fitted on the unloaded rope end (as an option) thus eliminating no-load motions. How does it work? Once the load has reached the top position, the unloaded rope end with the other hook is automatically in the bottom position and a new load can be picked up immediately. The lifting frequency is doubled as the two falls can be evenly loaded alternately with the rated load.
    *German Patent DE 10 2012 100 099.
  • Ready to use
    Each winch leaves our factory as a complete plug and play unit. The control cable with control pendant is connected, as is the power supply cable with the plug. The standard design also features a wire rope complete with fitted safety hook. The carrying handle is included as standard and load-bearing feet are provided on the lower part of the housing.
  • State-of-the-art industrial design
    A compact and state-of-the-art design was at the focus of the Yale Mtrac. The housing is made of low-pressure, die-cast aluminum and the high-strength, glass-fiber reinforced plastic covers ensure low weight and outstanding rigidity. A carrying frame, available as an option, allows for easy, two-person transport and provides additional protection against damage when moving the unit or operating it in rough conditions.
  • Versatile application
    Mtrac winches can be used vertically, at an angle or horizontally for versatility depending on your application. Optionally, the load capacity can be doubled with two-fall reeving. Bolting points on the housing allow the customer to attach the winch in a way that best suits their application.
  • Proven technology
    Mtrac winches include reliable and proven Yale technology. The oilbath lubricated and case-hardened gearbox has a helical gearing for smooth operation and a long service life. IP 55-rated motor enclosure ensures reliable operation of the winch for both indoor and outdoor applications.
  • Best-in-class safety
    Standard winch models feature 42 V low-voltage control with built-in limit switches designed to stop the hoist when the hook has reached the upper or lower position. The operator can define the limit switch positions by simply relocating the spring buffers on the rope. The winch is also protected against overload by means of a slip clutch that is designed to guarantee a permanent connection between the load and the brake.
  • Simple maintenance
    Yale Mtrac winches are easy to service. Units are designed with a modular structure with all critical parts easily accessible. Re adjusting the slip clutch and inspecting the brake is quick and easy as well. In addition, the handle, or carrying frame, can be quickly and easily assembled and removed.
  • Ergonomic design
    Standard units have a comfortable plastic grip that allows for convenient one-person transport. The optional carrying frame features a grip on each handle, making two-person transport easy. And, because of the rounded housing, operator injury is minimized.

Optional features

  • Bi-directional lifting
    To realize the full potential of this winch, operators can utilize the bi-directional actuator. Simply fit an additional hook at the loose rope end to take advantage of this unique feature. Once the hook is in place, put the unit into bi-directional lifting mode (two-hook mode). The actuator is mounted in the interior of the winch and ensures the rope smoothly runs in the drive sheave. It also extends the pressure surface of the rope on the drive sheave for safe friction contact. The two load falls are designed to alternately carry the rated load.
  • Carrying frame
    The carrying frame on the Yale Mtrac can be installed either at the top or at the bottom on the unit. It is ergonomically designed with plastic grips that ensure hand-friendly handling and carrying of the winch by two people. The carrying frame cannot be used as a load-bearing component; it is exclusively intended to protect the housing, e.g. while working, during storage or while transporting or carrying the winch. Two carrying frames can also be used (one at the top and one at the bottom).
  • Connestion to trolleys
    If low headroom is required, the Yale Mtrac winch can be easily converted from the standard hook connection to a trolley mount using a Yale trolley. Manual and power-driven trolleys available on request.

Product combinations

Model Capacity WLL in kg Lifting speed main lift m/min Rope diameter in mm Operating voltage
YMTF 0,6-30 66 30/ 7,5 6,5 400 V / 3 Ph / 50 Hz
YMT 1-30 100 30 6,5 400 V / 3 Ph / 50 Hz
YMT 1-15 100 15 6,5 230 V / 1 Ph / 50Hz
YMTF 2-10 200 10/ 2,5 6,5 400 V / 3 Ph / 50 Hz
YMT 3-10 300 10 6,5 400 V / 3 Ph / 50 Hz
YMT 3-5 300 5 6,5 230 V / 1 Ph / 50Hz
