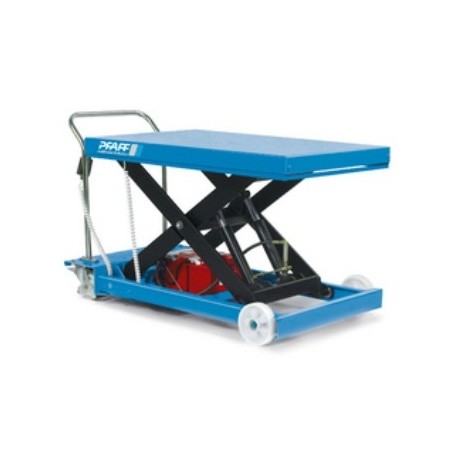

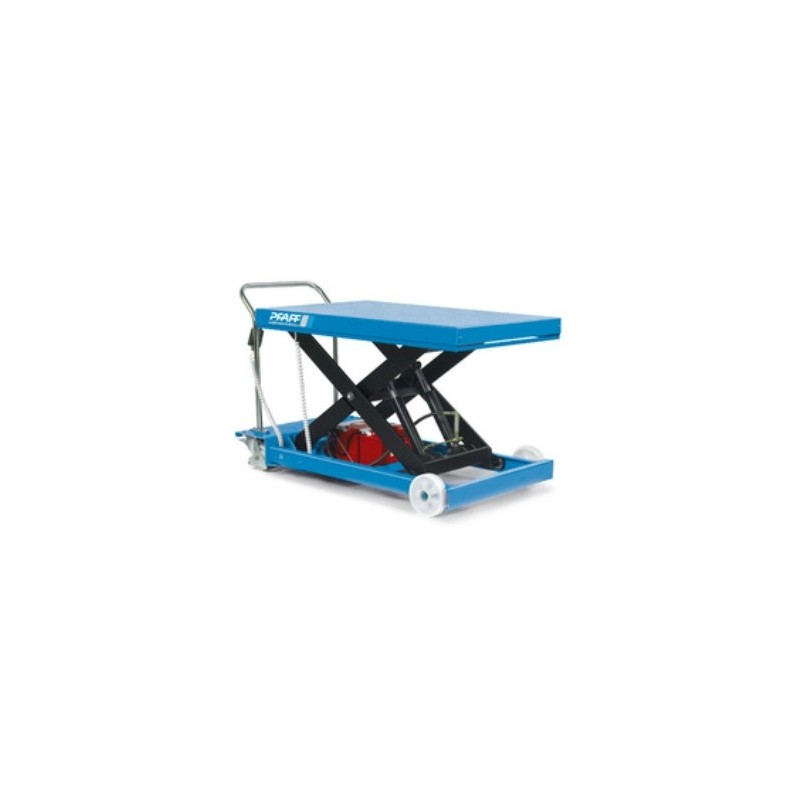

HF-SE Scissor elevating platform, mobile with single scissor and -electric hydraulic system PFAFF silberblau
Capacity 300 - 1 250 kg, platform height max. 1 050 mm
For lifting and supplying goods independent of the location.
Price:
on demand
More info
For lifting and supplying goods independent of the location.
Features
- Manual hydraulic system with pedal or electric hydraulic system with dead man function – a main current connection is not required.
- High safety due to pressure relief and lowering valve.
- Robust single scissor construction, above 300 kg with solid steer scissor.
- Pivoting platform with mechanic adjustment for safe maintenance work.
- Compact design with low OAH.
- Steering and fixed rollers with service-free roller bearings. One steer roller can be locked in position for parking.
- According to EN 1570 and machinery directive 2006/42/EG.
Scope of delivery
- Models with electric-hydraulic pump are supplied complete with battery and charger.
Product combinations
| Model | Capacity WLL in kg | Platform height max., mm |
|---|---|---|
| HF 030-084 SE | 300 | 840 |
| HF 050-090 SE | 500 | 900 |
| HF 080-105 SE | 800 | 1 050 |
| HF 100-105 SE | 1 000 | 1 050 |
| HF 125-105 SE | 1 250 | 1 050 |
