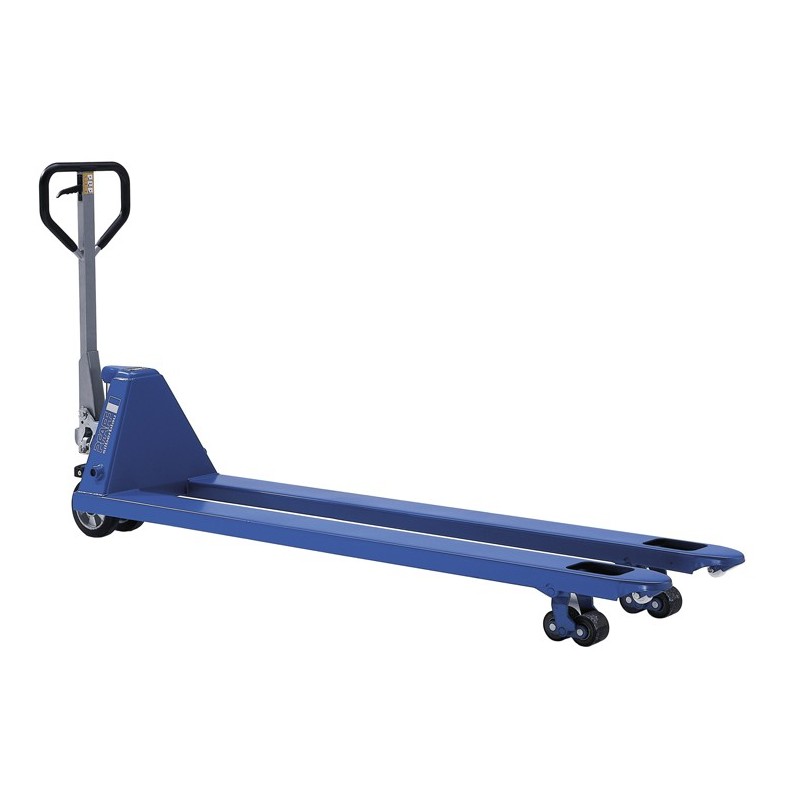

PROLINE Hand pallet truck with extended forks PFAFF silberblau View larger

PROLINE Hand pallet truck with extended forks PFAFF silberblau

Capacity 2 000 - 2 500 kg

For the professional transportation of long palletised goods and box pallets under demanding conditions.



More details

Price:

on demand

More info

For the professional transportation of long palletised goods and box pallets under demanding conditions.

  • Ergonomic safety control handle for one-hand operation of lifting, driving and lowering.
  • Ergonomic rubber control handle for safe handling.
  • Low maintenance high performance hydraulic pump with hard chromium plated piston and pressure relief valve.
  • Frame and forks in robust steel construction, adjustable connecting rods, especially hardened axles and the high quality powder coating ensure a long life expectancy.
  • Fork lenghts from 1300 up to 2000 mm for transportation of long and bulky loads.
  • Steering angle of 105 degree to each side for easy handling in confined spaces.

Product combinations

Model Capacity WLL in kg Scroll wheel, mm Supporting wheels, mm Fork width, mm Fork length, mm Overall width Fork, mm
HU 20-150 TP 2 000 200x50 82x70 160 1 500 540
HU 20-180 TP 2 000 200x50 82x70 160 1 800 540
HU 20-200 TP 2 000 200x50 82x70 160 2 000 540
HU 20-250 TP 2 000 200x50 82x70 170 2 500 550
HU 20-300 TP 2 000 200x50 82x70 170 3 000 550
HU 25-130 TP 2 500 200x50 82x70 160 1 300 540
