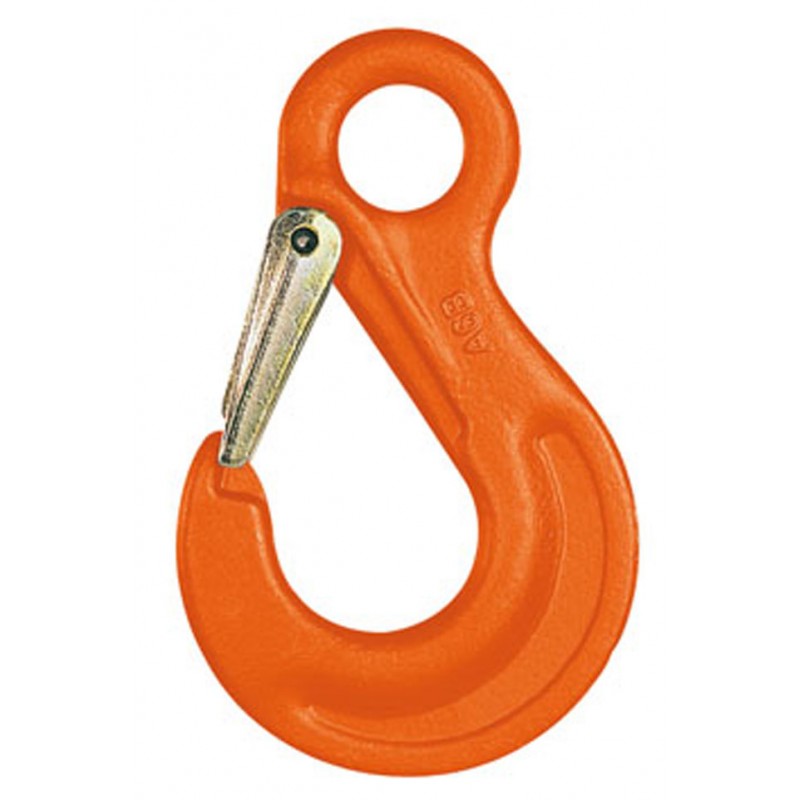

PEWAG HSW Eye sling hook
The eye sling hook may be used universally and comes with a die-forged safety catch that locks into the tip of the hook, thereby providing excellent protection against lateral shifts.
on demand
More info
The eye sling hook may be used universally and comes with a die-forged safety catch that locks into the tip of the hook, thereby providing excellent protection against lateral shifts. The hook is suitable for Connex and the welded system and is manufactured according to EN 1677-2 with the lashing capacity of G10.
Assembly of the safety catch set is simple and quick and does not require any special tools. It consists of a die-forged safety catch a rust-proof spring and a retaining pin for extra reliability.
Please note that the eye sling hook is suitable for straight pull only. Leads on the tip of hook or the safety catch are not permitted.
Product combinations
| Model | Capacity WLL in kg |
|---|---|
| HSW 5/6 | 1 400 |
| HSW 7/8 | 2 500 |
| HSW 10 | 4 000 |
| HSW 13 | 6 700 |
| HSW 16 | 10 000 |
| HSW 19/20 | 16 000 |
| HSW 22 | 19 000 |
| HSW 26 | 26 500 |
| HS 32 | 31 500 |
| HSW 32 | 40 000 |
