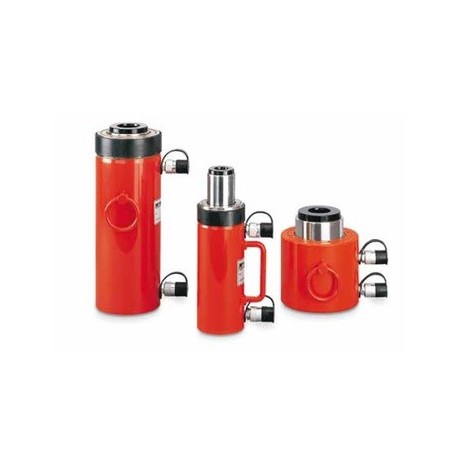

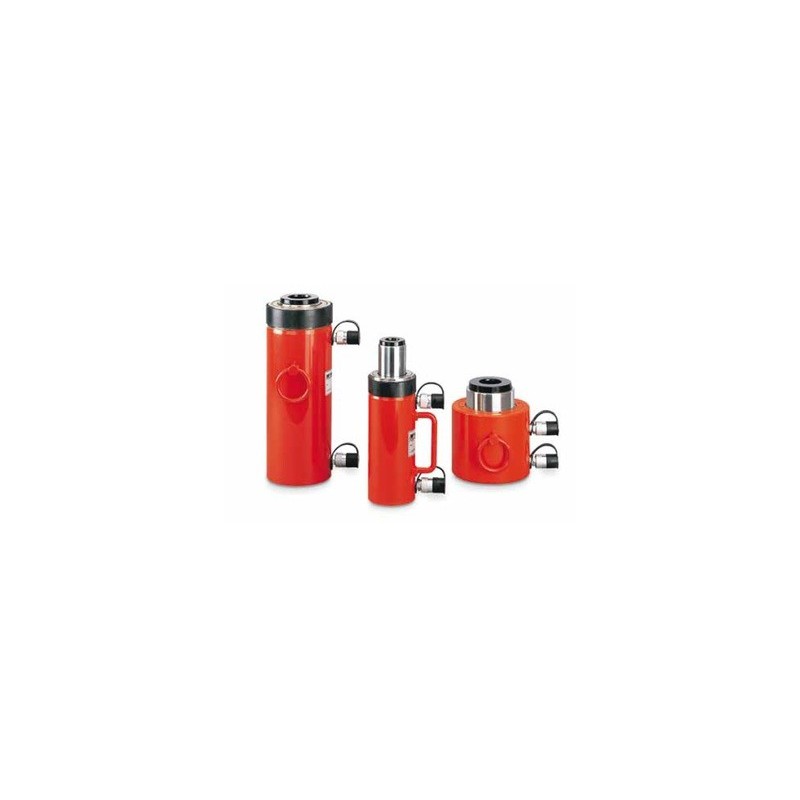

YALE YCH Hollow cylinders
Double-acting with hydraulic return, capacity 33 - 140t
Basically, the applications are the same as for the single-acting hollow cylinders shown on the opposite page, but for this model range the return of the piston is done hydraulically by means of the second oil port.
Price:
on demand
More info
Basically, the applications are the same as for the single-acting hollow cylinders shown on the opposite page, but for this model range the return of the piston is done hydraulically by means of the second oil port. These double-acting hollow cylinders are used when the piston needs to be retracted quickly e.g. with high-cycle pulling applications.
Features
- Yale ChroMo-Design.
- Operating pressure max. 700 bar.
- Double-acting with hydraulic return.
- With large centre hole diameter.
- Cylinder body and piston are made from solid chromium-molybdenum steel and heat-treated.
- Hard-chromium plated pis ton with replaceable, heat-treated saddle.
- Metric mounting threads at cylinder body and inside of piston.
- Stop ring prevents over travel of the piston up to full operating pressure.
- Interchangeable hardened saddle.
- With inner and outer dirt wipers.
- Oil port thread 3/8 NPT.
- Incl. 2 female coupler halves model CFY-1.
- All cylinders with carrying handle, from model YCH-62/250 with 2 lifting rings.
Product combinations
| Model | Capacity WLL in kg | Lift, mm |
|---|---|---|
| YCH-33/250 | 33 000 | 250 |
| YCH-33/150 | 33 000 | 150 |
| YCH-62/250 | 62 000 | 250 |
| YCH-93/250 | 93 000 | 250 |
| YCH-100/40 | 100 000 | 40 |
| YCH-140/200 | 140 000 | 200 |
