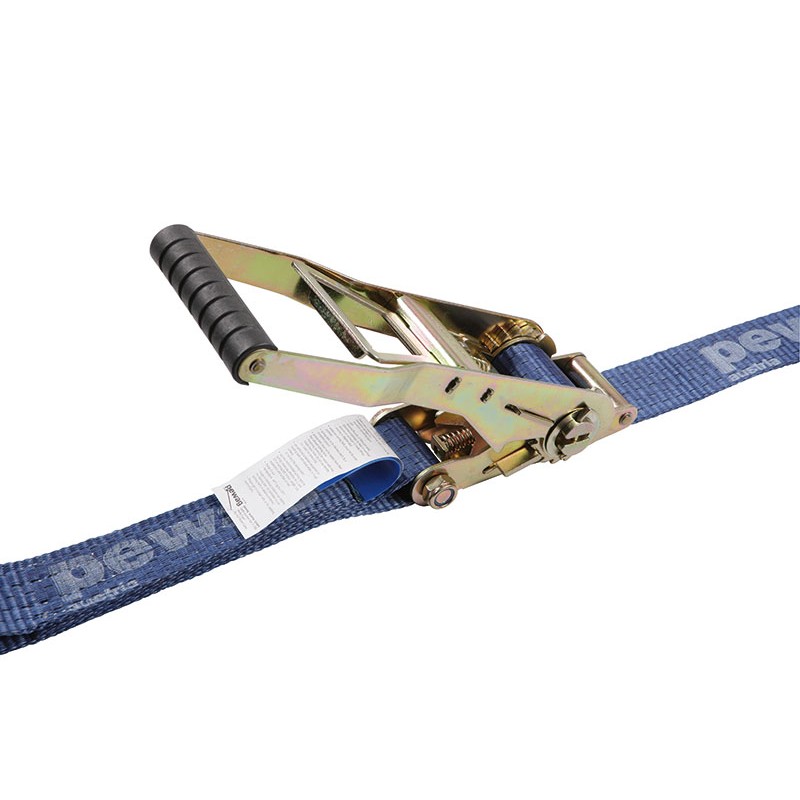

PEWAG ZG ERGO DZ 50 Lashing strap

Reference: ZG ERGO DZ 50

Price:

on demand

Send to a friend

Send to a friend

PEWAG ZG ERGO DZ 50 Lashing strap

Lashing strap ZG ERGO DZ 50 other applications with ratchet RA ERGO-DZ 100. The user friendliest system for the lashing down of heavy loads now allows to be tensioned under pull thanks to the long lever ERGOratchet.

Recipient :

Name of your friend ^* :

E-mail address of your friend ^* :

^* Required fields

or Cancel
Print

Data sheet

Webbing width, mm	50 mm
Standard tension force STF	500 daN
Pulling force (LC) - direct lashing process	2 500 daN
Pulling force (LC) - strapping	5 000 daN

More info

Lashing strap ZG ERGO DZ 50 other applications with ratchet RA ERGO-DZ 100.
The user friendliest system for the lashing down of heavy loads now allows to be tensioned under pull thanks to the long lever ERGOratchet. The use of the maximal tensioning force (STF) reduces the required number of lashing straps and saves time when loading. Labels are very durable due to their transparent protective covers.

Order example:
ZG ERGO DZ 50 x 8000 / 2500 Z RHS
Lashing strap system 50 two-piece lashing strap, with ratchet RA
ERGO-DZ 100 and 2 units RHS as end fittings, strap width 50 mm,
length lG = 8,000 mm
