> >>>TAPS Attachment-point, weld-on-type - JDT
TAPS Attachment-point, bolt-on-type - JDT View larger

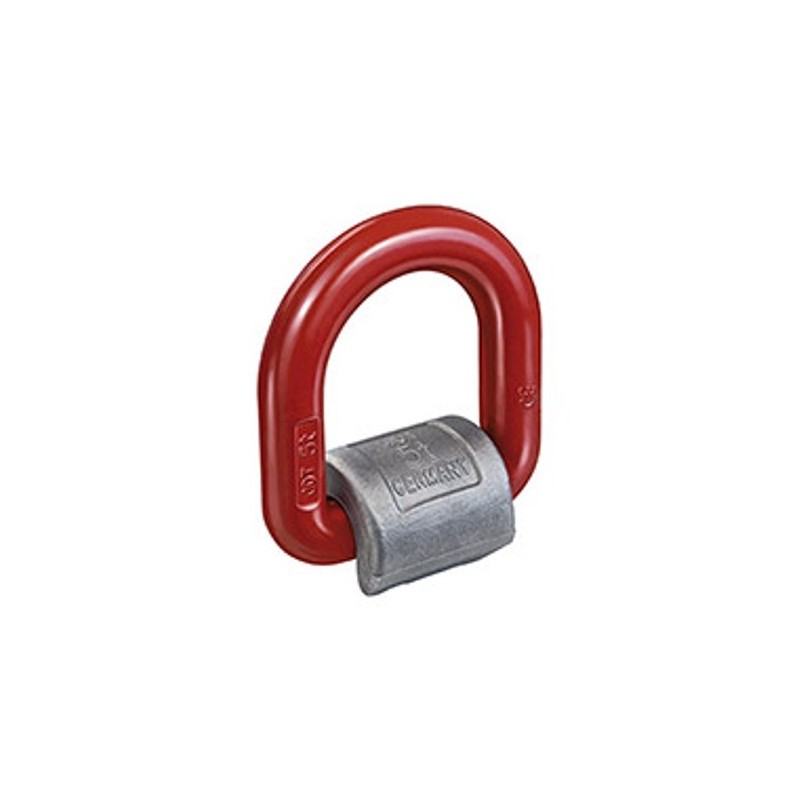

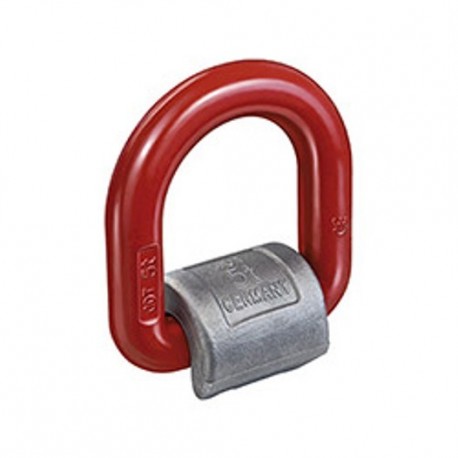

TAPS Attachment-point, weld-on-type - JDT

Weld-onWeld-on sling point in working load limits of 1 - 63 t.

  • Compact design
  • Secured four times against breakage
  • D-link swings 180°

More details

Price:

on demand

More info

Weld-on sling point in working load limits of 1 - 63 t.

  • Compact design
  • Secured four times against breakage
  • D-link swings 180°
  • Weld-on shackle made of material S355JR according to EN 10025
  • Weld-on shackle ≥ TAPS 20 made of material 25 CrMo4, Material no. 1.7218

Product combinations

Model Capacity WLL in kg
TAPS 1 1 120
TAPS 2 2 000
TAPS 3 3 150
TAPS 5 5 300
TAPS 8 8 000
TAPS 15 15 000
TAPS 20 20 000
TAPS 25 25 000
TAPS 30 30 000
TAPS 35 35 000
TAPS 40 40 000
TAPS 50 50 000
TAPS 63 63 000
