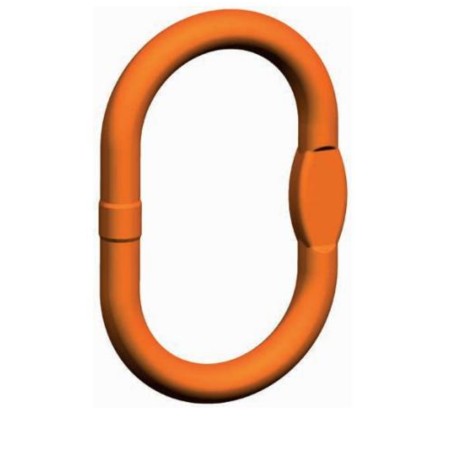

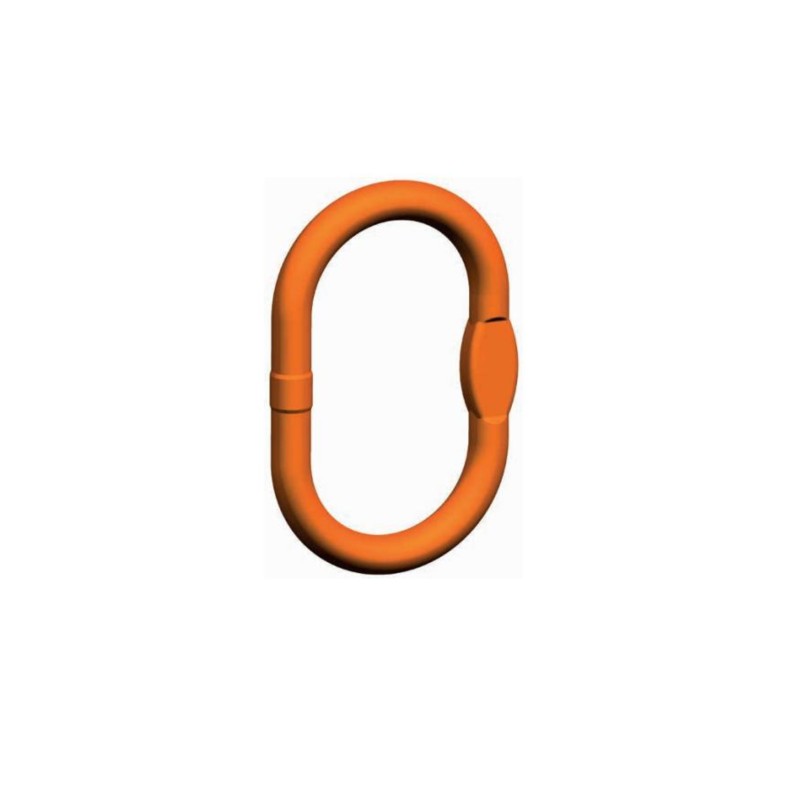

PEWAG VSAW Master link assembly
VSAW Master link assembly -According to EN 1677-4 with increased load capacity, for pewag connex and welded system.
Price:
on demand
More info
VSAW Master link assembly:
- According to EN 1677-4 with increased load capacity.
- For pewag connex and welded system.
- For single hooks acc. to DIN 15401 up to no.50 resp. no.100 - see table.
- For assembling of chain slings with Connex CW.
- For assembling of welded chain slings with transition links BW by pewag.
Product combinations
| Model | Capacity WLL in kg |
|---|---|
| VSAW 1-10/13 | 10 000 |
| VSAW 1-16 | 10 000 |
| VSAW 1-19 | 16 000 |
| VSAW 1-22 | 22 400 |
| VSAW 1-26 | 33 600 |
| VSAW 1-32 | 40 000 |
