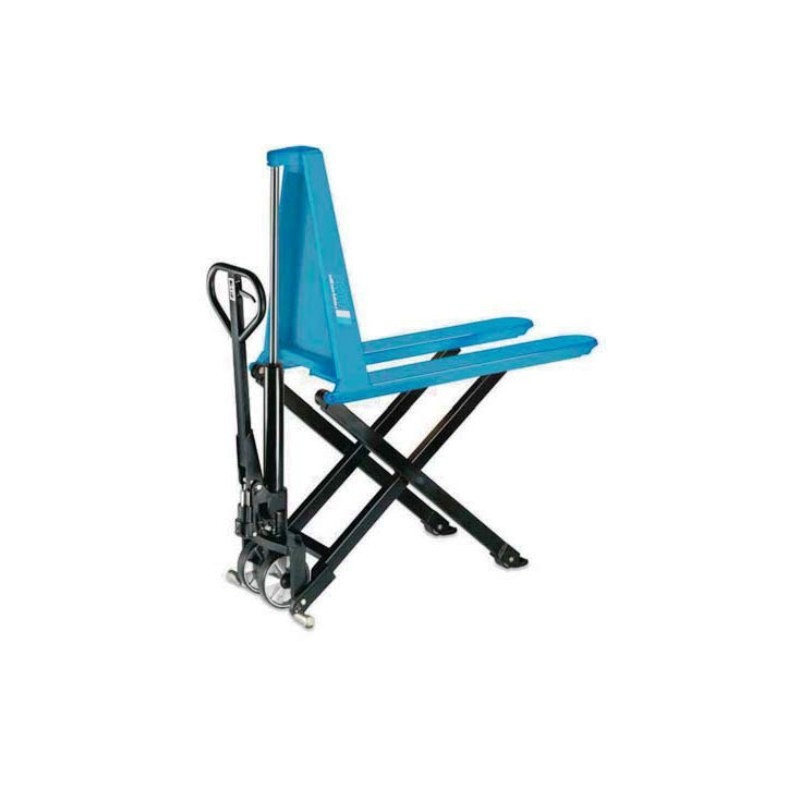

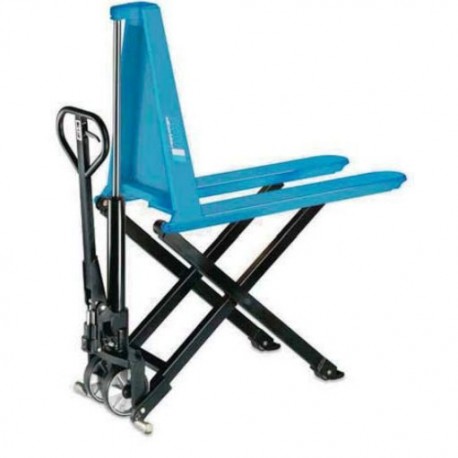

HU  HS 10A Scissor pallet truck with manual-hydraulic lift  PFAFF silberblau View larger

HU HS 10A Scissor pallet truck with manual-hydraulic lift PFAFF silberblau

Capacity 1 000 kg, fork height max. 800 mm

A combination of hand pallet truck and elevating platform for the transport and raising of palletised loads to various departments.

More details

Price:

on demand

More info

A combination of hand pallet truck and elevating platform for the transport and raising of palletised loads to various departments.

Features

  • Safety control handle with the functions: – Quick-lift – lifting – lowering –
  • Lowering speed can be finely metered for sensitive lowering of the load.
  • One-stage hydraulic for increased robustness.
  • Quick-lift for loads up to 250 kg.
  • Overload protection by pressure relief valve.
  • Safety supports guarantee sure standing when the forks are raised.
  • Low noise and smooth running with standard tyres: steer rollers and load rollers – polyurethane.

Product combinations

Model Capacity WLL in kg Scroll wheel, mm Supporting wheels, mm Fork width, mm Fork length, mm Overall width Fork, mm
HU HS 10A 1 000 180x50 78x60 160 1 150 540
