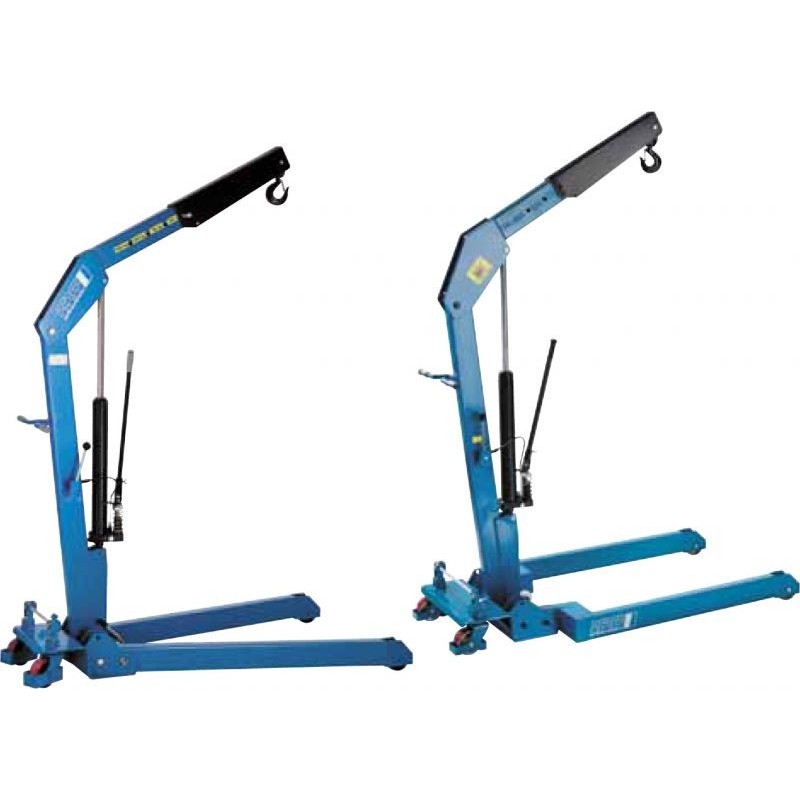

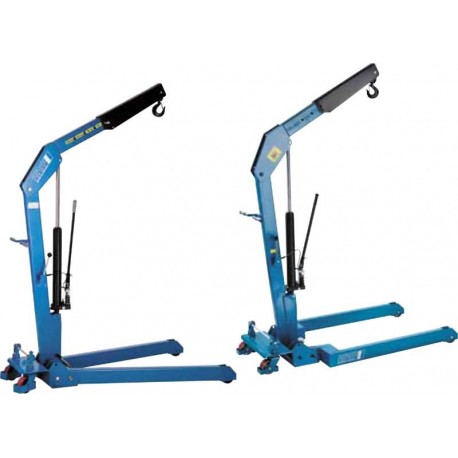

HWK KL S SILVERLINE Hydraulic workshop crane PFAFF silberblau
Capacity 500 and 1 000 kg
For fitting and removing engines and for loading and unloading pallets.
Price:
on demand
More info
For fitting and removing engines and for loading and unloading pallets.
Features
- With slewing hydraulic system and sensitive lowering valve, as standard.
- With folding device for space-saving storage of the crane.
- Chassis variants: V-shaped or parallel.
- With speed increasing ratio
Product combinations
| Model | Chassis form | Capacity with crane arm length A1, kg/mm | Capacity with crane arm length A2, kg/mm | Capacity with crane arm length A3, kg/mm | Capacity with crane arm length A4, kg/mm | Hook height max. B/C, mm |
|---|---|---|---|---|---|---|
| HWK KLS 1,0 II | II | 1000/1130 | 800/1230 | 700/1330 | 500/1430 | 2080/2020 |
| HWK KLS 0,5 II | II | 500/1130 | 400/1230 | 350/1330 | 250/1430 | 2080/2020 |
| HWK KLS 0,5 V | V | 500/1130 | 400/1230 | 350/1330 | 500/1430 | 2080/2020 |
| HWK KLS 1,0 V | V | 1000/1130 | 800/1230 | 700/1330 | 500/1430 | 2080/2020 |
