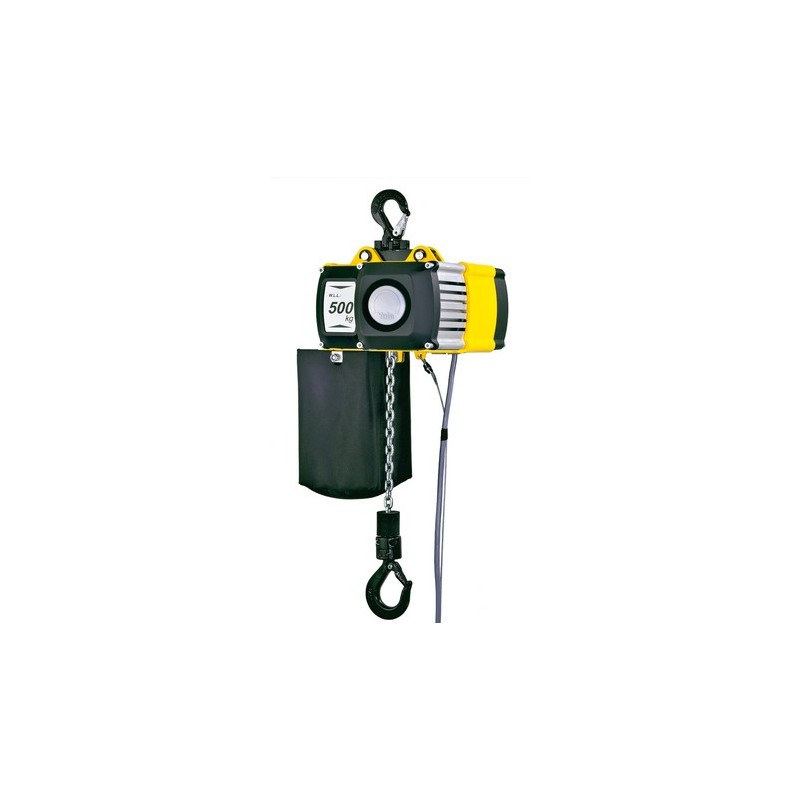

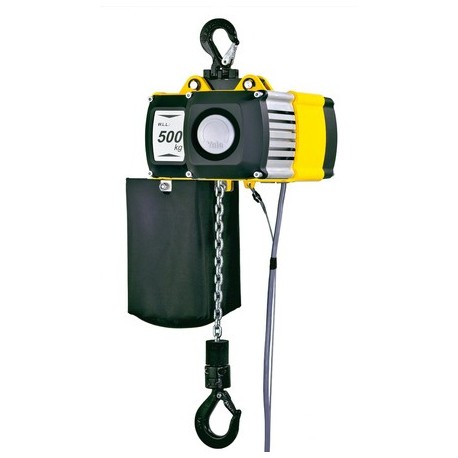

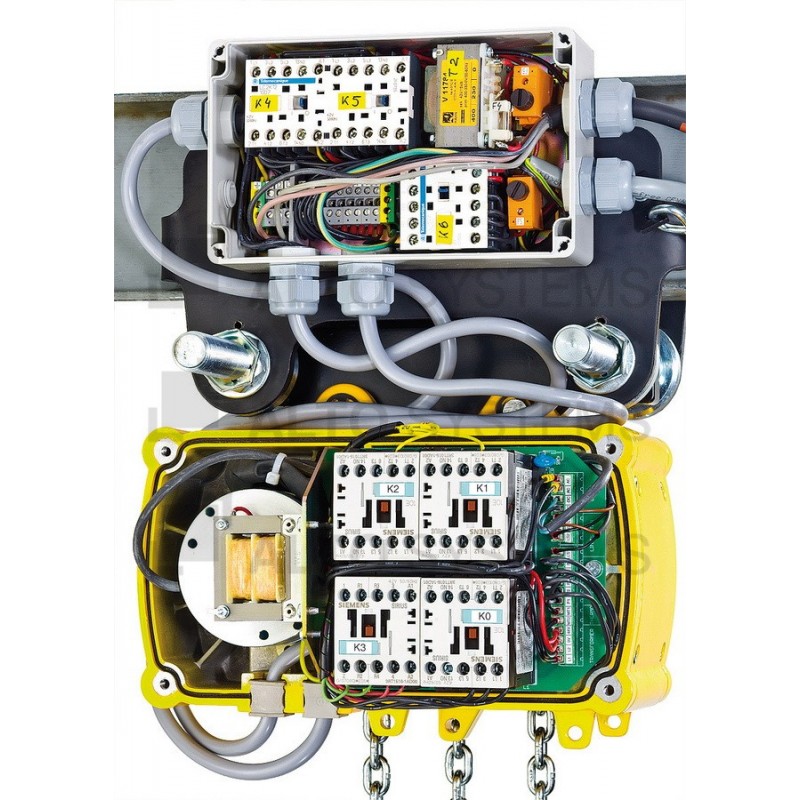

YALE CPV / CPVF Electric chain hoist
Capacity 250 - 2 000 kg
The electric chain hoist model CPV combines modern design and technical innovation. A robust construction makes the series a versatile tool for professional applications. The integrated limit switch for the highest and lowest hook position considerably extends the working life span of the slip clutch, motor and gearbox.
More info
The electric chain hoist model CPV combines modern design and technical innovation. A robust construction makes the series a versatile tool for professional applications. The integrated limit switch for the highest and lowest hook position considerably extends the working life span of the slip clutch, motor and gearbox.
Features
- Classification: 1 Am/M4 (standard), resp. 1 Bm/M3 (for 230 V, 1-phase, 50 Hz). As required (with appropriate changes to lifting capacity resp. duty cycle) the model CPV can also be re-classified up to 3 m/M6.
- Main contactor as standard, for increased safety.
- Increased operating safety through 42 V control voltage (low voltage control), push-button pendant control, IP 65.
- 2 year warranty (excluding wear parts) and a lifetime lubricated gearbox.
- Duty cycle 50% ED for single speed.
- Electromagnetic spring pressure brake holds the load safely even in the event of power failure.
- Standard operating voltage: Euro-voltage 400 V, 3-phase, 50 Hz, alternatively 460 V, 3-phase, 60 Hz. Single speed motors reconnectable to 230 V, 3-phase, 50 Hz.
- Motor protected to IP 55 (acc. to VDE 0530), against ingress of dust and water jets
- The externally adjustable slip clutch is designed to guarantee a permanent connection between the load and the brake.
- The standard, oil bath lubricated (grease lubricated for model CPV/F 2-8) and case hardened gearbox has a helical gearing for particularly smooth running and enhanced lifetime.
- Suspension lug for compact dimensions and easy integration in closed-eye constructions.
- Steel chain guide, model CPV/F 2-8 with chain guide made of fibre coated polyamide for increased wear resistance.
Options
- Stainless steel load chain (no reduction of working load limit).
- Suspension hook
- Flexible chain container.
- Other operating voltages.
- Counter for operating hours and number of starts.
- Radio remote control
- Control for synchronized operation of several hoists.

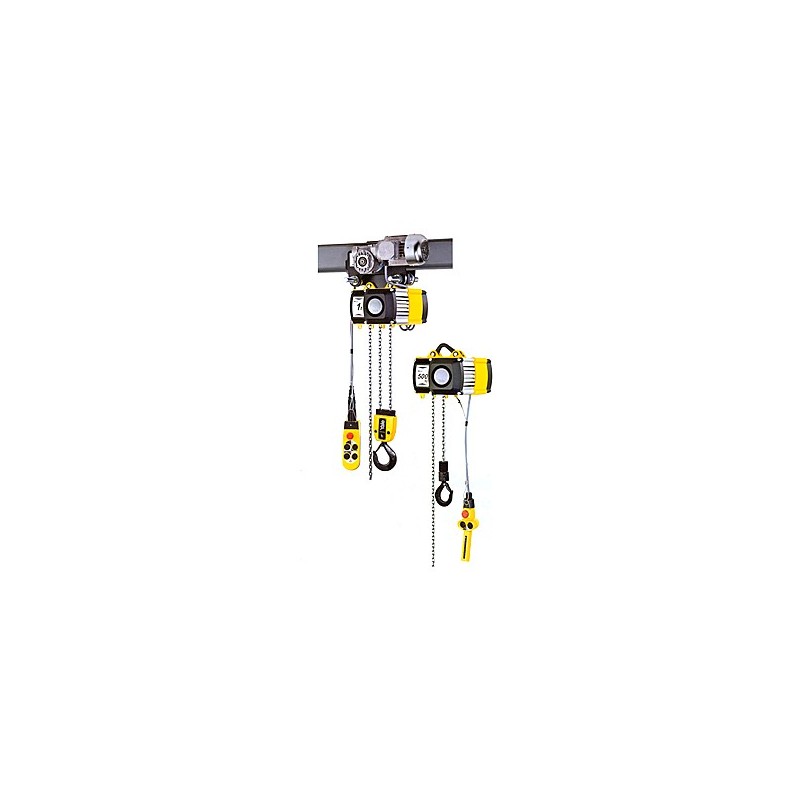

- Manual and electric trolleys.
- Connection to festooned cable systems.
- Suspension for light crane systems
Product combinations
| Model | Capacity WLL in kg | Number of chain falls | Beam flange width mm | Lifting speed main lift m/min | Lifting speed fine lift m/min |
|---|---|---|---|---|---|
| CPVF 2-18 | 250 | 1 | 18 | 4,5 | |
| CPVF B-2-8 | 250 | 1 | 180 - 300 | ||
| CPV 2-8 | 250 | 1 | 8 | ||
| CPVF A-2-8 | 250 | 1 | 58 - 180 | 8 | 2 |
| CPV 2-18 | 250 | 1 | 18 | ||
| CPVF B-5-8 | 500 | 1 | 180 - 300 | ||
| CPV 5-8 | 500 | 1 | 8 | ||
| CPV 5-4 | 500 | 2 | 4 | ||
| CPVF 5-18 | 500 | 1 | 18 | 4,5 | |
| CPVF B-5-4 | 500 | 2 | 180 - 300 | ||
| CPVF A-5-8 | 500 | 1 | 58 - 180 | 8 | 2 |
| CPV 5-18 | 500 | 1 | 18 | ||
| CPVF A-5-4 | 500 | 2 | 58 - 180 | 4 | 1 |
| CPVF A-10-8 | 1 000 | 1 | 58 - 180 | 8 | 2 |
| CPVF B-10-8 | 1 000 | 1 | 180 - 300 | ||
| CPVF A-10-4 | 1 000 | 2 | 58 - 180 | 4 | 1 |
| CPV 10-8 | 1 000 | 1 | 8 | ||
| CPVF B-10-4 | 1 000 | 2 | 180 - 300 | ||
| CPV 10-4 | 1 000 | 2 | 4 | ||
| CPV 20-2 | 2 000 | 2 | 4 | ||
| CPVF B-20-4 | 2 000 | 2 | 180 - 300 | ||
| CPVF A-20-4 | 2 000 | 2 | 58 - 180 | 4 | 1 |
