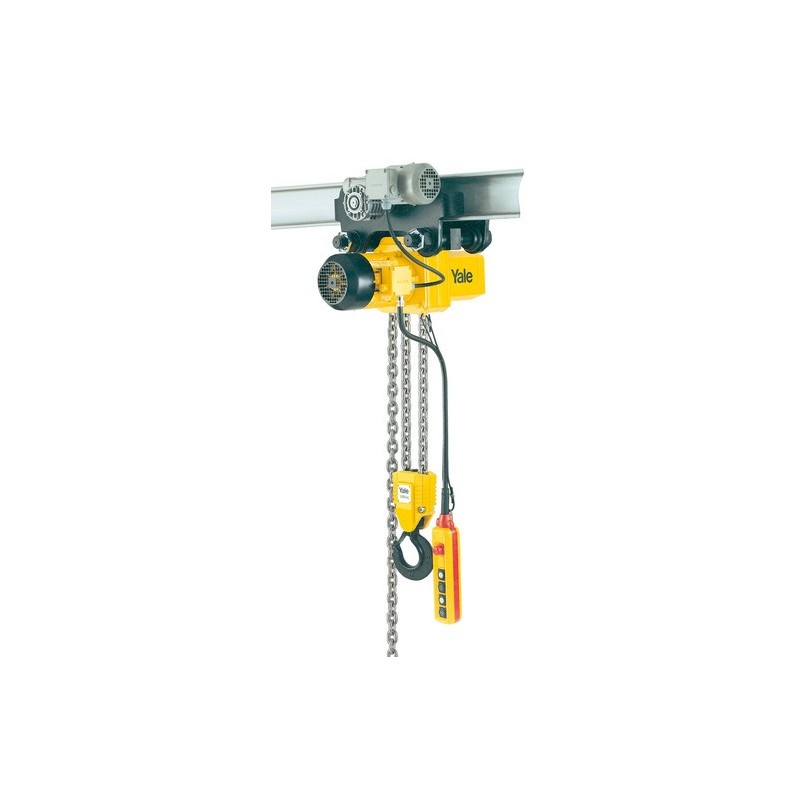

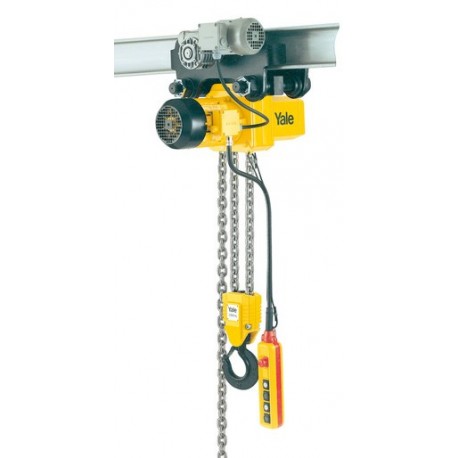

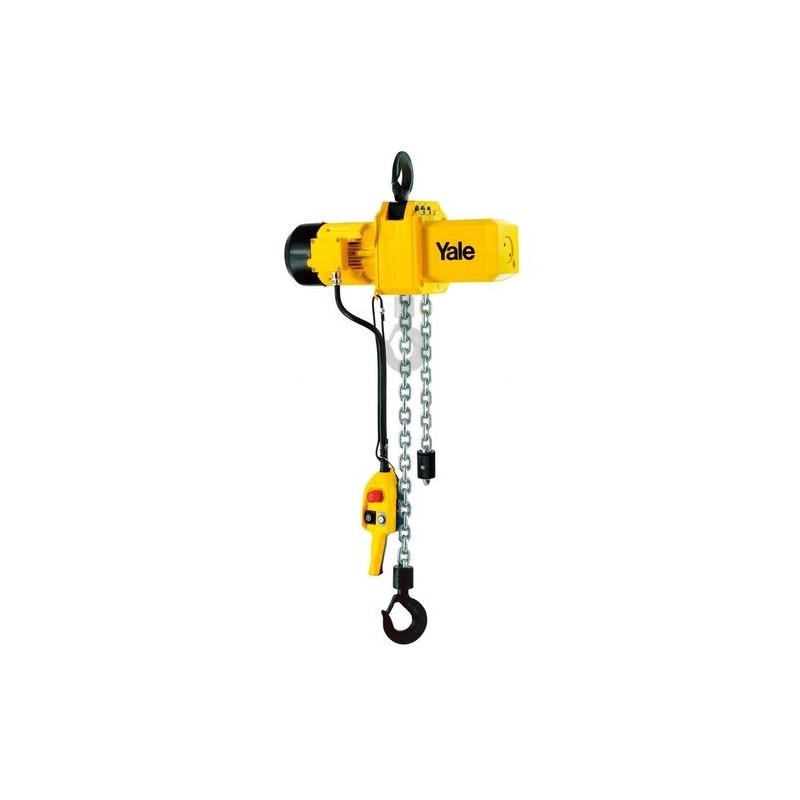

YALE CPE / CPEF Electric chain hoist

Capacity 1 600 - 5 000 kg

The CPE / CPEF series is a range of high quality products for professional applications. They are highly efficient and engineered for a long working life. The hoists are composed of three main component parts which makes service easy

and inexpensive.

More details

Price:

on demand

More info

The CPE / CPEFseries is a range of high quality products for professional applications. They are highly efficient and engineered for a long working life. The hoists are composed of three main component parts which makes service easy
and inexpensive.

 Features

  • Classification: 1 Am/M4, except models CPE(F) 20-8, CPE(F) 30-5 and CPE(F) 40-4 classif ication 1 Bm/M3. As required the model CPE (with appropriate changes to lifting capacity resp. duty cycle) can also be re-classified.
  • Direct control or 42 V low volt age control.
  • 2 year warranty (excluding wear parts) as well as a lifetime lubricated gear box.
  • Motor fitted with a bimetallic thermal protection (useable in connection with low voltage control).
  • Duty cycle 40% at one operating speed.
  • The heavy duty squirrel cage motor has an adjustable spring pressure brake that holds the load secure evenin the event of a power failure.
  • Standard operating volt age: Euro-voltage 400 Volt, 3-phase, 50 Hz.
  • Motor protected to IP 54, insulation class F, against ingress of dust and splashing. (acc. to VDE 0530).
  • Encapsulated pendant control protected to IP 65, against ingress of dust and water jets.
  • Up to 3000 kg only one chain fall, leading to a low overall height.
  • The 5-pocket load chain sheave, manufactured from wear resistant case hardening steel, is matched perfectly to the load chain to guarantee smooth and precise chain motion.
  • The standard, oil bath lubricated planetary gearbox is particularly smooth running.
  • Drop forged suspension and load hooks are made from non-aging, high tensile steel and fitted with robust safety latches.
  • The standard case hardened and zinc-plated link chain is matched perfectly to the load chain to guarantee smooth and precise chain motion. All requirements of national and international standards and regulations are fulfilled.

Options

  • Stainless steel load chain.
  • Suspension hook rotated 90°.
  • Flexible chain container.
  • Other operating voltages.
  • Limit switches for highest and lowest hook positions (in combination with low voltage control).
  • Motor with stainless steel brake.
  • Radio remote control
  • Control for synchronized operation of several hoists.
  • Manual and electric trolleys.
  • Integrated low headroom trolley.
  • Connection to festooned cable systems.

Product combinations

Model Capacity WLL in kg Number of chain falls Beam flange width mm Lifting speed main lift m/min Lifting speed fine lift m/min
CPE B-16-8 1 600 1 180 - 300
CPEF A-16-8 1 600 1 98 - 180 8 2
CPE A-16-8 1 600 1 98 - 180 8
CPEF B-16-8 1 600 1 180 - 300
CPEF B-20-8 2 000 1 180 - 300
CPEF A-20-8 2 000 1 98 - 180 8 2
CPE B-20-8 2 000 1 180 - 300
CPE A-20-8 2 000 1 98 - 180 8
CPEF B-25-5 2 500 1 180 - 300
CPE A-25-5 2 500 1 98 - 180 5
CPE B-25-5 2 500 1 180 - 300
CPEF A-25-5 2 500 1 98 - 180 5 1,25
CPEF B-30-5 3 000 1 180 - 300
CPEF A-30-5 3 000 1 98 - 180 5 1,25
CPE B-30-5 3 000 1 180 - 300
CPE A-30-5 3 000 1 98 - 180 5
CPEF B-32-4 3 200 1 180 - 300
CPE A-32-4 3 200 2 98 - 180 4
CPE B-32-4 3 200 2 180 - 300
CPEF A-32-4 3 200 2 98 - 180 4 1
CPEF B-40-4 4 000 2 180 - 300
CPE A-40-4 4 000 2 98 - 180 4
CPEF A-40-4 4 000 2 98 - 180 4 1
CPE B-40-4 4 000 2 180 - 300
CPEF B-50-2 5 000 2 180 - 300
CPEF A-50-2 5 000 2 98 - 180 2,5 0,6
CPE A-50-2 5 000 2 98 - 180 2,5
CPE B-50-2 5 000 2 180 - 300
CPEF B-75-1,6 7 500 3 180 - 300
CPE A-75-1,6 7 500 3 98 - 180 1,6
CPEF A-75-1,6 7 500 3 98 - 180 1,6 0,4
CPE B-75-1,6 7 500 3 180 - 300
CPEF A-100-2 10 000 4 98 - 180 2,5 0,6
CPE A-100-2 10 000 4 98 - 180 2,5
CPE B-100-2 10 000 4 180 - 300
CPEF B-100-2 10 000 4 180 - 300
