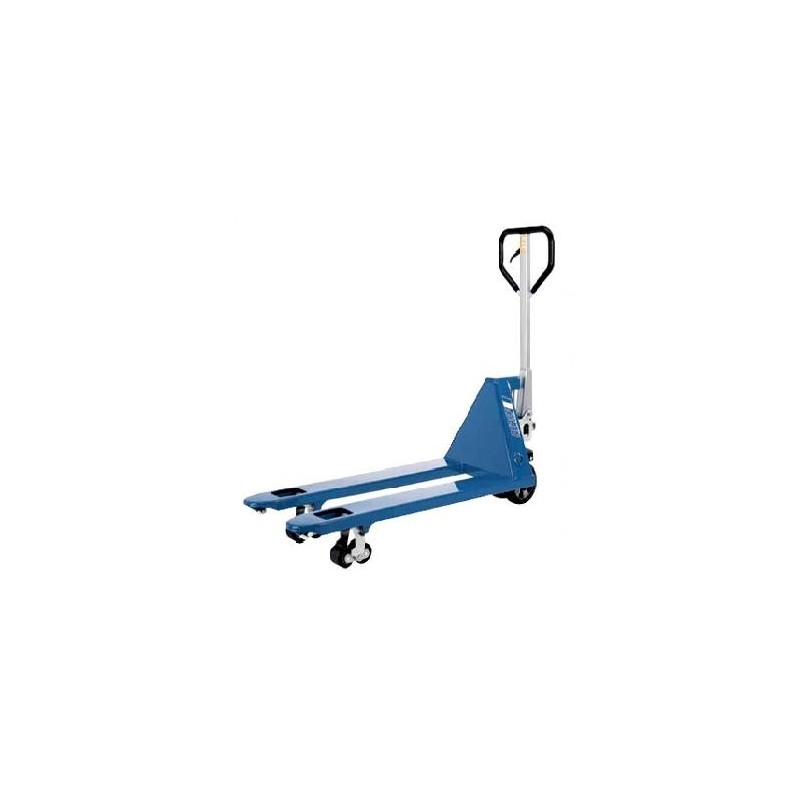

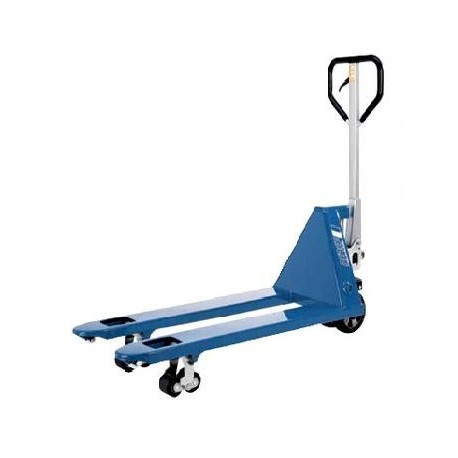

PROLINE Hand pallet truck with short forks PFAFF silberblau

Capacity 2500 kg

For the professional transportation of short palletised goods and box pallets under demanding conditions.

Price:

on demand

For the professional transportation of short palletised goods and box pallets under demanding conditions.

Ergonomic safety control handle for one-hand operation of lifting, driving and lowering.
Ergonomic rubber control handle for safe handling.
Low maintenance high performance hydraulic pump with hard chromium plated piston and pressure relief valve.
Frame and forks in robust steel construction, adjustable connecting rods, especially hardened axles and the high quality powder coating ensure a long life expectancy.
Fork lenghts from 800 up to 1000 mm for transportation of small loads.
Steering angle of 105 degree to each side for easy handling in confined spaces.
Available with tandem (TS) or single rollers (ES).

Model	Capacity WLL in kg	Scroll wheel, mm	Supporting wheels, mm	Fork width, mm	Fork length, mm	Overall width Fork, mm
HU 25-80 EP	2 500	200x50	82x93	160	800
HU 25-90-EP	2 500	200x50	82x93	160	900	540
HU 25-100 EP	2 500	200x50	82x93	160	1 000	540
HU 25-80 TP	2 500	200x50	82x70	160	800	540
HU 25-90 TP	2 500	200x50	82x70	160	900	540
HU 25-100 TP	2 500	200x50	82x70	160	1 000	540
HU 25-60 EP	2 500	200x50	82x70	160	600	540
