PEWAG PLE High-tensile lifting points

Capacity 1 120 - 15 000 kg

High-tensile eyebolts pewag profilift eta, for welding onto machine
parts or vehicle bodies. Ideal for hanging of lifting and lashing parts.
Due to the integrated spring, the ring will be kept in each requested
position.


More details

More info

High-tensile eyebolts pewag profilift eta, for welding onto machine
parts or vehicle bodies. Ideal for hanging of lifting and lashing parts.
Due to the integrated spring, the ring will be kept in each requested
position.

The instructions according to DIN EN ISO 14341 are valid for the
welding. The welding may only be carried out by a welding operator
with a valid qualification according to EN 287-1.

The lifting points will be packed individually and together with a
user manual and welding instructions.

Permissible usage

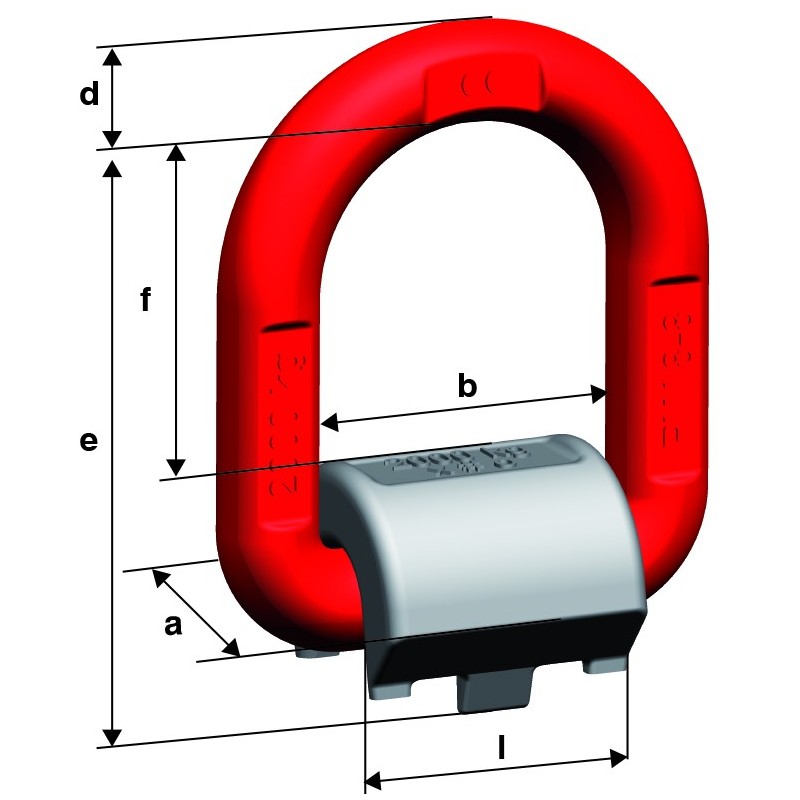

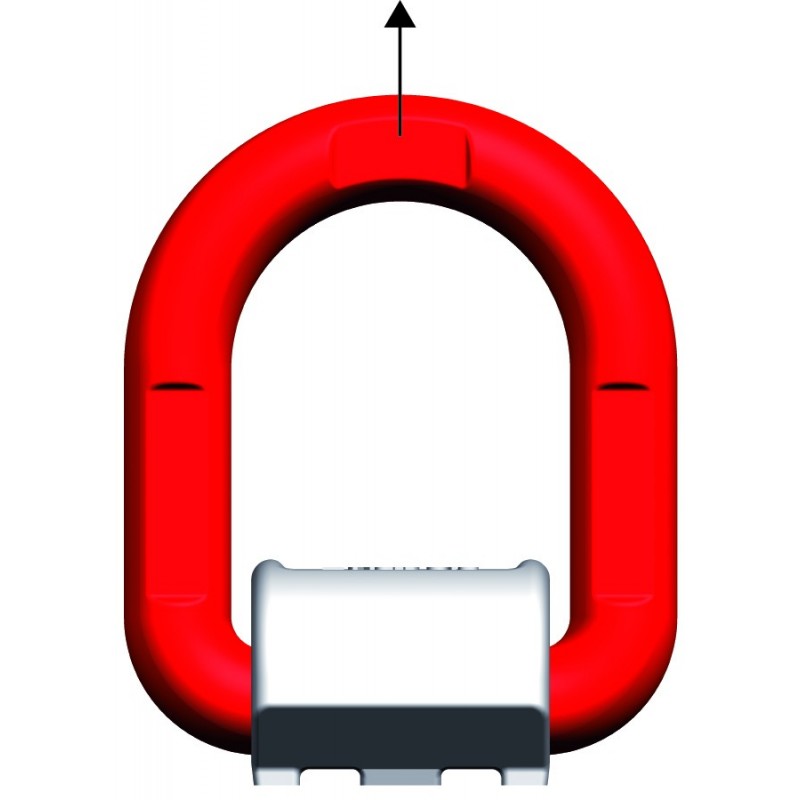

Load capacity acc. to the inspection certificate respectively table of
WLL in the mentioned directions of pull – see picture 1 and 2.

Non permissible usage
Make sure when choosing the assembly that improper load can not
arise e.g. if:
• The direction of pull is obstructed

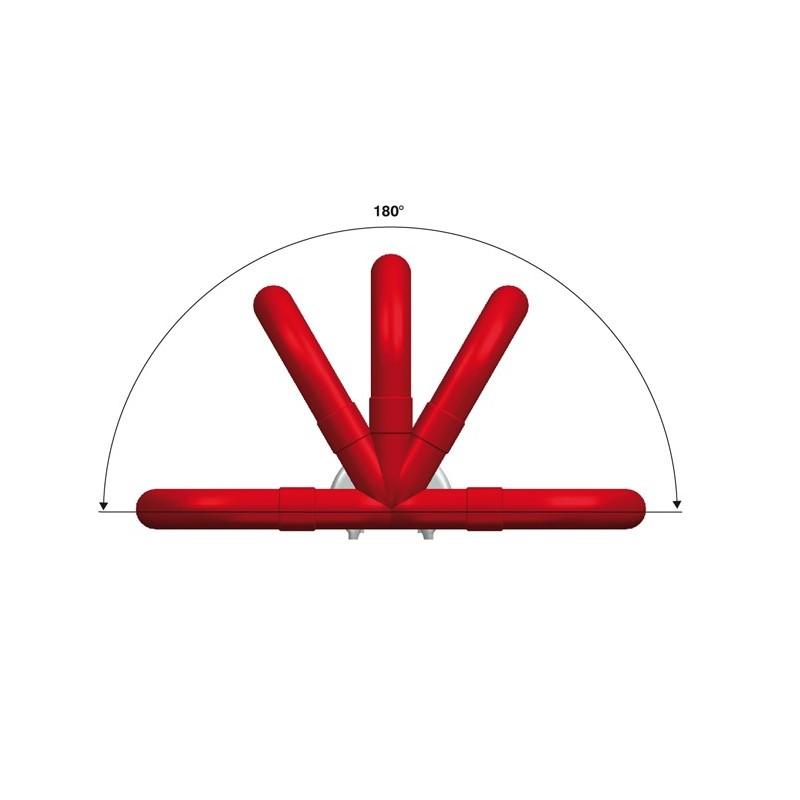

• Direction of pull is not in the foreseen area (see picture 3)
• Loading ring rests against edges and load

Product combinations

Model Capacity WLL in kg
PLE 6 1 120
PLE 8 2 000
PLE 10 3 150
PLE 13 5 300
PLE 16 8 000
PLE 22 15 000
