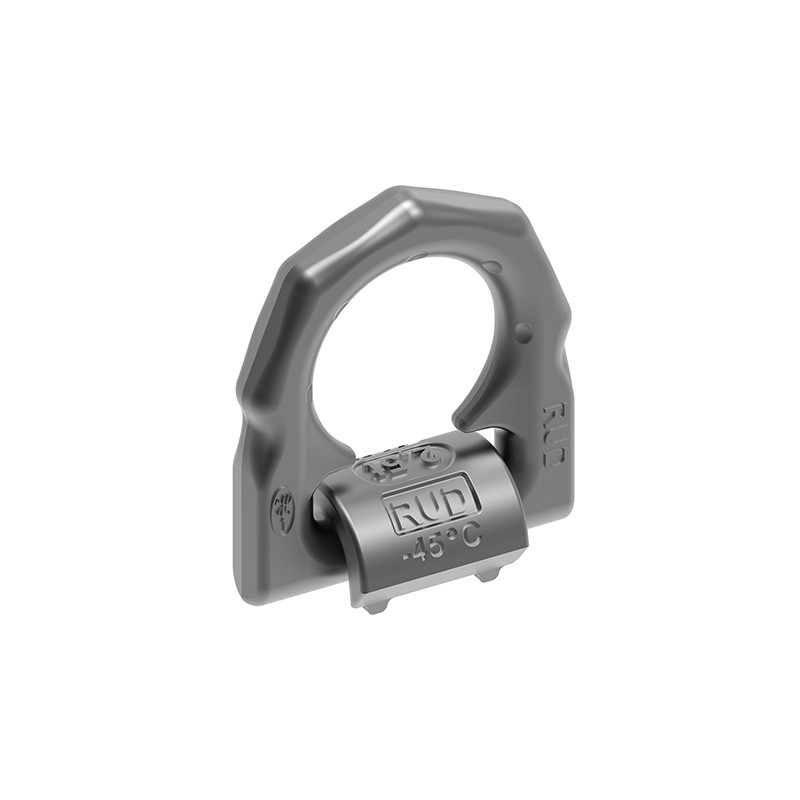

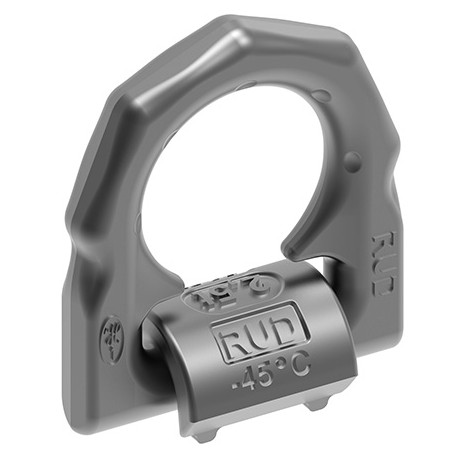

VLBS-U-LT Load ring for welding,especially for low temperature -45°C - RUD View larger

VLBS-U-LT Load ring for welding,especially for low temperature -45°C - RUD

Load ring VLBS-U-LT for low temperatures as far as -45°C (low temperature marking at weld-on block) Impact energy ≥ 27 Joule at -45°C (can be attested with a 3.1 test certificate) Analog to a conventional VLBS-U plus useable for low temperatures

More details

Price:

on demand

More info

Load ring VLBS-U-LT for low temperatures as far as -45°C (low temperature marking at weld-on block)

  • Impact energy ≥ 27 Joule at -45°C (can be attested with a 3.1 test certificate)
  • Analog to a conventional VLBS-U plus useable for low temperatures
  • Simple and easy weld assembly
  • Due to inside positioned patented distance knops, improved support effect
  • 100 % electromagnetic crack inspected
  • Suspension ring phosphated

Product combinations

Model Capacity WLL in kg
VLBS-U-LT 2,5 2 500
VLBS-U-LT 4 4 000
VLBS-U-LT 6,7 6 700
VLBS-U-LT 10 10 000
