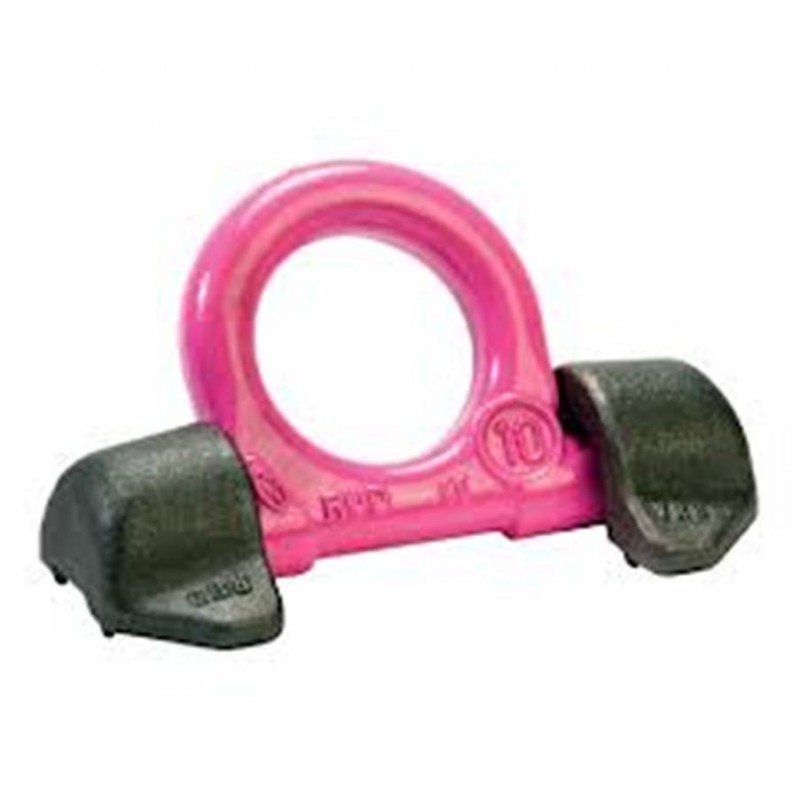

VRBS - Load ring for welding - RUD View larger

VRBS - Load ring for welding - RUD

An enhancement of the well established RBS series with an up to 30% increment of the WLL! The two points of attachment facilitate an even and optimal force distribution into the work piece and thus, usage of thinner base plates is possible.
A forged, pink coated ring bracket according to EN1677-1. The welding block is forged out of a good welding material 1.0577+N (St 52-3).

More details

Price:

on demand

More info

  • An enhancement of the well established RBS series with an up to 30% increment of the WLL!
  • The two points of attachment facilitate an even and optimal force distribution into the work piece and thus, usage of thinner base plates is possible.
  • A forged, pink coated ring bracket according to EN1677-1.
  • The welding block is forged out of a good welding material 1.0577+N (St 52-3).
  • Low profile, high dynamic and static strength.
  • The ring is stowable and thus avoiding the hazard of tripping.
  • For further information refer to the product information sheet.

Product combinations

Model Capacity WLL in kg
VRBS 4 4 000
VRBS 6,7 6 700
VRBS 10 10 000
VRBS 16 16 000
VRBS 31,5 31 500
VRBS 50 50 000
