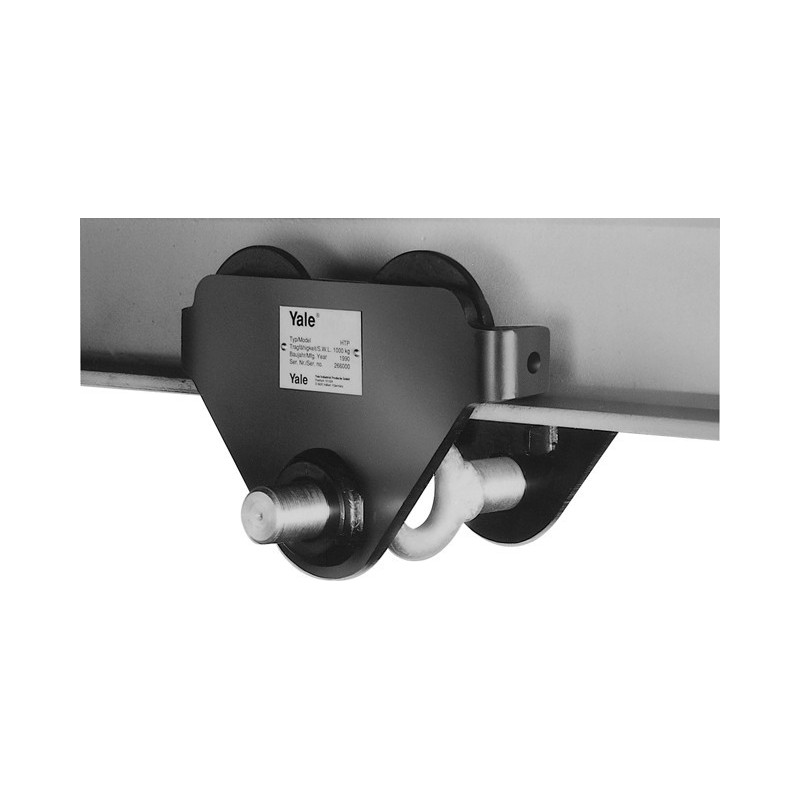

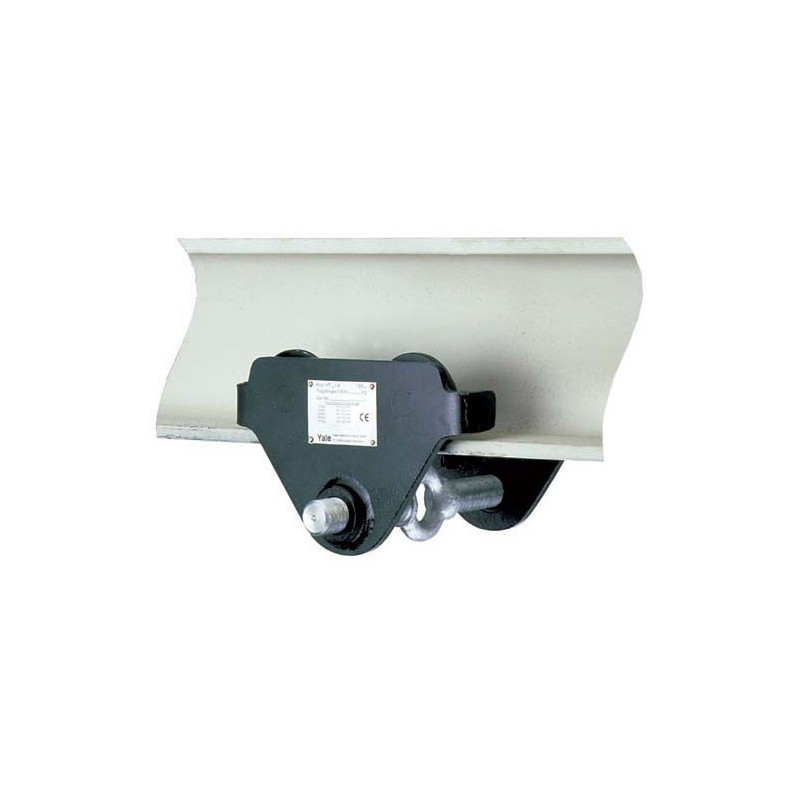

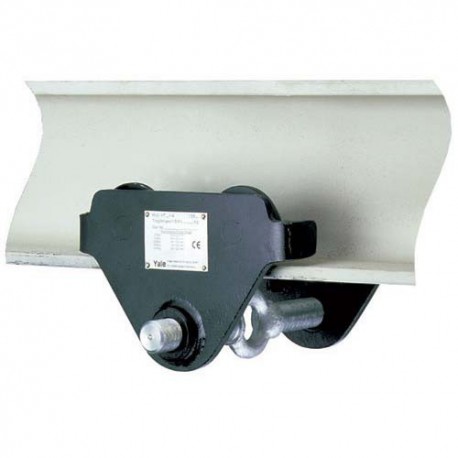

YALE HTP geared type trolley

Capacity 500 - 20 000 kg


The trolley enables the exact positioning or easy traversing of large loads with either manual or powered hoisting equipment.

More details

Price:

on demand

More info

The trolley enables the exact positioning or easy traversing of large loads with either manual or powered hoisting equipment.

  • It has excellent rolling features due to machined steel wheels mounted on prelubricated, encapsulated ball bearings.
  • Adjustable to fit a wide range of beam widths and profiles (e.g. INP, IPE and IPB).
  • Adjustments are made by rotating the clevis load bar which also ensures the centred positioning of the hoist in the clevis no creeping to the left or the right.
  • The trolley wheels are designed for a max. beam profile incline of 14 % (DIN 1025 - part 1).ň
  • Trolleys are in accordance with the UVV and machinery directives.

Options

  • Rotating hand chain guide.
  • Stainless steel hand chains.
  • Buffers
  • Corrosion resistant version
  • Explosion proof version
  • Locking device to secure the trolley in position on the beam (park position e.g. on ships).

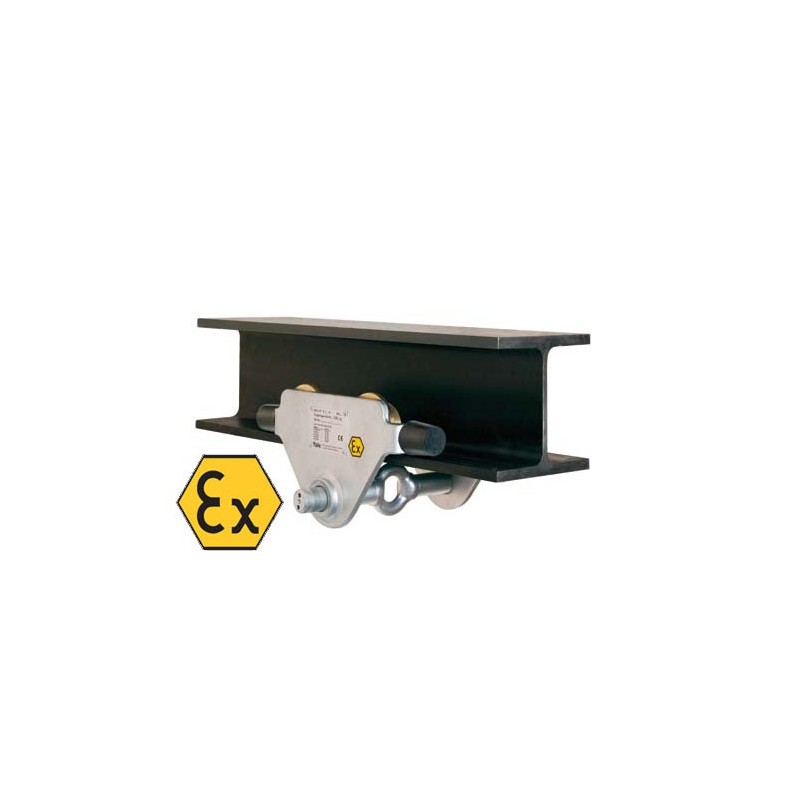

Lanové kladkostroje do výbušného prostředí    Available in explosion proof version.

Uložiť

Uložiť

Uložiť

Uložiť

Uložiť

Uložiť

Uložiť

Uložiť

Uložiť

Uložiť

Uložiť

Product combinations

Model Capacity WLL in kg Beam flange width mm
HTP 500 500 50 - 220
HTPB 500 500 160 - 300
HTPB 1000 1 000 160 - 300
HTP 1000 1 000 50 - 220
HTP 2000 2 000 66 - 220
HTPB 2000 2 000 160 - 300
HTP 3000 3 000 74 - 220
HTPB 3000 3 000 160 - 300
HTPB 5000 5 000 180 - 300
HTP 5000 5 000 90 - 220
