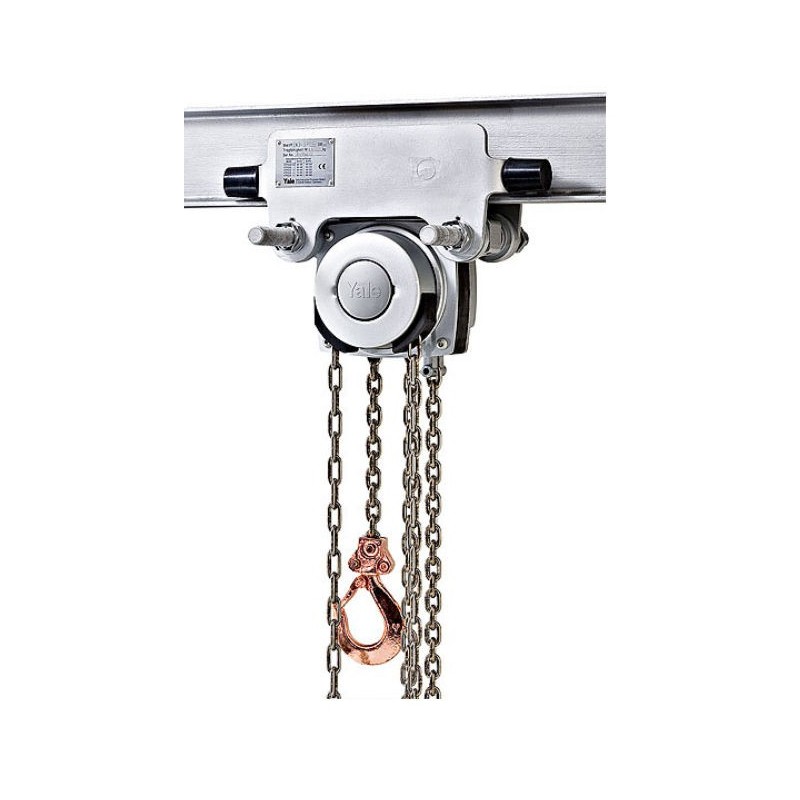

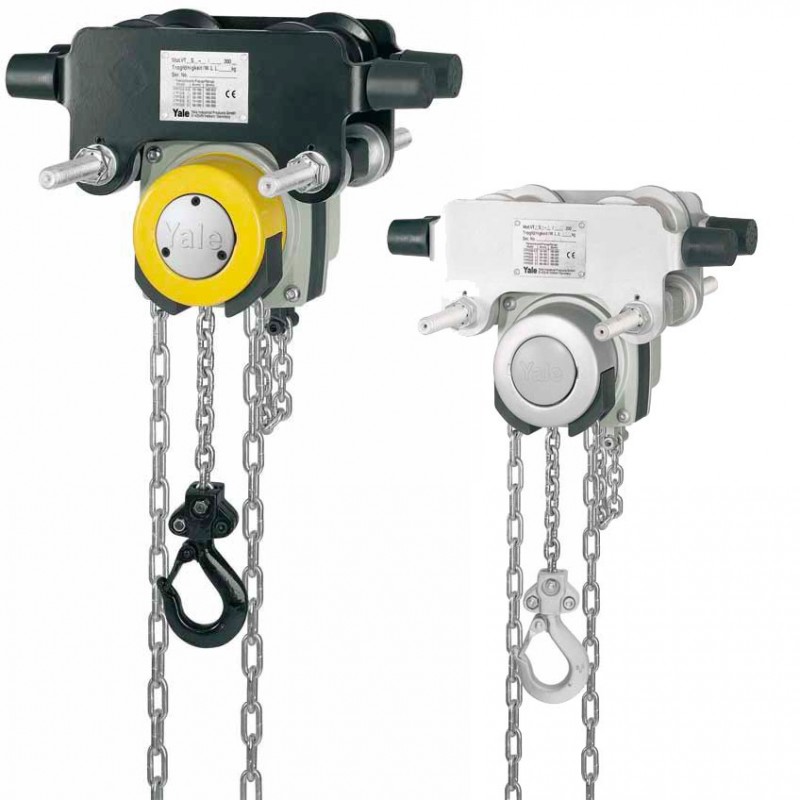

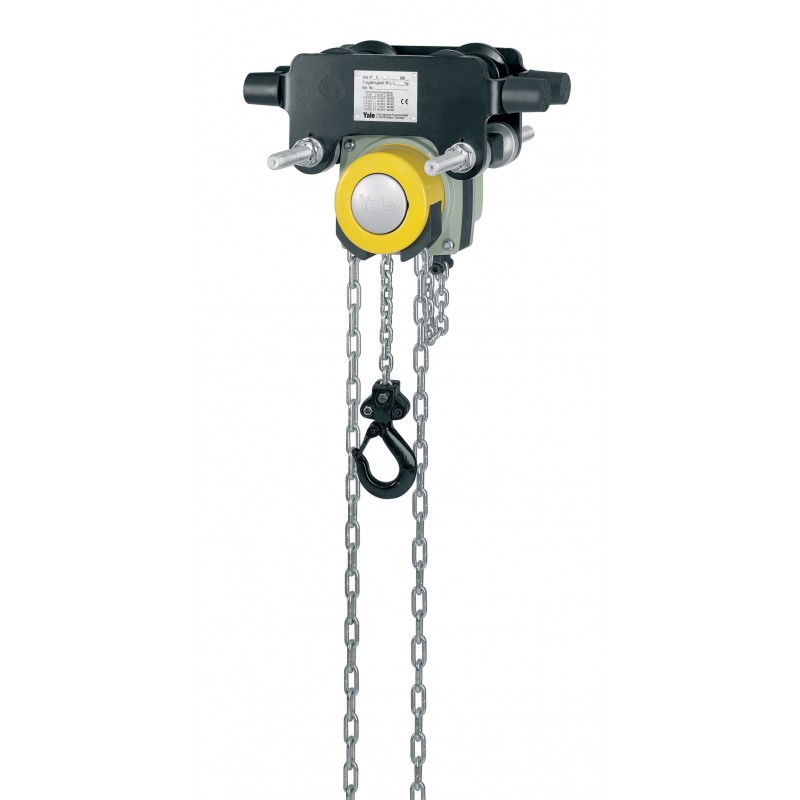

YALE Yalelift IT Hand chain

Capacity 500 - 20 000 kg

The combination of the Yalelift 360 with a low headroom manual trolley provides even more flexibility in the application of the Yalelif t 360. All units of this series up to a capacity of 3 000 kg are provided with single chain fall and the min. headroom (Dim. A) has been further reduced. Ideal for applications with low ceilings and limited headroom.



More details

Price:

on demand

More info

The combination of the Yalelift 360 with a low headroom manual trolley provides even more flexibility in the application of the Yalelif t 360.

  • All units of this series up to a capacity of 3 000 kg are provided with single chain fall and the min. headroom (Dim. A) has been further reduced. Ideal for applications with low ceilings and limited headroom.
  • The proven and almost stepless adjustment system allows quick and easy assembly of the trolley.
  • Trolleys up to 5 tare of fered for two beam ranges. Range A for a flange width up to 180 mm is standard and covers approx. 80% of all requirements. Conversion to range B for beam width up to 300 mm can be easily accomplished.

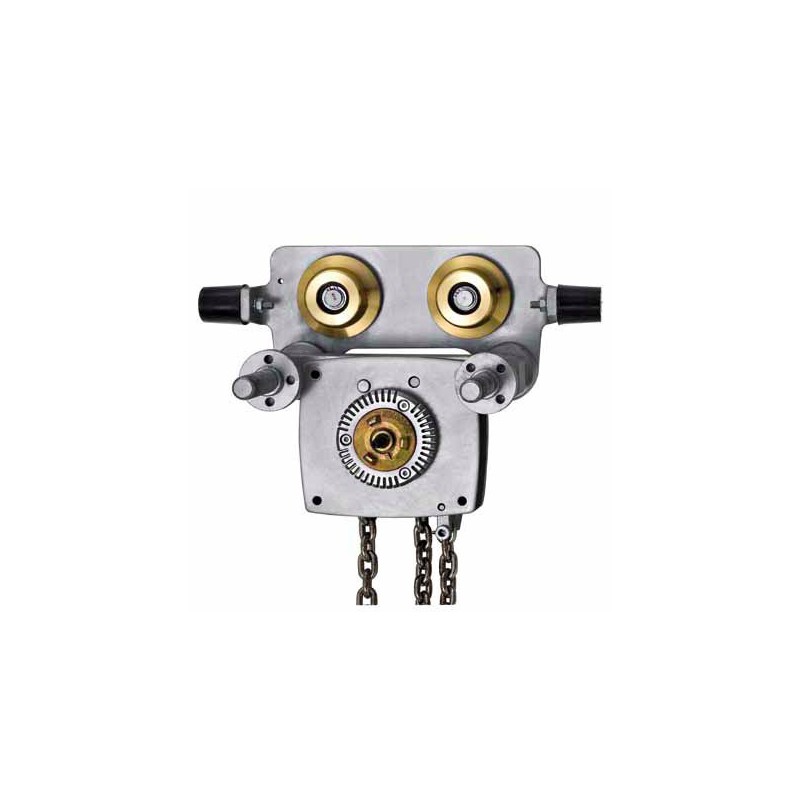

  • The trolley wheels are designed for a max. beam profile incline of 14% (DIN 1025 - part 1), excellent rolling features are guaranteed by prelubricated, encapsulated ball bearings.
  • Anti-drop and anti-tilt devices as standard.

 Options

  • Adjustable overload prevention device.
  • Chain container.
  • Corrosion resistant version.
  • Explosion protection.
  • Beam locking device to secure the unloaded trolley in a fixed position on the beam (park position e.g. on ships). Available up to a capacity of 5 000 kg.

Lanové kladkostroje do výbušného prostředí    Available in explosion proof version.

Uložiť

Product combinations

Model Capacity WLL in kg Number of chain falls Beam flange width mm
YLIT500 500 1 50 - 180
YLITB500 500 1 180 - 300
YLIT1000 1 000 1 50 - 180
YLITB1000 1 000 1 180 - 300
YLIT2000 2 000 1 58 - 180
YLITB2000 2 000 1 180 - 300
YLITB3000 3 000 1 180 - 300
YLIT3000 3 000 1 74 - 180
YLITB5000 5 000 2 180 - 300
YLIT5000 5 000 2 98 - 180
YLIT10000 10 000 3 125 - 310
YLIT20000 20 000 6 180 - 310
