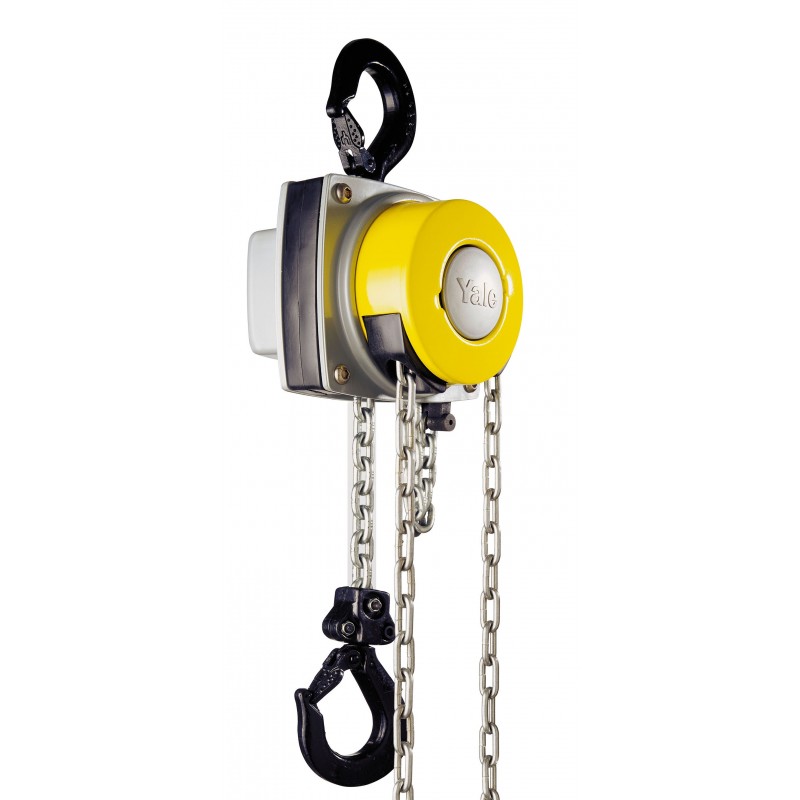

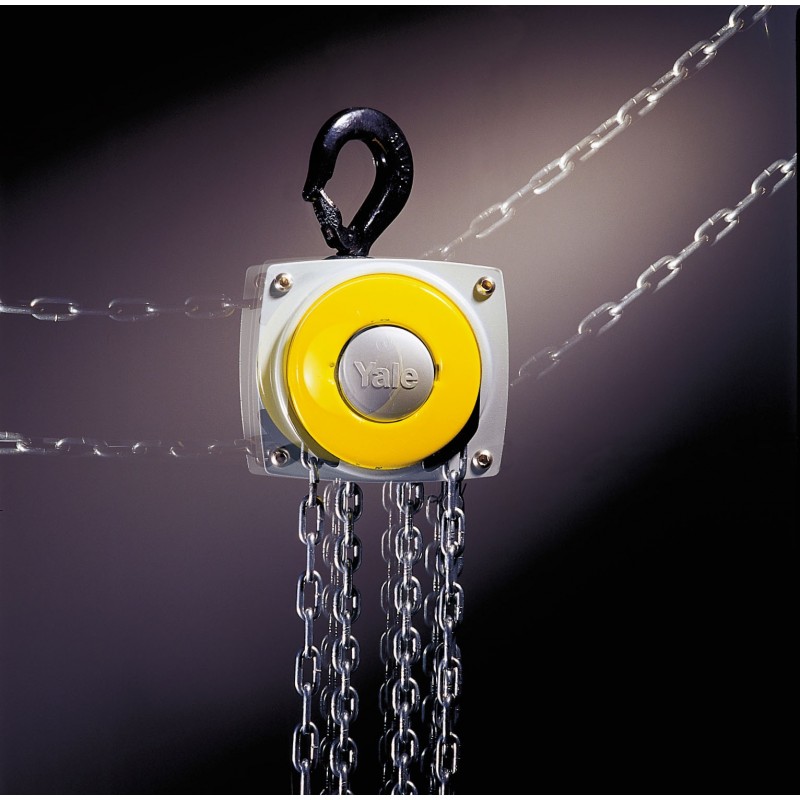

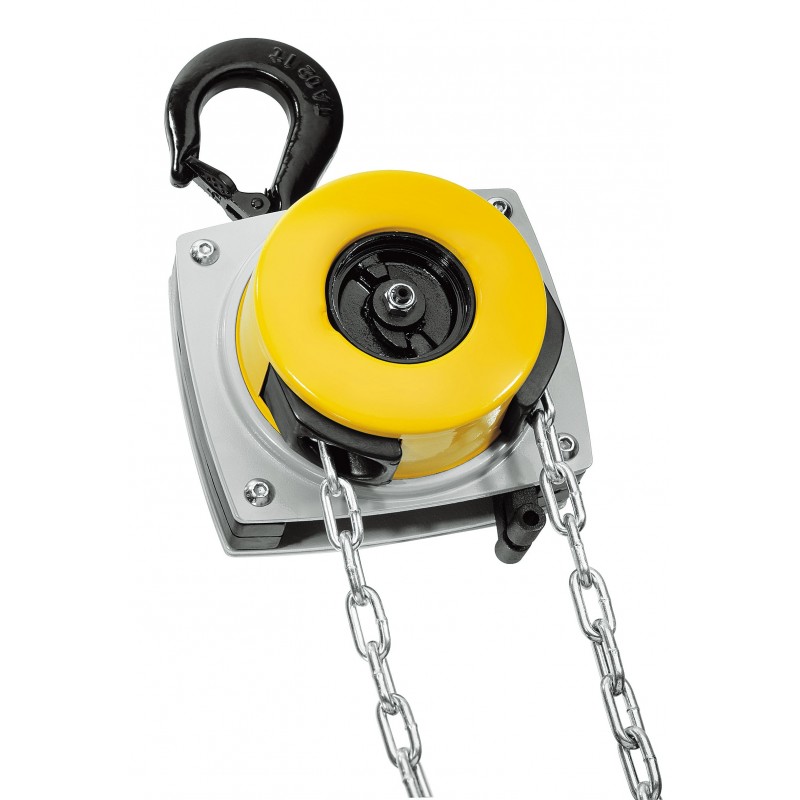

YALE Yalelift 360 Hand chain hoist

Capacity 500 - 20 000 kg

Areas of operation as well as operator conditions have been improved far beyond those of a classical hand chain hoist. The enclosed robust stamped steel housing protects all internal components even in the toughest conditions. The extremely low headroom allows maximum use of the lifting height.





More details

Price:

on demand

More info

Areas of operation as well as operator conditions have been improved far beyond those of a classical hand chain hoist.

Features

  • The enclosed robust stamped steel housing protects all internal components even in the toughest conditions.

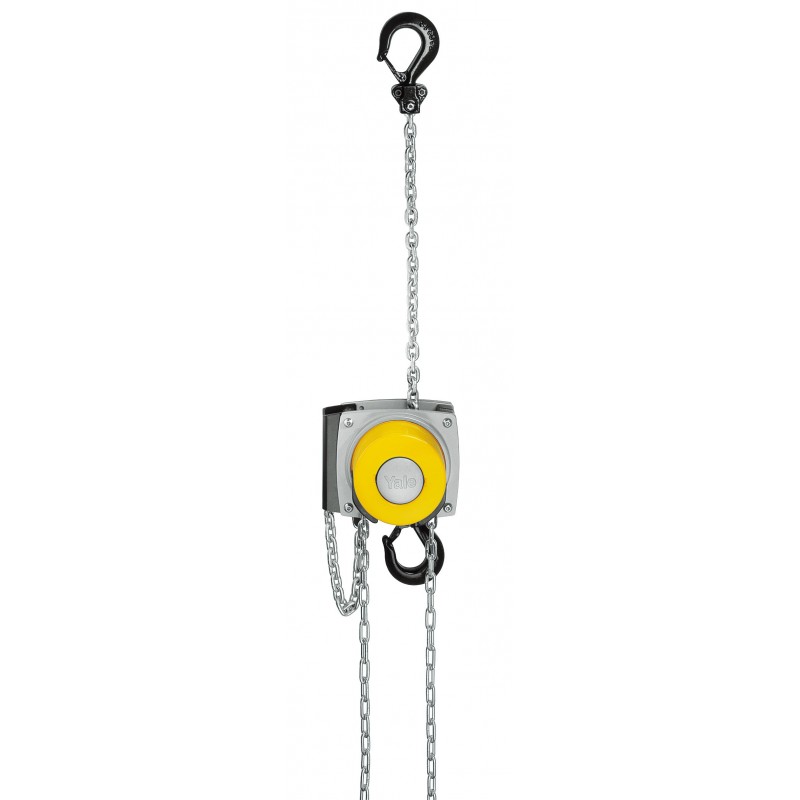

  • The extremely low headroom allows maximum use of the lifting height.

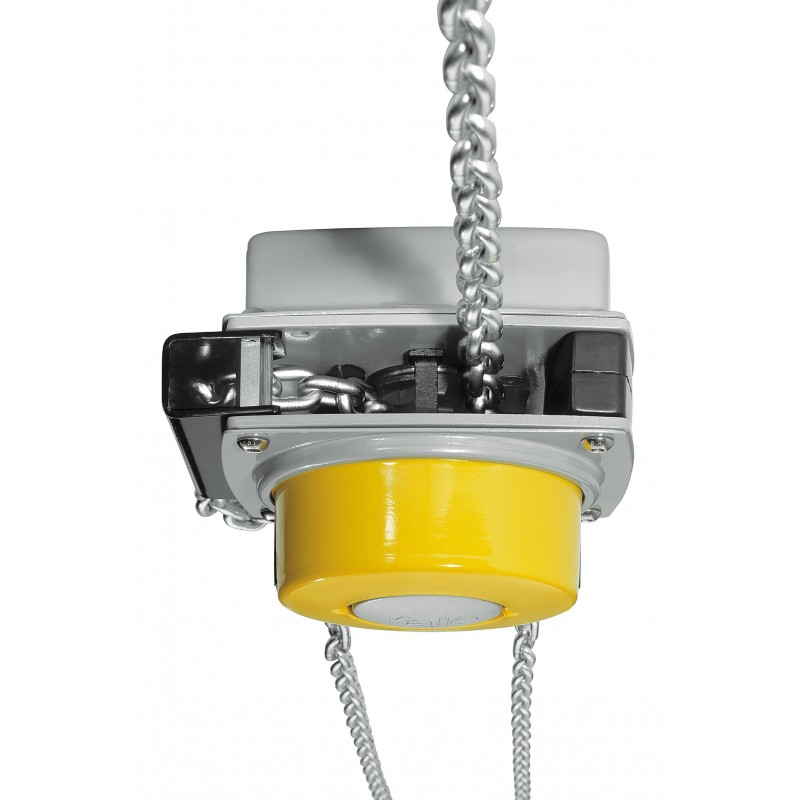

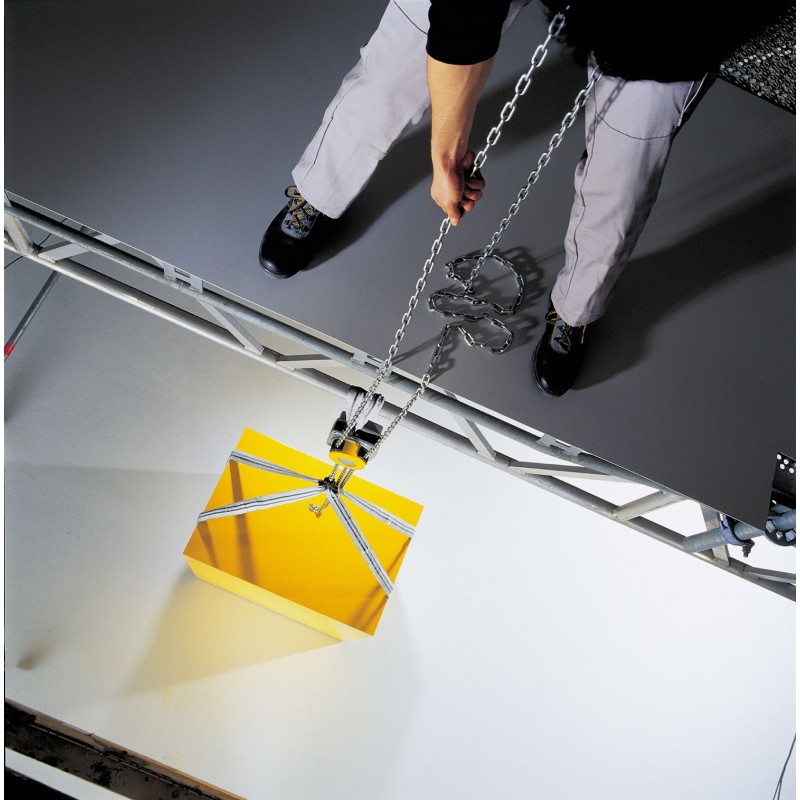

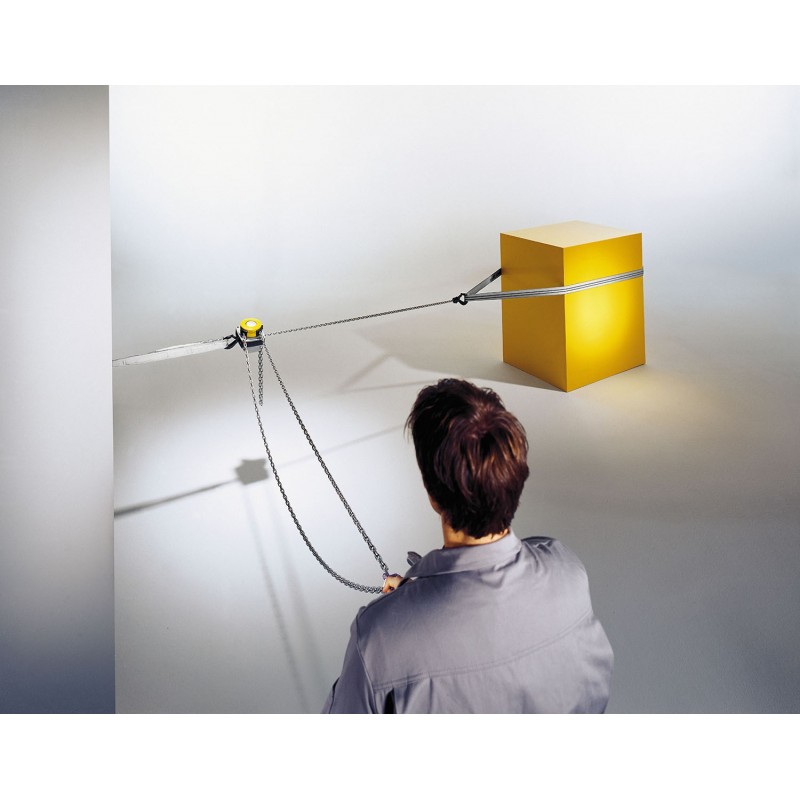

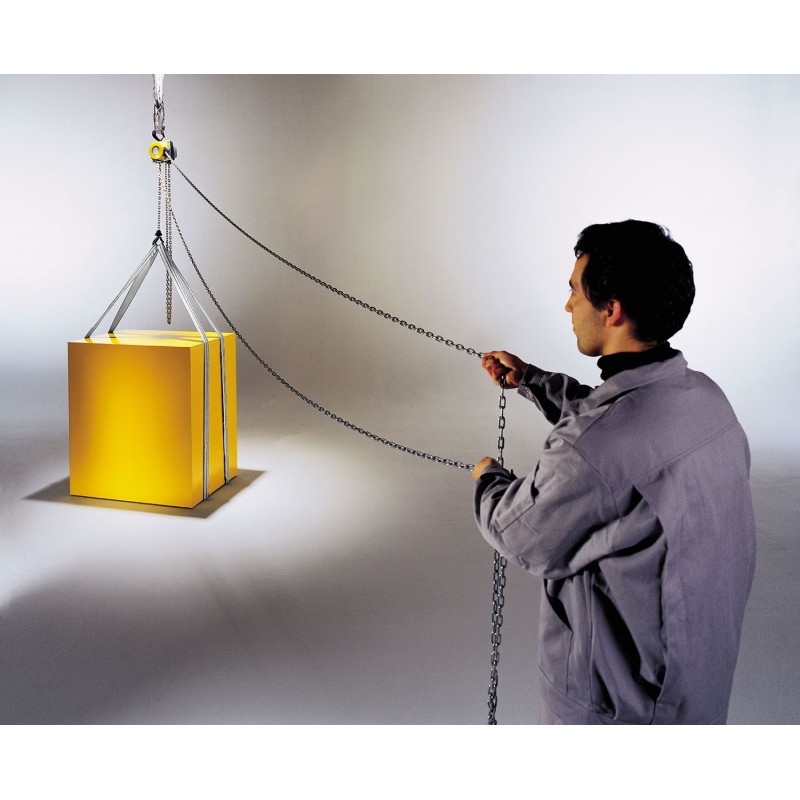

  • The revolutionary 360° rotating hand chain guide allows the operator to work from virtually any position, in confined spaces or above the load. The Yalelift can even be operated from the side of the load which also makes it possible to use the hoist for horizontal pulling or tensioning. Due to the additional flexibility, the operator is no longer forced to work in the danger zone near the load.
  • The brake system is extremely quiet and guarantees operational safety and improved serviceability due to omission of the vulnerable ratchet pawls. All parts are made of high quality materials, additionally zinc-plated or yellow -chromated to increase corrosion prevention.
  • Chain guide and gearbox are almost totally enclosed. Even under the toughest conditions the internal gear-box remains protected.
  • The hardened load sheave with four precision machined pockets ensures accurate movement of the load chain.
  • The surface protected zinc-plated alloy steel load chains fulf il all requirements of current national and international standards and regulations.
  • Drop forged load and suspension hooks that yield under overload ins tead of breaking, are made of high tensile steel. The hooks are fitted with robust safety latches and rotate 360°.

Options

  •  Adjustable overload prevention device.
  •  Stainless steel load and hand chains.
  •  Chain container
  •  Corrosion resistant version
  •  Explosion protection

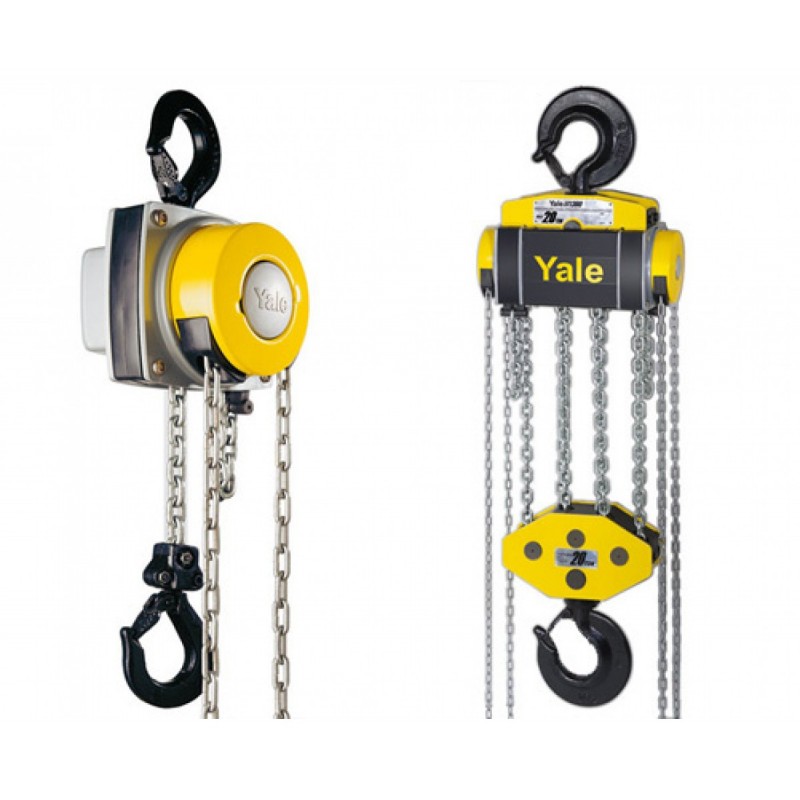

Model Yalelift 360 20 t:

The brake system used in the Yalelift series is also employed in the Yalelift 360 20 t, setting standards in terms of operational safety and serviceability. The brake is extremely quiet and wear resistant. In spite of its high capacity,  the Yalelif t 360 20 t features a compact design.

Features

  •  All components are made of high quality materials, some components are zinc-plated or yellow-chromated for added corrosion protection. This ensures that also heaviest loads are held reliably.
  •  The enclosed robust stamped steel body resists in the toughest conditions and allows outside operation.
  •  The hardened load sheave with five precision machined pockets ensures accurate movement of the load chain.
  •  The low headroom (hook-to-hook dimension 1010 mm) allows maximum use of the lifting height.
  •  The Yalelift 360 20 t is equipped with six chain falls only which results in higher speed and lower weight.

Options

  •  Adjustable overload prevention device.
  • Chain container
  •  Corrosion resistant version
  •  Explosion protection

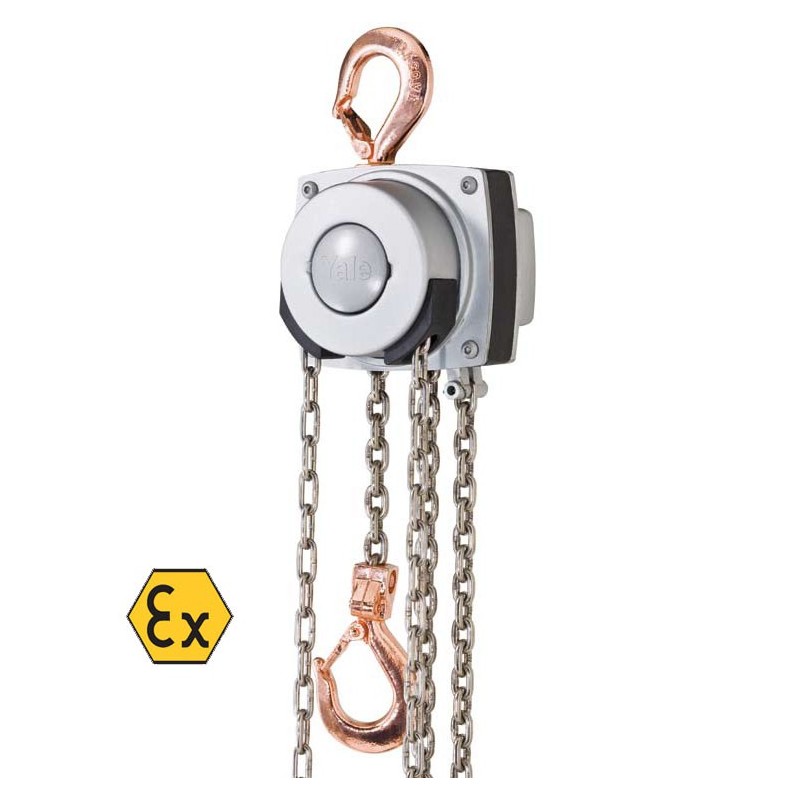

Lanové kladkostroje do výbušného prostředí    Available in explosion proof version.

Uložiť

Uložiť

Uložiť

Uložiť

Uložiť

Uložiť

Uložiť

Uložiť

Product combinations

Model Capacity WLL in kg Number of chain falls
YL500 500 1
YL1000 1 000 1
YL2000 2 000 1
YL3000 3 000 1
YL5000 5 000 2
YL10000 10 000 3
YL20000 20 000 6
