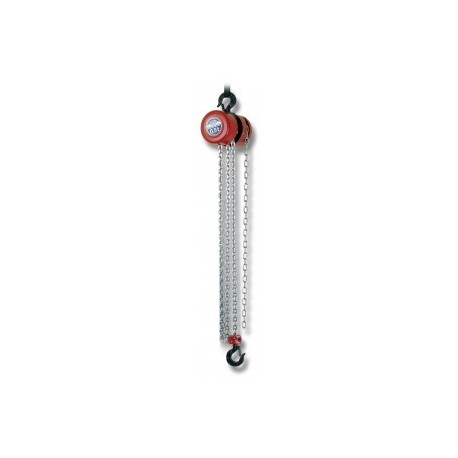

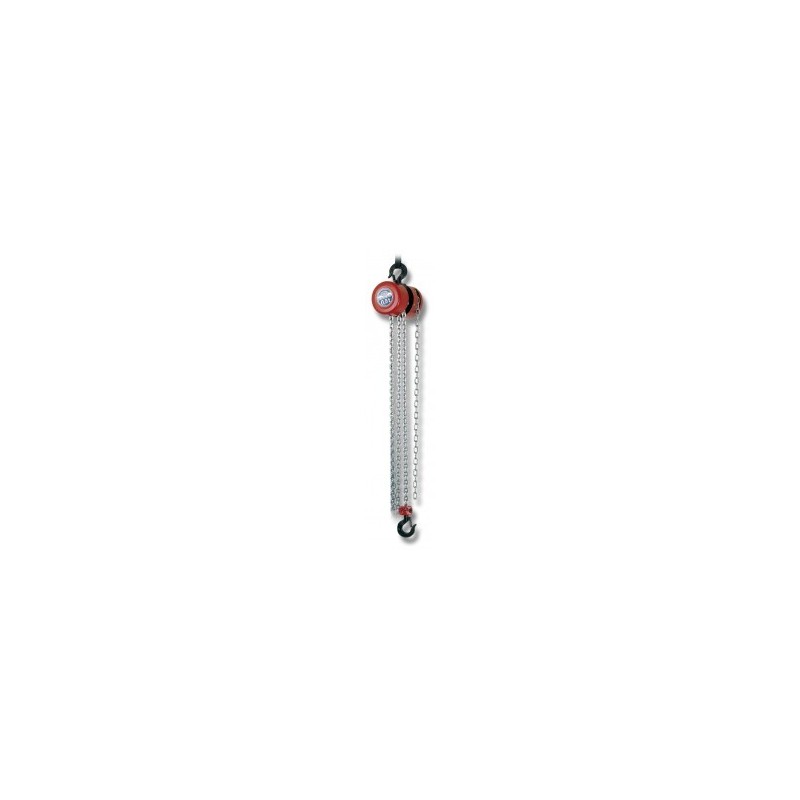

BRANO Z100/0,25T-10T Chain block

Chain block Z100 – lifting capacity 0,25t – 10t

More details

Price:

on demand

More info

Characteristics:

  • robust, heavy-duty and purposeful construction with safety elements  corresponding with theDirective 2006/42/EC
  • simply operated
  • minimum maintenance demands
  • up to 10t  choice of lift length from 3-12m (longer lifts must be consulted with producer)
  • also in variant for explosion hazard environment (marking NEXP)
  • can be equipped with collecting basket for load chain

Use:

  • for lifting and lowering of loads in places without any other source of energy or where the manual use is economically favourable
  • as a backup for workplace where is necessary to provide the manipulation with the load when power fails
  • as a service hoist for installation and maintenance work
  • variant NEXP – for explosion hazard environment for groups I M2; II 2G T5
  • corresponding with the Directive of European parliament and Council 94/9/EC

Product combinations

Model Capacity WLL in kg
Z100-0,25 250
Z100-0,5 500
Z100-1 1 000
Z100-1,6 1 600
Z100-3,2 3 200
Z100-5 5 000
Z100-7,5 7 500
Z100-10 10 000
