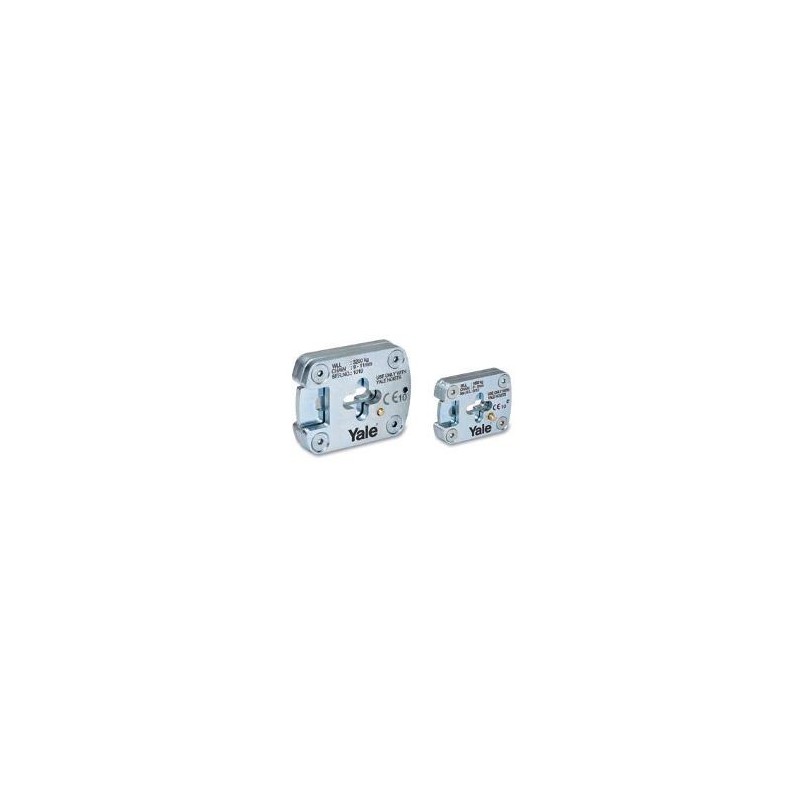

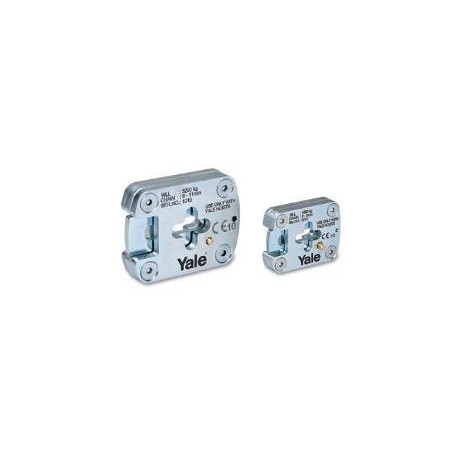

YALE YKST Chain stop
Yale YKST chain stops have been developed for Yale hoists with round-section steel chains as an additional protection against falling.
Price:
on demand
More info
- Yale YKST chain stops have been developed for Yale hoists with round-section steel chains as an additional protection against falling.
- The two available sizes cover two different ranges of chain sizes.
- The load capacity indicated on the chain stop is the maximum working load limit (rated load) that must not be exceeded by the respective hoist used.
- The chain stop can be moved along the load chain of the hoist by actuating the safety device and pressing the slider at the same time. When the slider is released, it automatically locks in the load chain and the safety lock blocks the system.
- In order to ensure safe functioning of the chain stop, the distance between the chain stop and the hoist must not exceed 15 - 20 mm. After the use of the hoist, the chain stop must be repositioned, as required.
Product combinations
| Model | Capacity WLL in kg | Type | Chains, mm |
|---|---|---|---|
| YKST 7,5 | 750 | Roller chain | 5/8" x 3/8" |
| YKST 15 | 1 500 | Roller chain | 1" x 1/2" |
| YKST 16 | 1 600 | Round steel chain | 5,6 - 8 |
| YKST 32 | 3 400 | Round steel chain | 9 - 11 |
| YKST 34 | 3 400 | Roller chain | 1 1/4" x 5/8" |
