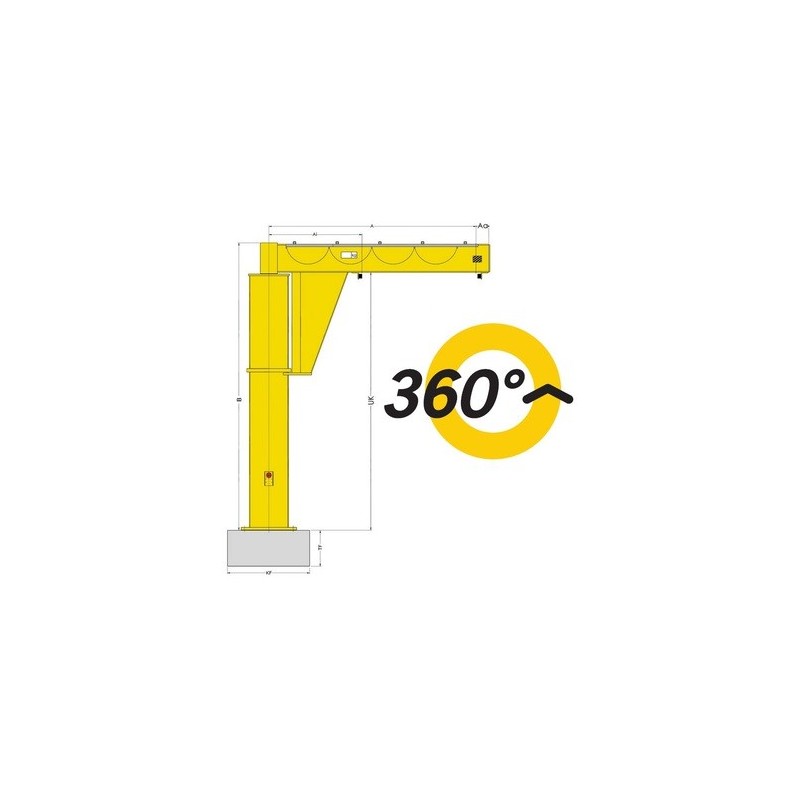

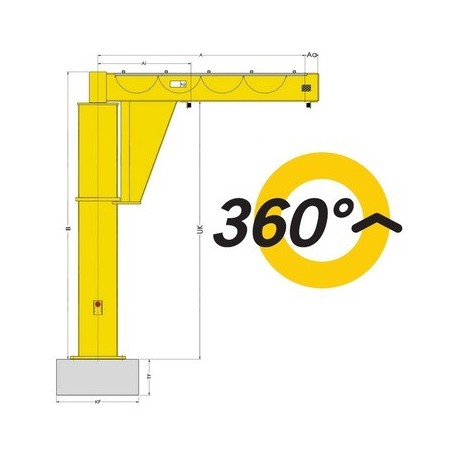

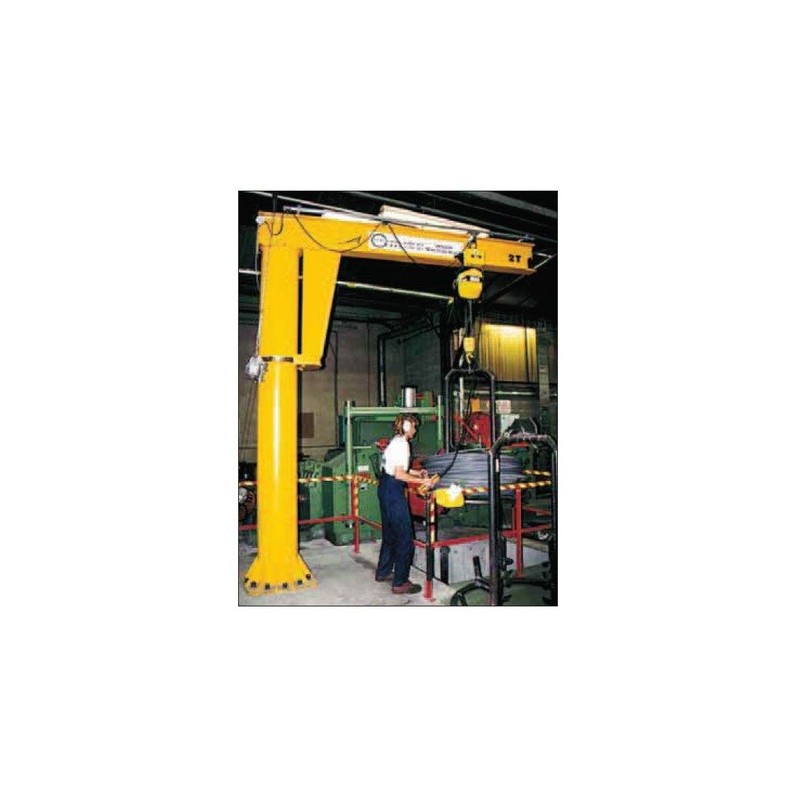

YALE PFP Floor-mounted jib crane

Elevated boom with optimal height, slewing range 360°

Heavy, robust twist-free steel girder construction. Structural steel crane-boom. Compact rotating head for ideal construction dimensions; access from above ensures easy assembly. The boom is fitted with a roller bearing, pillar made from reinforced steel pipe.

More details

Price:

on demand

More info

Heavy, robust twist-free steel girder construction. Structural steel crane-boom. Compact rotating head for ideal construction dimensions; access from above ensures easy assembly. The boom is fitted with a roller bearing, pillar made from reinforced steel pipe. Depending on the size of the hoist and in combination with festooned power cables, restrictions in the slewing range of the boom may be possible.



Mounting

  • Base flange with anchor bolts and template.
  • Anchoring the dowel base plate (bolted) including mortar cartridges, anchor studs (complete with nuts, locknuts and washers).



Scope of delivery

  • The electrical system is equipped with a lockable main switch, roundcable power supply with cable support pipes for booms up to 4000 mm.
  • From 4500 mm upwards, the boom is equipped with a festooned cable power supply. Due to cable sag on low cranes, we recommend the use of festooned cables even on short booms.
  • Trolley stoppers at the front and at the back.
  • Cranes are supplied with an operating manual and complete manufacturer‘s documentation.



Options

  • Electrically driven slewing gear.
  • Slew stoppers (buffers) can be fitted on building site for a pre-determined fixed slewing range.
  • Limit switches to limit the boom slewing range (before hitting a fixed object the motor switches off automatically).
  • Increased paint layer (120 μm) or hot-dip galvanisation for outdoor use.
  • Manual locking device, to hold the boom in a fixed position (wind protection).
  • Hoist cover for outdoor use. Further capacities and boom lengths on request.

Product combinations

Model Capacity WLL in kg
PFP 500 500
PFP 800 800
PFP 1000 1 000
PFP 1600 1 600
PFP 2000 2 000
PFP 2500 2 500
PFP 3200 3 200
