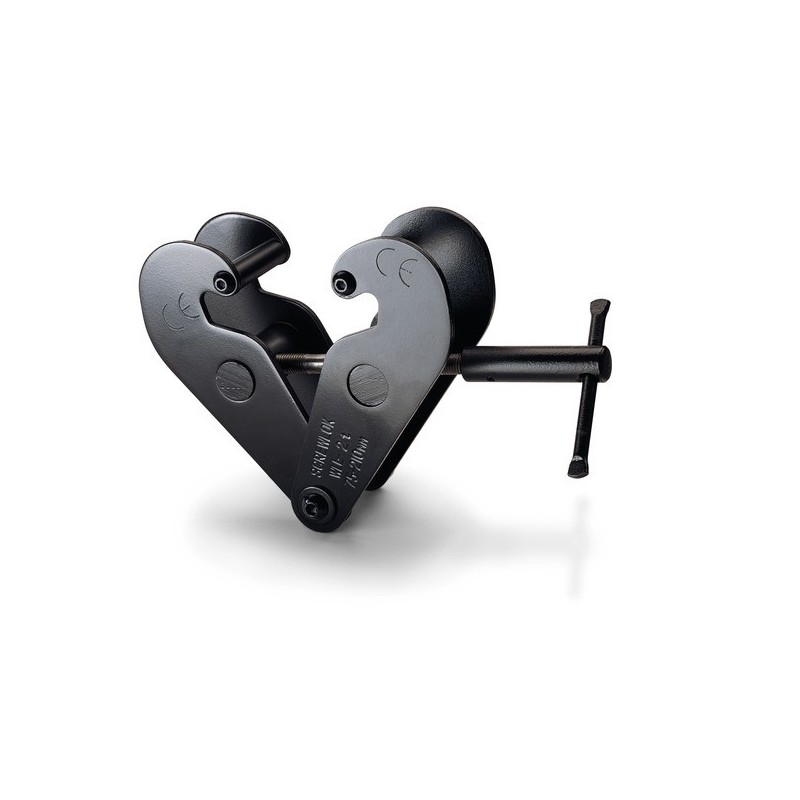

YALE YC Beam clamp
Capacity 1 000 - 10 000 kg

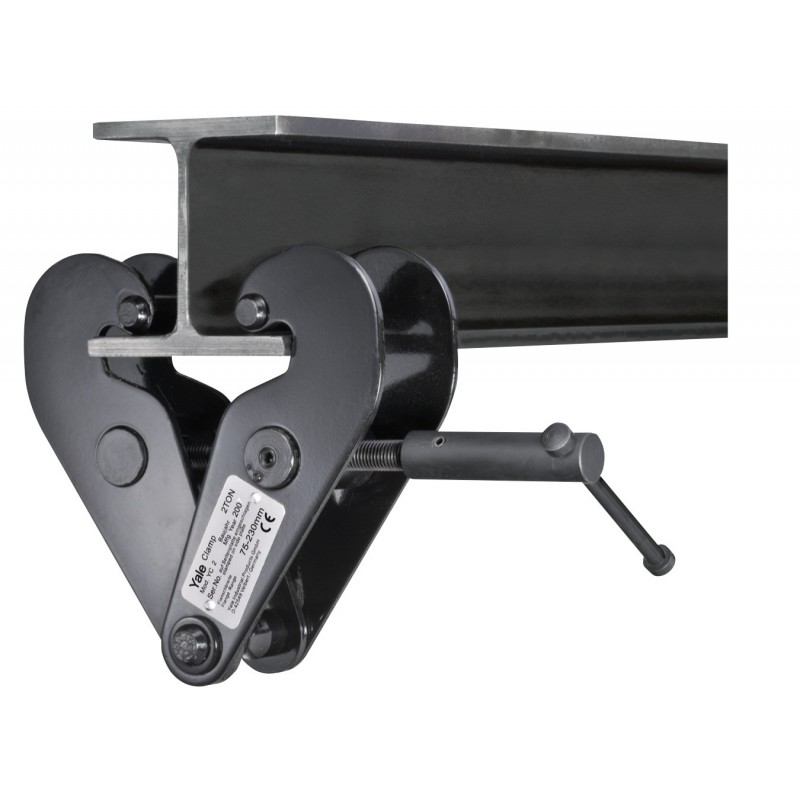

Provides a quick and versatile rigging point for hoisting equipment, pulley blocks or loads. Flexible application due to wide adjustment range. The central threaded spindle allows easy attachment and a safe and secure grip. The spindle can be secured agains t loosening.
More info
Provides a quick and versatile rigging point for hoisting equipment, pulley blocks or loads. Flexible application due to wide adjustment range. The central threaded spindle allows easy attachment and a safe and secure grip. The spindle can be secured agains t loosening.
Options
- Can be supplied with shackle (other jaw capacities).
Product combinations
| Model | Capacity WLL in kg | Jaw-opening, mm |
|---|---|---|
| YC1 | 1 000 | 75-230 |
| YC2 | 2 000 | 75-230 |
| YC3 | 3 000 | 80-320 |
| YC5 | 5 000 | 90-320 |
| YC10 | 10 000 | 90-320 |
