YALE TCK - C Hook
Capacity 500 - 10 000 kg

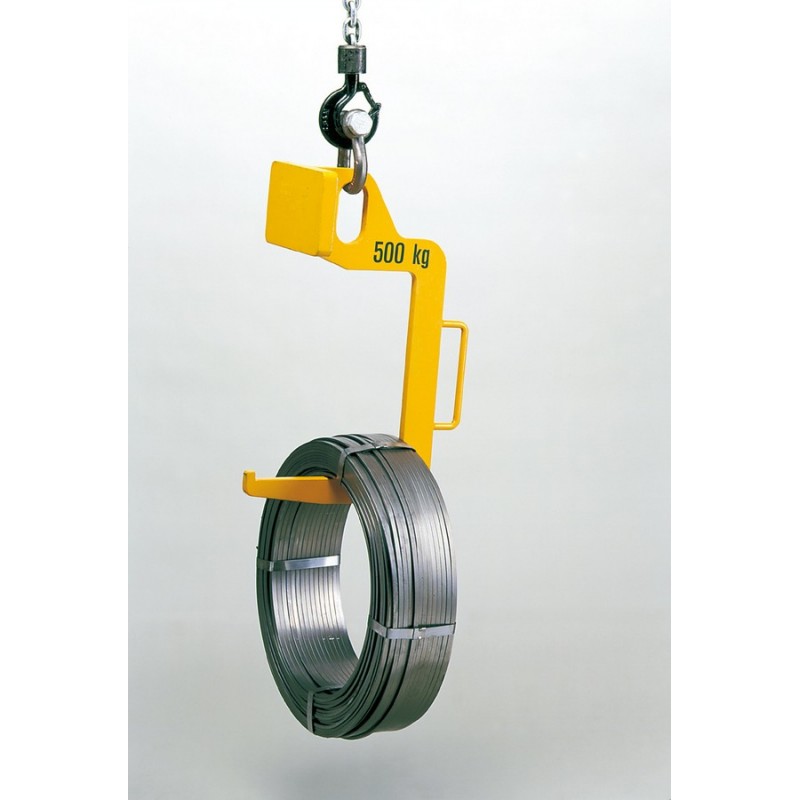

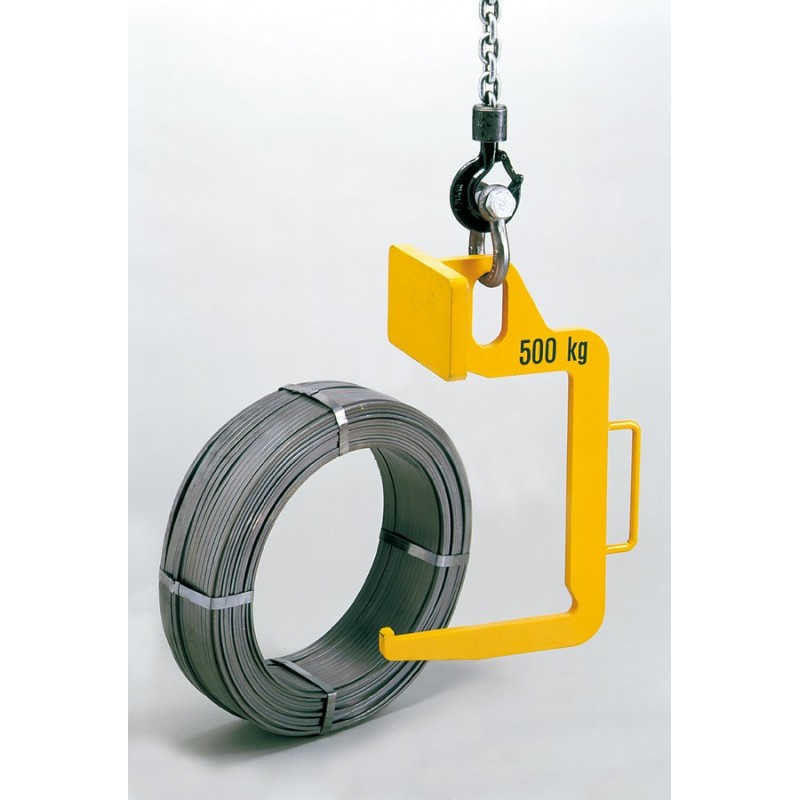

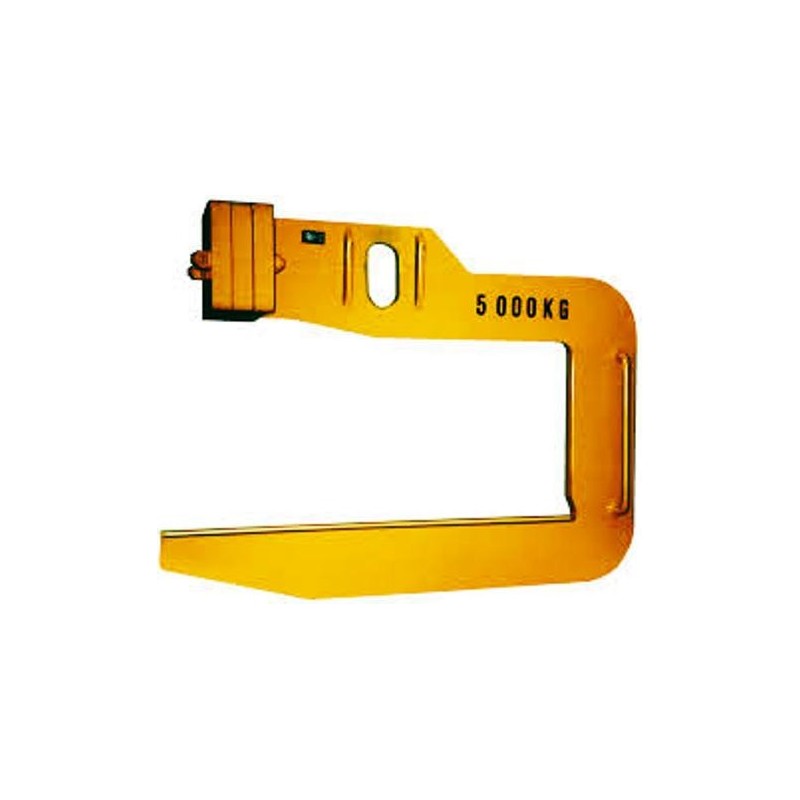

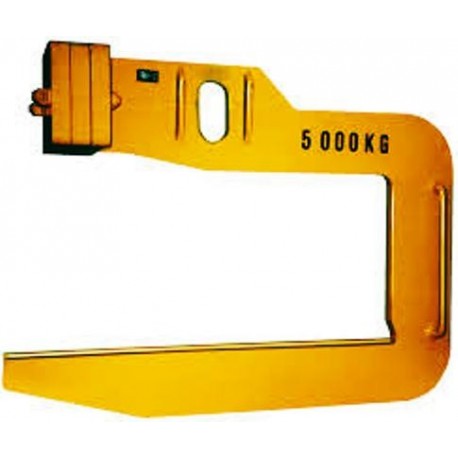

Coils, rolls, rings and similar items are transported safely with the Tigrip C-Hooks. Tine length and usable height with the most frequently encountered coil sizes are listed in the table below.
Price:
on demand
More info
Coils, rolls, rings and similar items are transported safely with the Tigrip C-Hooks.
- Tine length and usable height with the most frequently encountered coil sizes are listed in the table below.
- Other working loads, measurements, and models, such as C-Hooks with automatic balancing device, are available on request.
Product combinations
| Model | Capacity WLL in kg | Weight |
|---|---|---|
| TCK 0,5/300 | 500 | 21 kg |
| TCK 0,5/800 | 500 | 46 kg |
| TCK 0,5/500 | 500 | 30 kg |
| TCK 1,0/300 | 1 000 | 28 kg |
| TCK 1,0/800 | 1 000 | 95 kg |
| TCK 1,0/500 | 1 000 | 40 kg |
| TCK 2,0/300 | 2 000 | 45 kg |
| TCK 2,0/1000 | 2 000 | 180 kg |
| TCK 2,0/800 | 2 000 | 140 kg |
| TCK 2,0/500 | 2 000 | 90 kg |
| TCK 3,0/800 | 3 000 | 165 kg |
| TCK 3,0/500 | 3 000 | 127 kg |
| TCK 3,0/300 | 3 000 | 68 kg |
| TCK 3,0/1000 | 3 000 | 215 kg |
| TCK 5,0/1000 | 5 000 | 286 kg |
| TCK 5,0/800 | 5 000 | 238 kg |
| TCK 5,0/500 | 5 000 | 184 kg |
| TCK 5,0/1250 | 5 000 | 364 kg |
| TCK 7,5/1000 | 7 500 | 520 kg |
| TCK 7,5/800 | 7 500 | 390 kg |
| TCK 7,5/1500 | 7 500 | 767 kg |
| TCK 7,5/1250 | 7 500 | 650 kg |
| TCK 10,0/1000 | 10 000 | 772 kg |
| TCK 10,0/1500 | 10 000 | 980 kg |
| TCK 10,0/1250 | 10 000 | 810 kg |
