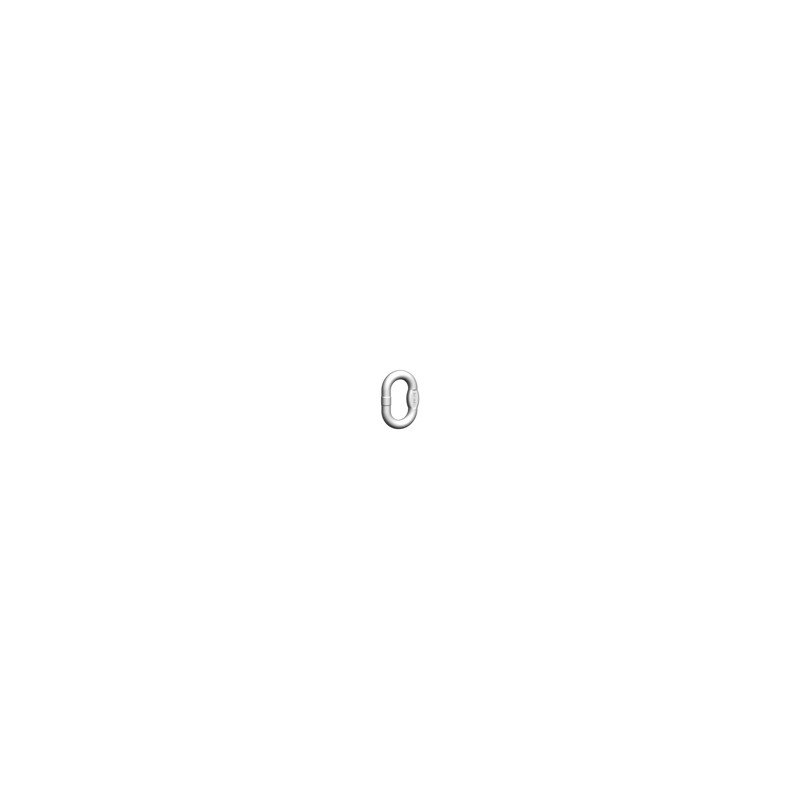

PEWAG BWI Transition link

A higher resistance to acids and caustics compared to the standard transition links G8, G10 and G12 is just one of the many benefits that make this stamped transition link truly remarkable.

More details

Price:

on demand

More info

A higher resistance to acids and caustics compared to the standard transition links G8, G10 and G12 is just one of the many benefits that make this stamped transition link truly remarkable.
The use of high-grade stainless steel also ensures that this electrically welded transition and securing link will never rust.
The stamp and the CE mark ensure that the product is clearly identifiable.
The transition link is part of welded assemblies, may also be used as an end link and is tested at 100 % of its maximum load capacity.

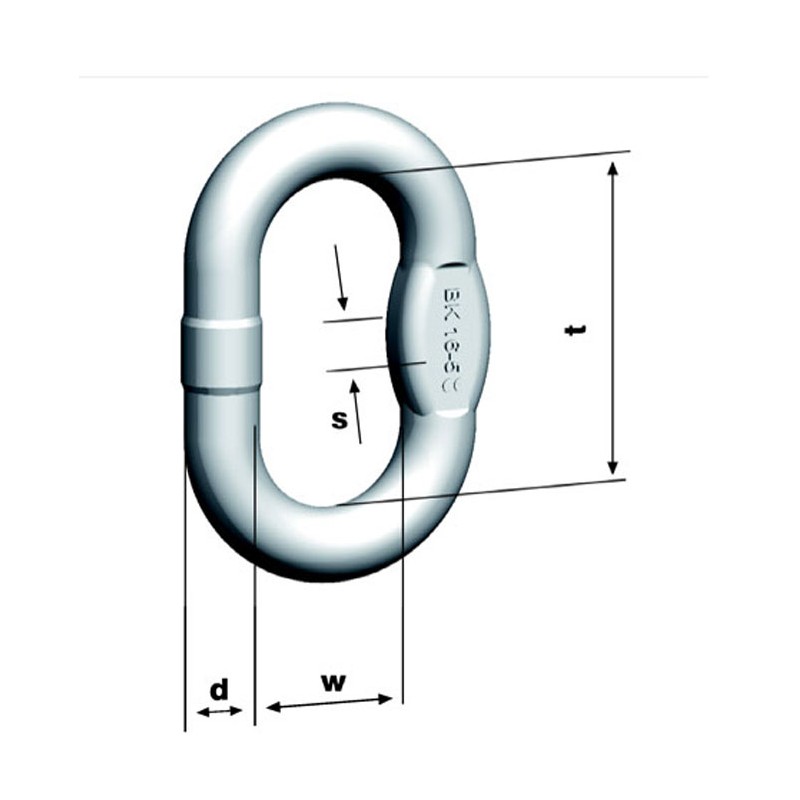

Its dimensions are similar to DIN 5688-1.
The outstanding quality of this transition link is also reflected in its wide range of possible applications: It may be used as a connecting link for assembling I- to IV-strand assemblies in welded systems as well as an end link.
In addition, it is ideally suited for use in water and wastewater applications and can also be used in connection with chemicals and food products; however, restrictions will apply.Custom-made, also with flattening available.

Product combinations

Model Capacity WLL 0° - 45° (kg)
BWI 7-6 900
BWI 9-6 1 250
BWI 10-6 1 600
BWI 13-6 2 500
BWI 16-6 4 250
BWI 20-6 6 300
BWI 22-6 8 000
BWI 26-6 10 070
BWI 32-6 12 000
