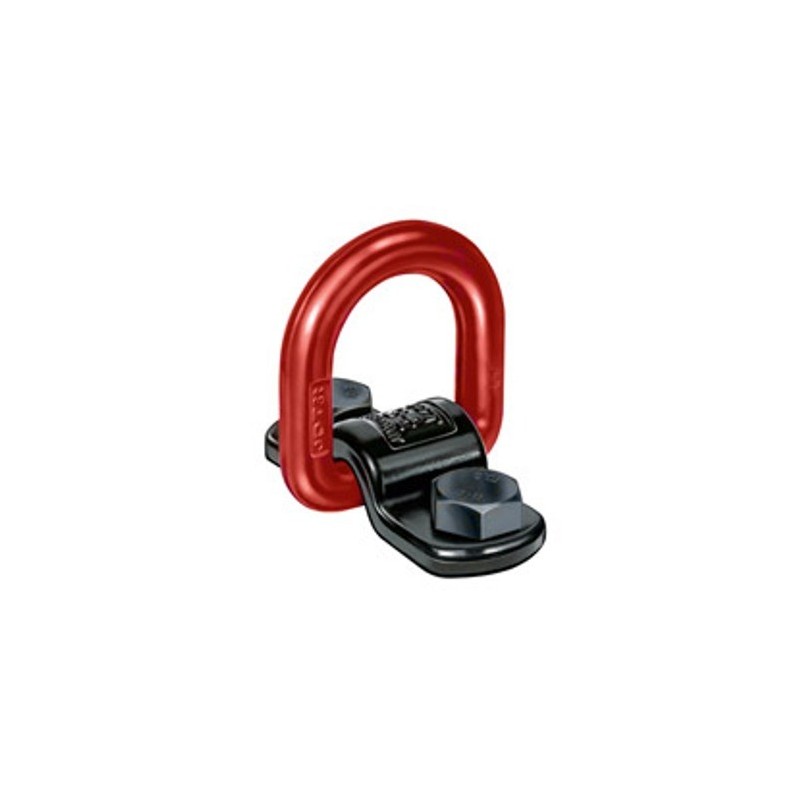

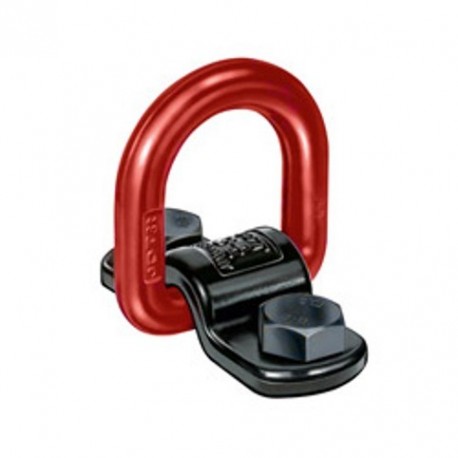

TAPG-S Attachment-point, bolt-on type - JDT
Attachment-point, bolt-on type, in working load limits of 3 - 8 t.
- Compact design
- Secured four times against breakage
- Working range 120°
- Bolt on plate also serves as marking stencil
Price:
on demand
More info
Attachment-point, bolt-on type, in working load limits of 3 - 8 t.
- Compact design
- Secured four times against breakage
- Working range 120°
- Bolt on plate also serves as marking stencil
- The D-link must be able to move freely.
- The load take-up may not be supported on edges or on the sling point
- Working range 120°
Product combinations
| Model | Capacity WLL in kg | Diameter D&E | Thread length, mm |
|---|---|---|---|
| TAPG-S 3 | 3 150 | M20 | 45 |
| TAPG-S 5 | 5 300 | M24 | 55 |
| TAPG-S 8 | 8 000 | M27 | 65 |
