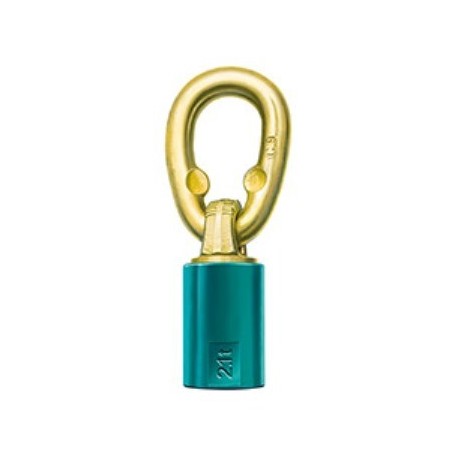

> >>>THEIPA Point - F The advanced generation of attachment swivels - JDT

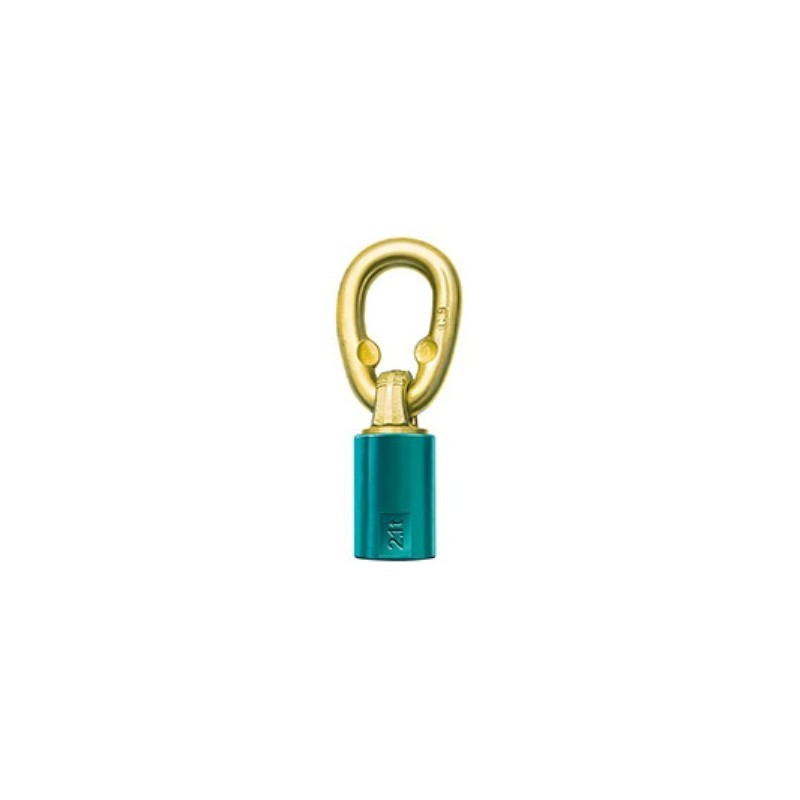

THEIPA Point - F The advanced generation of attachment swivels - JDT View larger

THEIPA Point - F The advanced generation of attachment swivels - JDT

The THEIPA Point-F with an internal thread has been newly included in the range. All of the THEIPA Point’s advantages have also been considered in this case. The thread’s depth is 1.25 times its diameter as a rule. The stamped WLL applies to the kind of attachment by 90°. Bolts of the quality class 10.9 crack- tested are permitted as connecting elements.

More details

Price:

on demand

More info

The THEIPA Point-F with an internal thread has been newly included in the range. All of the THEIPA Point’s advantages have also been considered in this case.

  • The thread’s depth is 1.25 times its diameter as a rule.
  • The stamped WLL applies to the kind of attachment by 90°.
  • Bolts of the quality class 10.9 crack- tested are permitted as connecting elements.
  • Different threaded versions and lengths can be supplied on request.
  • Secured four times against breakage in all load directions.

Product combinations

Model Capacity WLL in kg Thread Thread length, mm
TP-F 0,5 500 M12 15
TP-F 1 1 000 M16 20
TP-F 1,7 1 700 M20 25
TP-F 2,1 2 100 M24 30
TP-F 3,2 3 200 M30 40
TP-F 5 5 000 M36 45
