VWBG-V  Load ring, UNC thread - RUD View larger

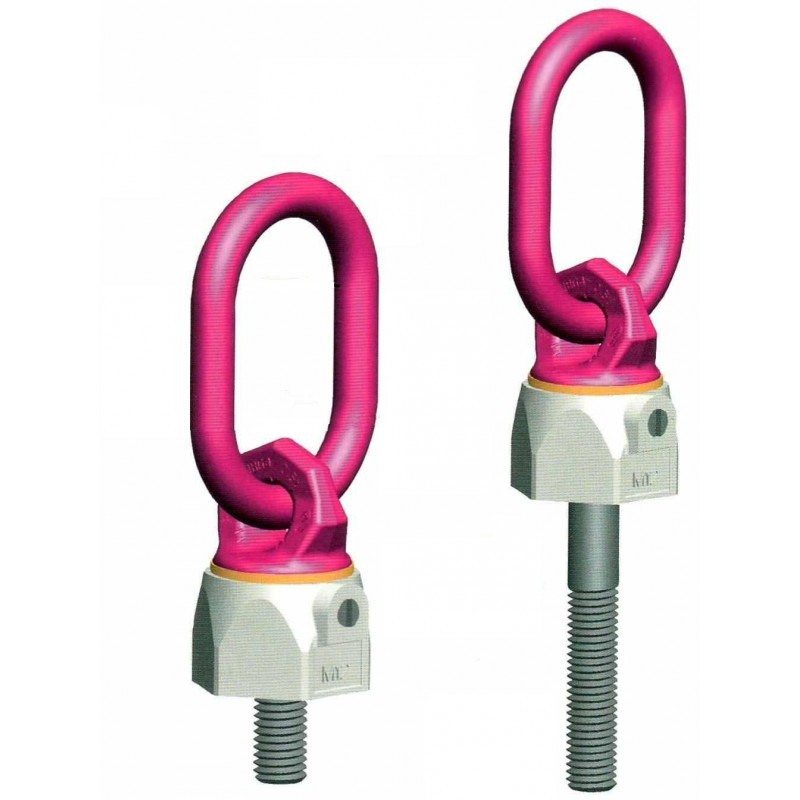

VWBG-V Load ring, UNC thread - RUD

Suitable for all loads which swivel and tilt. Can be loaded in all directions with a 4 : 1 design factor.  Swiveling under full load is permissible provided the inclination angle is not perpendicular to the screw - in direction. Not suitable for permanent swiveling under full load. Can also be supplied with variable (vario) thread lengths. Easy assembly due to the single threaded tapping.

More details

Price:

on demand

More info

Suitable for all loads which swivel and tilt. Can be loaded in all directions with a 4 : 1 design factor.

  • Swiveling under full load is permissible provided the inclination angle is not perpendicular to the screw - in direction. Not suitable for permanent swiveling under full load.
  • Can also be supplied with variable (vario) thread lengths. Easy assembly due to the single threaded tapping.
  • High tensile, inspected suspension ring according to EN 1677 -4.

Product combinations

Model Capacity WLL in kg Thread The standard length of thread, mm
VWBG-V 0,3 M8 300 (400) M8 13
VWBG-V 0,45 M10 450 (600) M10 17
VWBG-V 0,6 M12 600 (700) M12 21
VWBG-V 1 M14 1 000 (1 250) M14 21
VWBG-V 1,3 M16 1 300 (1 500) M16 25
VWBG-V 1,8 M18 1 800 (2 000) M18 27
VWBG-V 2 M22 2 000 (2 500) M22 33
VWBG-V 2 M20 2 000 (2 500) M20 33
VWBG-V 3,5 M24 3 500 (4 000) M24 40
VWBG-V 3,5 M27 3 500 (4 000) M27 40
VWBG-V 5 M30 5 000 (6 000) M30 50
